Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale

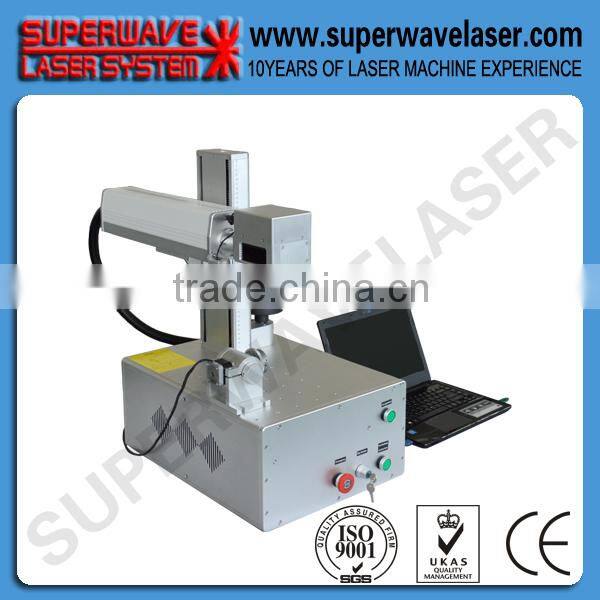

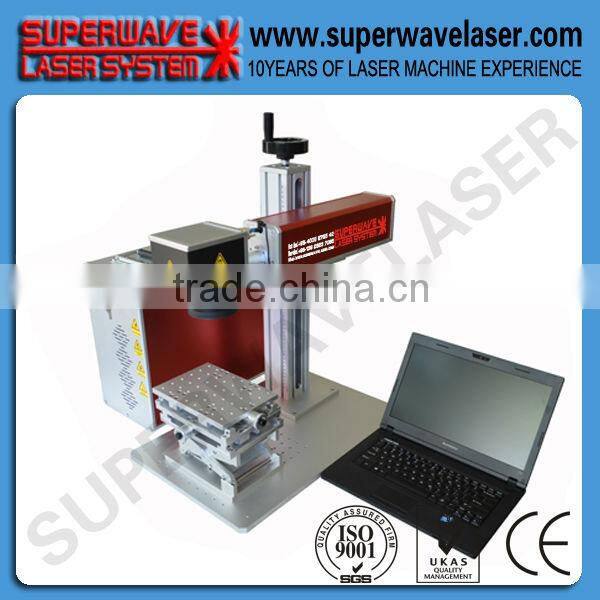

Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale photo-1
Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale photo-2
Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale photo-3
Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale photo-4

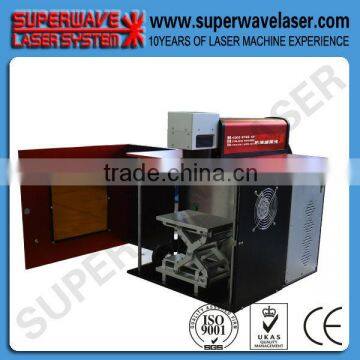

Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale photo-5
Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale photo-6
US$ 5,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type Fiber Laser
CNC or Not Yes
Cooling Mode Air Cooling
Control Software AUTOCAD,CORELDRAW,PS
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy ±0.002mm
Place of Origin Guangdong, China
Brand Name SUPERWAVE
Model Number SW-FLM10/20/30/50/100
Power(W) 10W/20W/30W/50W/100W
Certification CE, ISO, Other, CE, ISO, FDA
After-sales Service Provided Engineers available to service machinery overseas

Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale





Product Description



Advantage



Fiber laser marking machine are third-generation laser marking systems successfully researched and



developed by the company by employing cutting-edge laser technologies in the world. The optical fiber laser is



employed for laser output, and super high-speed scanning system is employed to achieve marking. The



optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed.



The whole system is small in size, with high beam output quality, high reliability, super long service life, and s



aving energy. The markers are used for fields with higher requirements in depth, smoothness and precision.





Features



1.Fast processing speed-Its processing speed is 2-3 times of traditional laser marking machine.



2.Good Stability and Free Maintenance,No need maintenance for laser device, also not need adjust or clean the lens.



3.Long Using Time -the average using time more than 100,000 hours.



4.User-friendly interface, easy operation



5.Applicable to a variety of materials such as nylon, ABS,PVC, PES, metal, titanium, copper etc





Applications



Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.





Technical parameter

ModelSW-FLM Fiber laser marker series
Mean laser power10W/20W/30W/50W/100W
Laser wavelength1064nm
Laser Repetition frequency20-100KHz
Marking area110×110mm
Marking size optional50x50mm,70x70mm,150x150mm,175x175mm,200x200mm
Marking depth≤0.8mm
Linear speed≤10000mm/s
Min. line width0.01mm
Min. letter0.2mm
Repeatability±0.002mm
Supported formatSupport AI,PLT, DXF, BMP,JPG file, etc.
Power supplyAC220V±10%/50Hz-60Hz, AC110V optional.
Power consumption0.5KW
Laser coolingAir cooling
Host dimension(L*W*H)750X240X570mm(length, widthandheight)

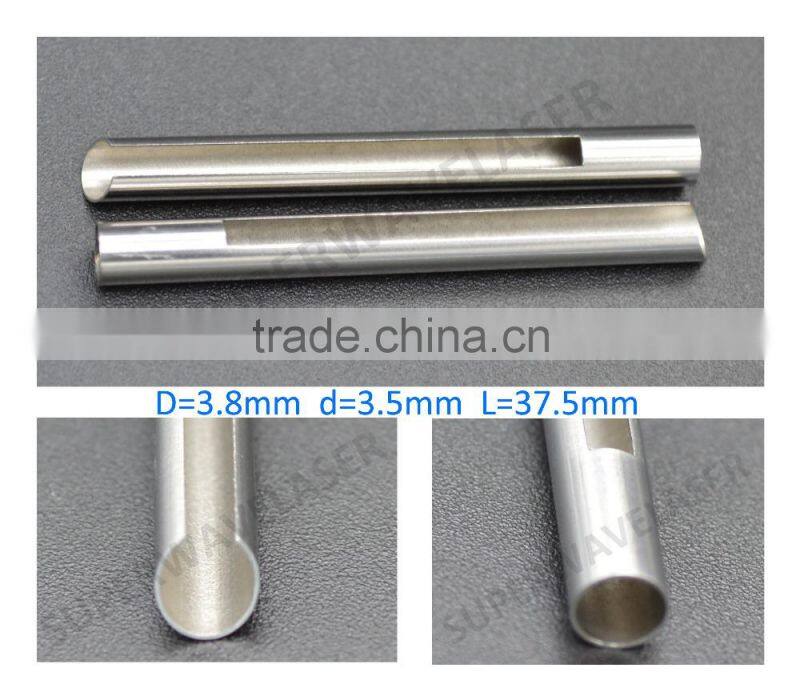

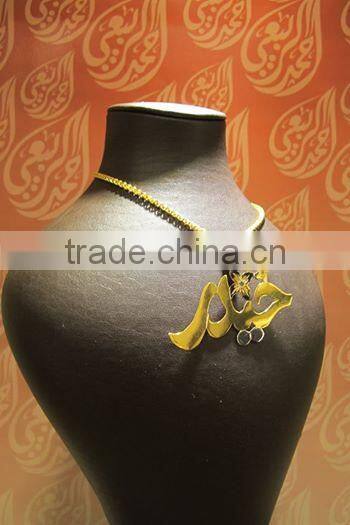

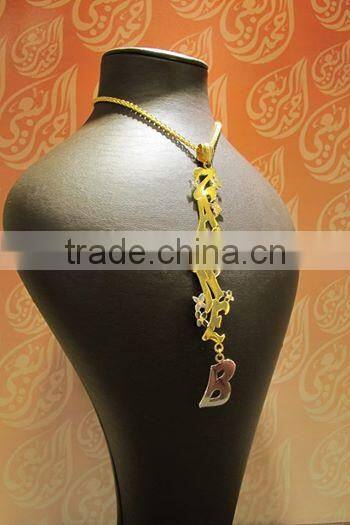

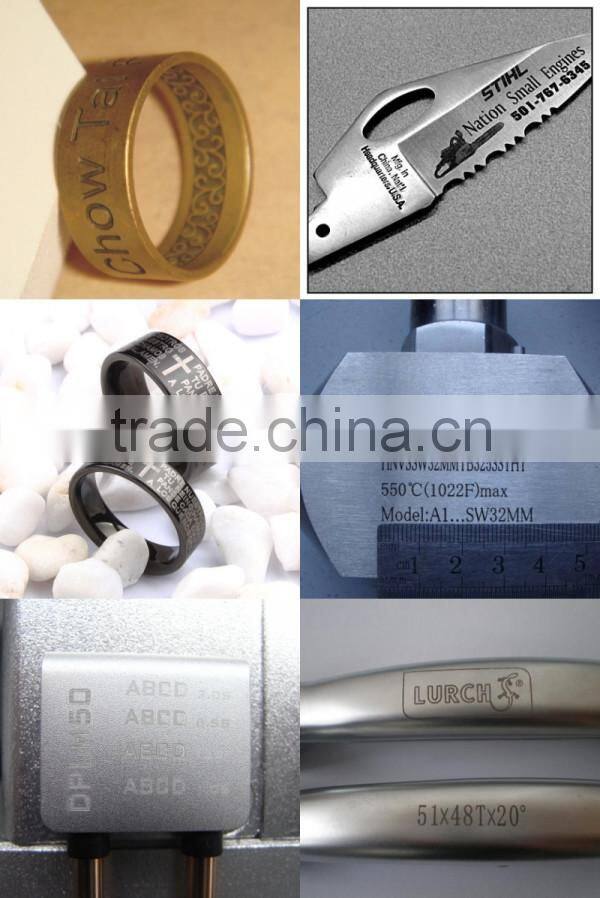

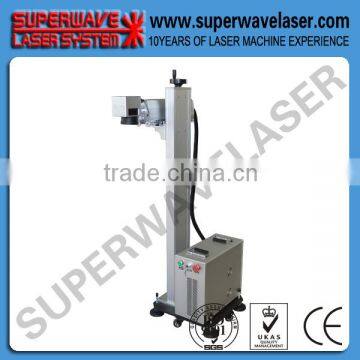

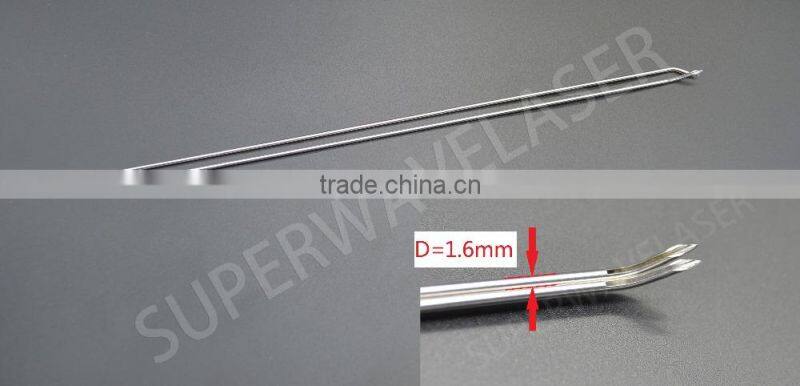

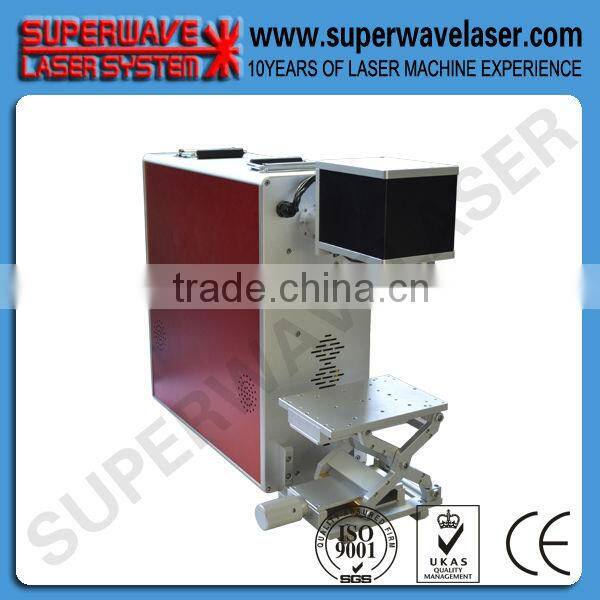

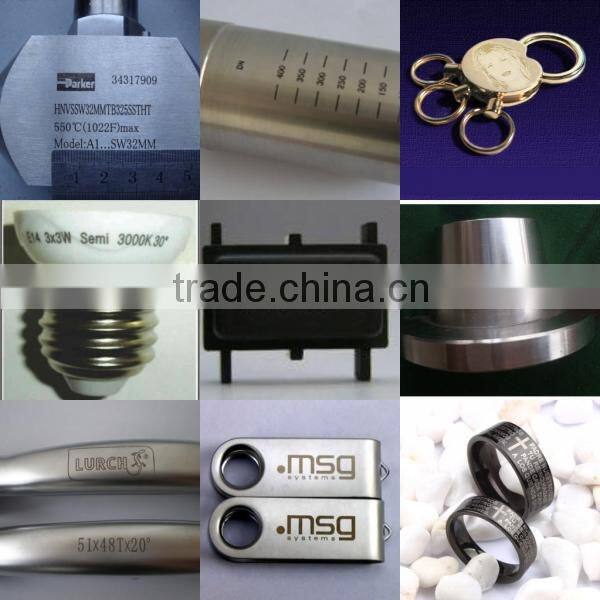

Machine&Sample



 Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For SaleGold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale

Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale

Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale

Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For SaleGold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For SaleGold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale



 Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For SaleGold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale







 Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale







Our Services







After-sale services







  1. International quality certificate, FDA,CE,ISO9001



  2. 100,000 hours lifetime, free maintenance.



  3. Engineers available to service machinery overseas.



  4. Free training for machine installation and operation.



  5. Free samples marking of customer provided.



  6. 24 hours technician professional and timely after-sale service.







Cetificate



Gold Jewelry Fiber Laser Marking Machine Price/Small Desktop Fiber Laser Engraving Cutting Machine For Sale



FAQ







FAQ



 1.ARE ALL INCOTERMS CAN SUPPORT?



   YES, MEET CUSTOMER'S REQUIREMENT



2.HOW LONG THE WARRENTY  IS



   NORMAL IS ONE YEAR, PERIOD CAN EXTEND



 3.HOW TO OPERATE THE MACHINE



  THERE ARE OPERATION INSTRUCTION AND VIDEO INTERPRETATION





ANY QUESTION WE WILL PROVIDE A SATISFACTORY REPLY
