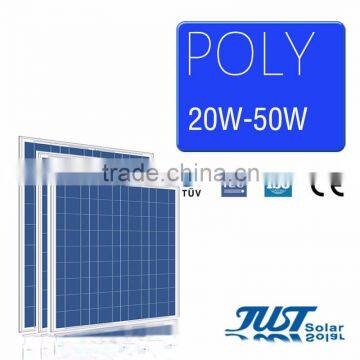

Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home

Shanghai Just Solar Co., Limited
Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home thumbnail-1
Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home thumbnail-2
Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home thumbnail-3
Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home photo-1
Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home photo-2
Solar Panel Wholesale 20-50w Polycrystalline Solar Panels for Home photo-3
US$ 0.4 - 0.5 MOQ: 1 Watt
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Just Solar
Model Number:
JST20-50P(60)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Just Solar
Model Number JST20-50P(60)
Type Other, Solar Panel 20-50watt
Product Description
Dimensions
IV-Curves

Note!

Please contact support for technical support. The actual transactions will be subject to the contracts. This parameters are for reference only and it is not a part of the contracts. The specifications are subject to change without prior notice.

Technical Data
Model Type
JST20P(36)
JST30P(36)
JST40P(36)
JST50P(36)
Peak Power
20W
30W
40W
50W
Module Efficiency
11.00%
13.40%
14.00%
17.40%
Maxi Power Voltage
18V
18V
18V
18V
Maxi Power Current
1.12A
1.67A
2.23A
2.78A
Open Circuit Voltage
22.5V
22.5V
22.5V
22.5V
Short Circuit Current
1.17A
1.75A
2.34A
2.91A
Power Tolerance
0 to+5W
Mechanical Data
Cell Type
Polycrystalline  156x156mm
Number of Cells
36
Glass
High Transmission,Low Iron,Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP67rated MC4 compatible
Dimension
500*360*25mm
430*520*35mm
550*520*35mm
550*520*35mm
Weight
2.1kg
2.6kg
2.9kg
2.9kg
Payment Terms




Payment Terms


T/T
FOB

30% T/T in advance, paid the balance before shipment
EXW
CIF
30% T/T in advance, paid the balance against copy of B/L
CFR(C&F)
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Western Union
Amount lower than 53000usd
Delivery Time
10~15 days after receiving payment for one container
Packing
Packing Information
Container
20GP
40GP
40HP
Pieces per Pallet
26
26
26
Pieces per Container
356
728
812
Shipping
By Sea
Delivery from Shanghai, Yiwu and Ningbo seaport
By Air
Departure from Shanghai Pudong Airport
By Express
Post by DHL, EMS, UPS, TNT.
