Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Brackets > Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy

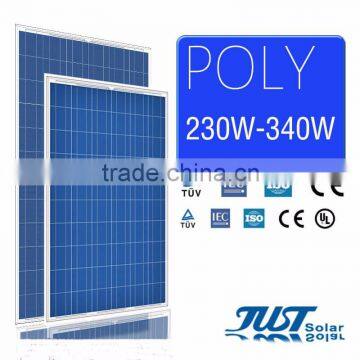

Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy

Shanghai Just Solar Co., Limited
Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy thumbnail-1
Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy thumbnail-2
Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy thumbnail-3
Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy photo-1
Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy photo-2
Poly Panel Solar 230-340w for for Home Flexible Solar Panel Solar Energy photo-3
US$ 0.4 - 0.5 MOQ: 1 Watt
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Just Solar
Model Number:
JST230-340P(60)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Just Solar
Model Number JST230-340P(60)
Type Other, Solar Panel 230-340 watt
Product Description
Dimensions
IV-Curves

Note!

Please contact support for technical support. The actual transactions will be subject to the contracts. This parameters are for reference only and it is not a part of the contracts. The specifications are subject to change without prior notice.

Technical Data
Model Type
JST230P(60)
JST240P(60)
JST250P(60)
JST260P(60)
JST270P(60)
Peak Power
230W
240W
250W
260W
270W
Module Efficiency
14.20%
14.80%
15.40%
16.00%
16.60%
Maxi Power Voltage
30V
30.3V
30.6V
30.9V
31.2V
Maxi Power Current
7.67A
7.92A
8.17A
8.42A
8.66A
Open Circuit Voltage
37.1V
37.4V
37.7V
38.1V
38.4V
Short Circuit Current
7.98A
8.24A
8.5A
8.76A
8.98A
Power Tolerance
0 to+5W
Mechanical Data
Cell Type
Polycrystalline 156x156mm
Number of Cells
60
Glass
High Transmission,Low Iron,Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP67rated MC4 compatible
Dimension
1956*992*45mm
Weight
16.8kg
Model Type
JST280P(72)
JST290P(72)
JST300P(72)
JST310P(72)
JST320P(72)
JST330P(72)
Peak Power
280W
290W
300W
310W
320W
330W
Module Efficiency
14.50%
15.00%
15.50%
16.00%
16.50%
17.00%
Maxi Power Voltage
36.7V
37V
37.3V
37.6V
37.9V
38.2V
Maxi Power Current
7.63A
7.84A
8.05A
8.25A
8.45A
8.64A
Open Circuit Voltage
44.8V
45.1V
45.4V
45.7V
46V
46.3V
Short Circuit Current
7.93A
8.15A
8.37A
8.58A
8.79A
8.98A
Power Tolerance
0 to+5W
Mechanical Data
Cell Type
Polycrystalline 156x156mm
Number of Cells
72
Glass
High Transmission,Low Iron,Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP67rated MC4 compatible
Dimension
1956*992*45mm
Weight
21kg
Payment Terms




Payment Terms


T/T
FOB

30% T/T in advance, paid the balance before shipment
EXW
CIF
30% T/T in advance, paid the balance against copy of B/L
CFR(C&F)
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Western Union
Amount lower than 53000usd
Delivery Time
10~15 days after receiving payment for one container
Packing
Packing Information
Container
20GP
40GP
40HP
Pieces per Pallet
26
26
26
Pieces per Container
356
728
812
Shipping
By Sea
Delivery from Shanghai, Yiwu and Ningbo seaport
By Air
Departure from Shanghai Pudong Airport
By Express
Post by DHL, EMS, UPS, TNT.
