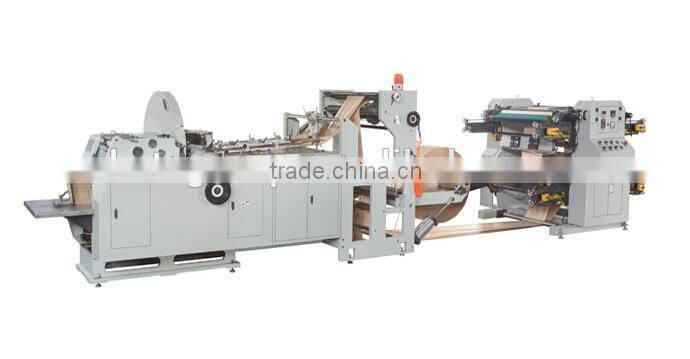

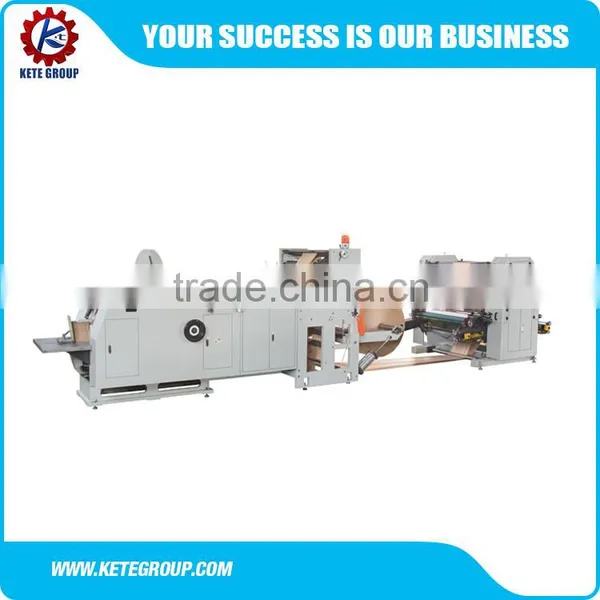

Professional Automatic High Speed Food Paper Bag Making Machine
Use
This paper bag machine forming the paper bag in one process from roll paper, printing, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag easy operation, low power consumption, high efficiency. It’s an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
Technical parameter
Model |
KTPM-A2-400 |
KTPM-A2-600 |
Cutting length |
150-460mm |
230-625mm |
Bag length |
145-455mm |
225-620mm |
Bag width |
70-280mm |
70-280mm |
Gusset |
20-100mm |
20-100mm |
Standard flap |
12-20mm |
12-20mm |
Max speed |
400pcs/min |
400pcs/min |
Max reel weight |
400kg |
400kg |
Max roll diameter |
1000mm |
1000mm |
Reel inner diameter |
76mm |
76mm |
Paper specification |
30-80gsm |
30-80gsm |
Printing color |
4 color |
4 color |
Printing width |
720mm |
720mm |
Printing length |
200-800mm |
200-800mm |
Max printing speed |
80m/min |
80m/min |
Overprint precision |
±0.2mm |
±0.2mm |
Thickness of plate |
2.38mm |
2.38mm |
Web edge control system |
Double photoelectric automatic correction control system |
|
Web tension control system |
Automatic constant tension control system |
|
Coating way |
Hot-melt glue spraying system/cold glue roller coating |
|
Air pressure |
≥0.12mm,0.6-1.2mpa |
≥0.12mm,0.6-1.2mpa |
Driven motor |
Double servo motor |
Double servo motor |
Power |
8kw |
8kw |
Weight |
3200kg |
3300kg |
Overall dimension |
4580*1650*1850mm |
4680*1650*1850mm |

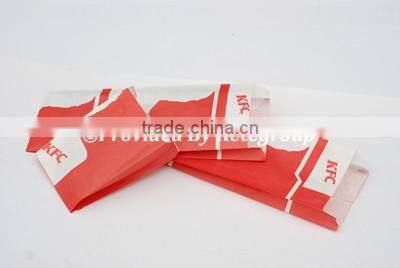

Sample
Bottom sealing bag making machine Flexo printing machine Label Printing machine plastic shoe making machine
Laminating machine Non woven bag making machine Paper bag making machine Carry bag making machine
Rotogravure printing machine Slitting machine Ultrasonic sewing machine Plastic bag making machine
