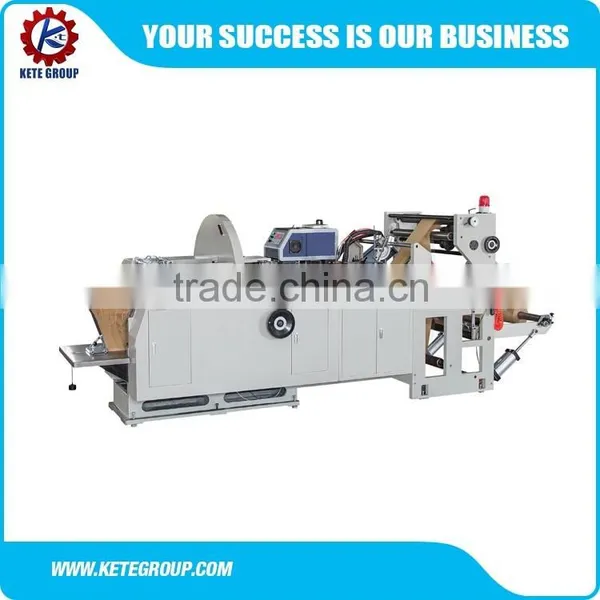

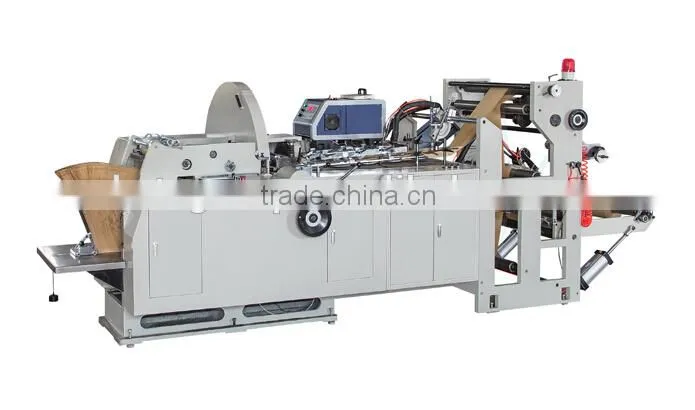

New Technology Designed Paper Bag Making Machine Price In India
Use
This paper bag machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag easy operation, low power consumption, high efficiency. It’s an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
Features
1. control bag length through the human-machine touch screen interface.
2. Adopt touch screen and PLC program control system, the work condition can be shown real time.
3. The machine has automatic counting system. The user can set a number to count.
4. Equipped with an accurate photocell system for printed mark tracking.
5. Color mark error stopping system.
6. Double photoelectric sensor limit automatic correction control system.
7. Material lifting adopt pneumatic lift structure.
8. Automatic oil lubrication system.
Technical parameter
Model |
KTPM-A1-400 |
KTPM-A1-600 |
Cutting length |
150-460mm |
230-625mm |
Bag length |
145-455mm |
225-620mm |
Bag width |
70-280mm |
70-280mm |
Gusset |
20-100mm |
20-100mm |
Standard flap |
12-20mm |
12-20mm |
Max speed |
400pcs/min |
400pcs/min |
Max reel weight |
400kg |
400kg |
Max roll diameter |
1000mm |
1000mm |
Reel inner diameter |
76mm |
76mm |
Paper specification |
30-80gsm |
30-80gsm |
Web edge control system |
Double photoelectric automatic correction control system |
|
Web tension control system |
Automatic constant tension control system |
|
Coating way |
Hot-melt glue spraying system/cold glue roller coating |
|
Film thickness |
0.015-0.04mm |
0.015-0.04mm |
Film width |
50-180mm |
50-180mm |
The max film diameter |
450mm |
450mm |
Film inner diameter |
76mm |
76mm |
Automatic counting system |
Yes |
Yes |
Automatic oil supply system |
Yes |
Yes |
Air pressure |
≥0.12mm,0.6-1.2mpa |
≥0.12mm,0.6-1.2mpa |
Driven motor |
Double servo motor |
Double servo motor |
Power |
8kw |
8kw |
Weight |
3200kg |
3300kg |
Overall dimension |
4580*1650*1850mm |
4680*1650*1850mm |

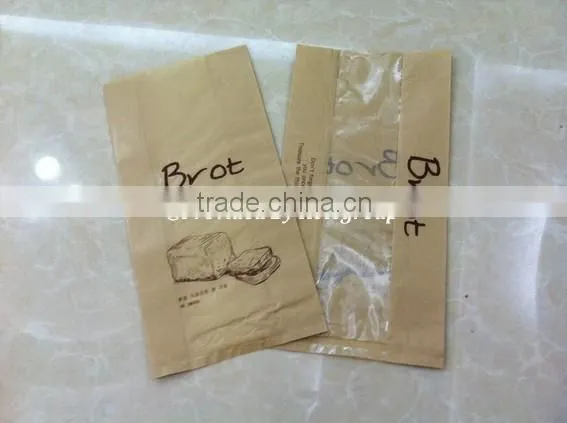

Sample
