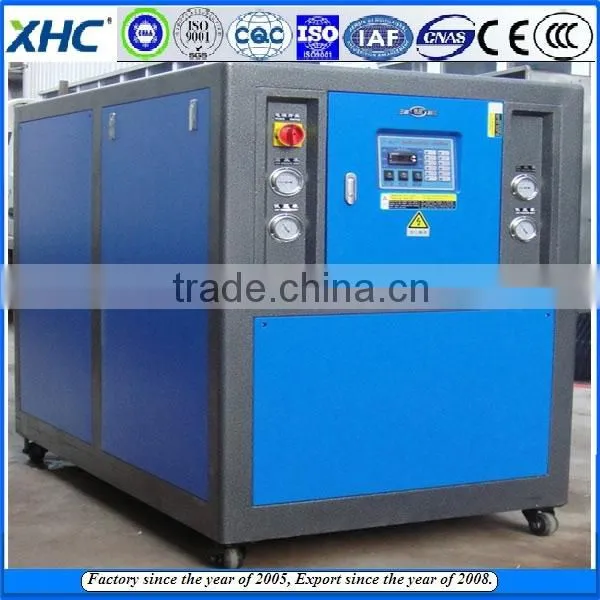

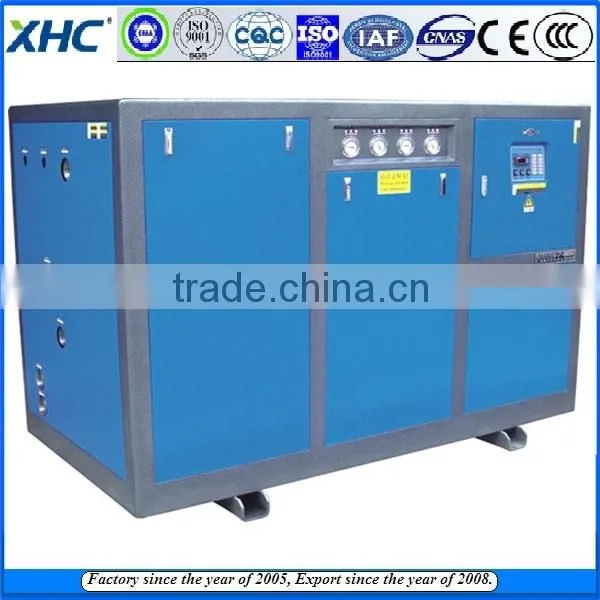

China direct manufacture for Industrial water chiller unit
I. Instruction of Water chiller unit :
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.

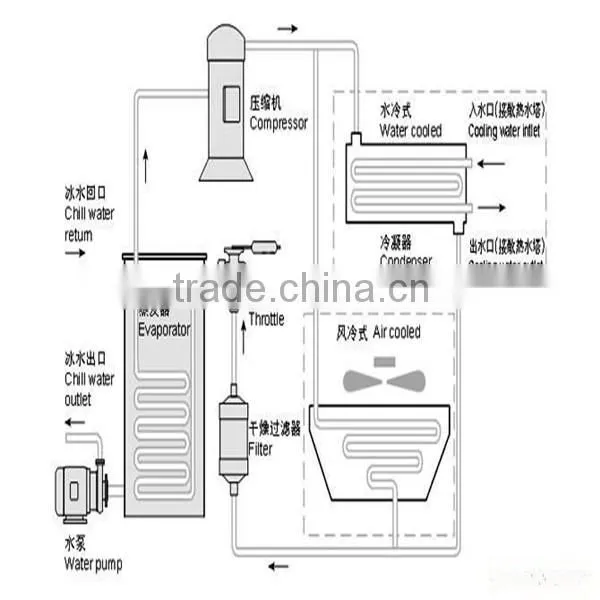

Water chiller unit working principle
II. Technology parameter of Water chiller unit :
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
Flow water |
Cooling water |
size |
||
The models below include 1 compressor | ||||||
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2kw |
5.5kw |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5kw |
7.2kw |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6kw |
8.2kw |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8kw |
10.6kw |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2kw |
13.8kw |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4kw |
17.8kw |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6kw |
20.6kw |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2kw |
28.5kw |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5kw |
36.3kw |
2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 or R404a. | ||||||

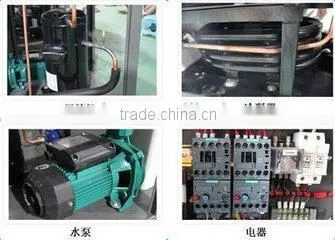

III.Main parts of Water chiller unit :
Item |
Model |
Brand |
Remark |
Compressor |
|
Copeland |
USA |
Computer control |
|
XHC |
XHC PATENT |
Refrigerant |
R22 or R404a |
DUPON |
USA |
|
Electrical Accessories |
|
ZHENGTAI |
China |
Condenser |
|
XHC |
XHC PATENT |
Evaporator |
|
XHC |
XHC PATENT |
Pressure Gauge |
|
GARHOPE |
Sino-American joint venture |
Solenoid |
|
FENSHEN |
XHC PATENT |
Expansion Valve |
|
SAGINOMIYA |
Japan |
Filter |
|
SANRONG |
XHC PATENT |
Economizer |
|
XHC |
XHC |
Copper Tube |
|
HONGTAI |
Qingdao,China |
Steel |
|
BAOSTEEL |
Shanghai,China |
Pressure Controller |
|
FENSHEN |
XHC PATENT |
Stop valve |
|
FENSHEN |
XHC PATENT |

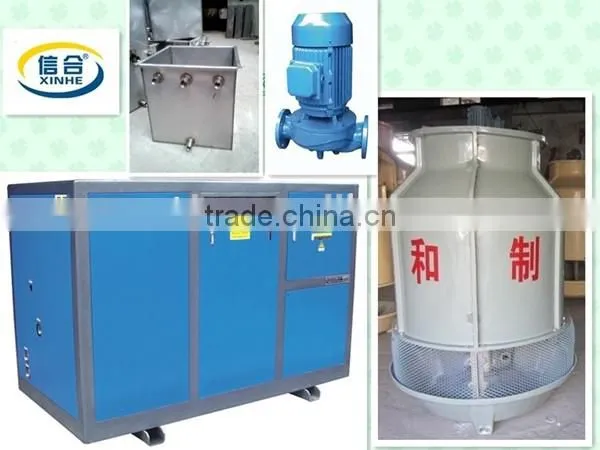

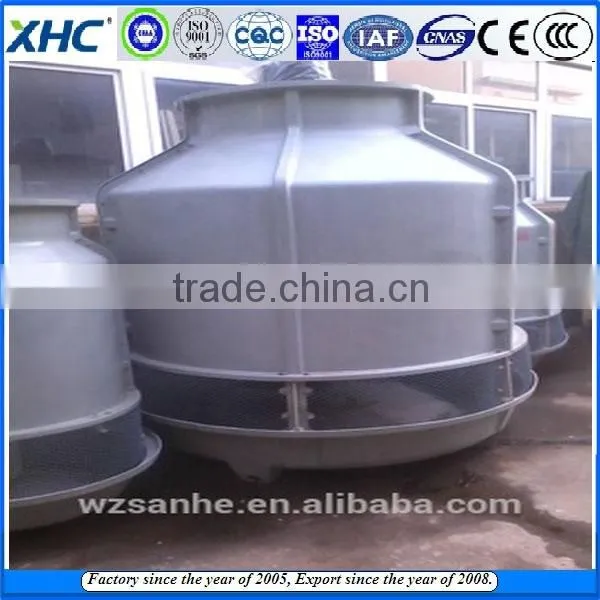

Cooling towers

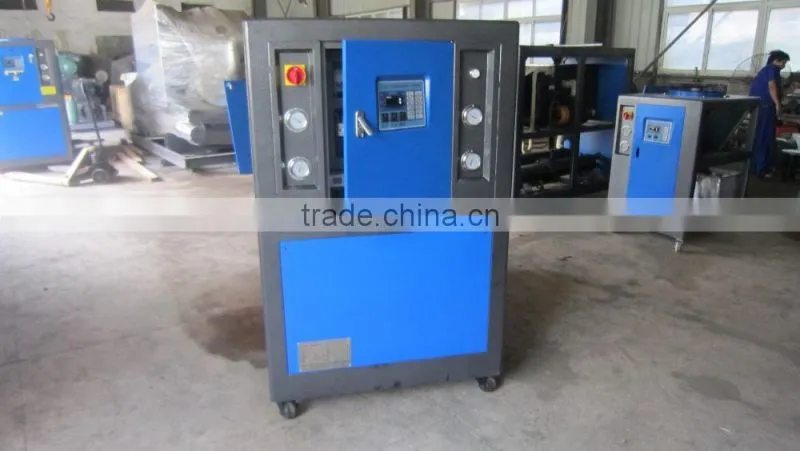

Water chillers in our working shop .
Water chillers in our working shop
