China direct manufacture for Industrial Water cooled chiller system
I. Instruction of Water cooled chiller system :
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.

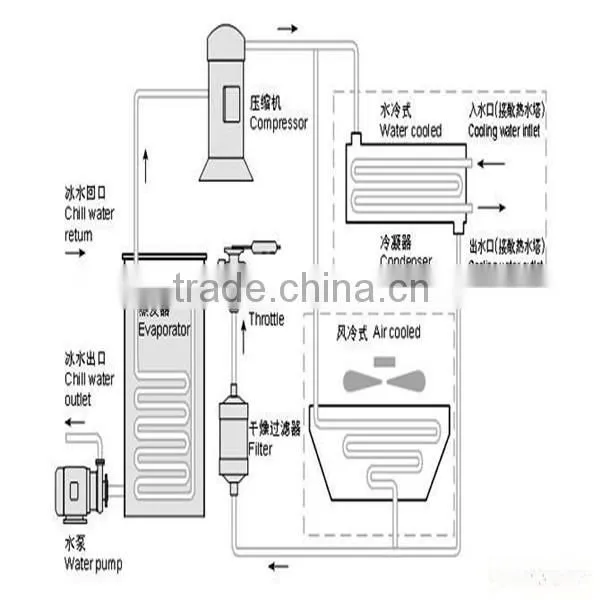

Water chiller working principle drawing
II. Technology parameter of Water cooled chiller system:
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
Flow water |
Cooling water |
size |
||
The models below include 1 compressor | ||||||
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2kw |
5.5kw |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5kw |
7.2kw |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6kw |
8.2kw |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8kw |
10.6kw |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2kw |
13.8kw |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4kw |
17.8kw |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6kw |
20.6kw |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2kw |
28.5kw |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5kw |
36.3kw |
2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 or R404a | ||||||
III.Main parts of Water cooled chiller system :
Item |
Model |
Brand |
Remark |
Compressor |
|
Copeland |
USA |
Computer control |
|
XHC |
XHC PATENT |
Refrigerant |
R22 or R404a |
DUPON |
USA |
|
Electrical Accessories |
|
ZHENGTAI |
China |
Condenser |
|
XHC |
XHC PATENT |
Evaporator |
|
XHC |
XHC PATENT |
Pressure Gauge |
|
GARHOPE |
Sino-American joint venture |
Solenoid |
|
FENSHEN |
XHC PATENT |
Expansion Valve |
|
SAGINOMIYA |
Japan |
Filter |
|
SANRONG |
XHC PATENT |
Economizer |
|
XHC |
XHC |
Copper Tube |
|
HONGTAI |
Qingdao,China |
Steel |
|
BAOSTEEL |
Shanghai,China |
Pressure Controller |
|
FENSHEN |
XHC PATENT |
Stop valve |
|
FENSHEN |
XHC PATENT |
Why choose XHC ?
We’re specialize in this field for 10years , with best service and competitive price , We’re 8year Alibaba gold supplier .
More service we can provide :
1.Professional free design .
2.OEM support .
3.Low MOQ .
4.Fast Delivery .
5.FOB price = Factory price .
How to Order ?
1.Pls tell us the Model ,Quantity ,which you need .
2.We will make a PI for you to confirm.
3.Pay the Deposit to us after you confirm the PI.
4.Goods will be shipping within 15days after we received your full payment .
5.EXW,FOB , CIF, CNF all ok, it’s up to you .
Thanks again , hope we can help you for your business !
