Specifications
Water cooled chiller :1.Used for Injecion molding machine ,plastic ,etc
2.With stainless steel water tank .
3.With Cooling t
Water cooled chiller
I. Instruction of Water cooled chiller :
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.
II.Accessories of Water cooled chiller :
Item |
Model |
Brand |
Remark |
Compressor |
|
Copeland |
USA |
Computer control |
|
XHC |
China |
Refrigerant |
R22 or R404a |
DUPON |
USA |
Electrical Accessories |
|
ZHENGTAI |
China |
Condenser |
|
XHC |
China |
Evaporator |
|
XHC |
China |
Pressure Gauge |
|
GARHOPE |
Sino-American joint venture |
Solenoid |
|
FENSHEN |
China |
Expansion Valve |
|
SAGINOMIYA |
Japan |
Filter |
|
SANRONG |
China |
Economizer |
|
XHC |
China |
Copper Tube |
|
HONGTAI |
Qingdao,China |
Steel |
|
BAOSTEEL |
Shanghai,China |
Pressure Controller |
|
FENSHEN |
China |
Stop valve |
|
FENSHEN |
China |
III. Technology parameter of Water cooled chiller :
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
Flow water |
Cooling water |
size |
||
The models below include 1 compressor | ||||||
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2kw |
5.5kw |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5kw |
7.2kw |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6kw |
8.2kw |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8kw |
10.6kw |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2kw |
13.8kw |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4kw |
17.8kw |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6kw |
20.6kw |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2kw |
28.5kw |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5kw |
36.3kw |
2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 | ||||||

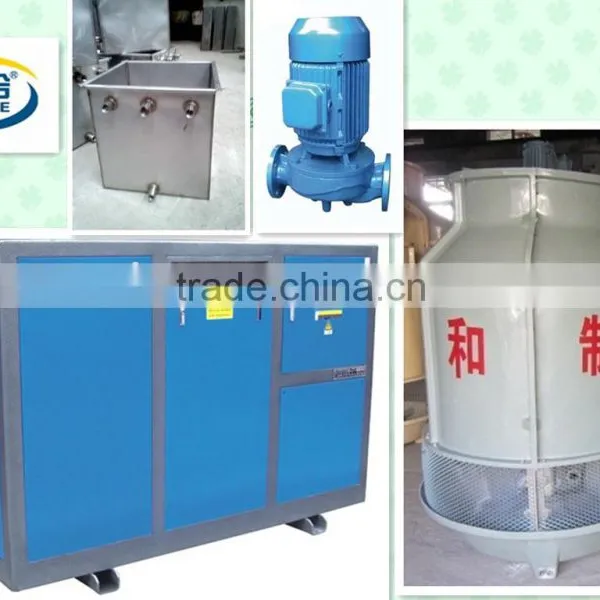

IV.Main parts of Water coole chiller pictures :
V.Certificates of Water cooled chiller :
V. Water cooled chillers in working shop :
Water chiller on Canton fair .
Water chiller in Working shop .
VI.Widely application of Water cooled chiller :
It's widely used for Injection molding machine,plastic ,leather ,chemical factory ,and many fileds ,which need to low the water temperature .
