Industrial Water cooling chiller price list
I. Instruction of Water cooling chiller:
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.
Working principle of Water cooling chiller
II. Technology parameter of Water cooling chiller:
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
Flow water |
Cooling water |
size |
||
The models below include 1 compressor | ||||||
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2kw |
5.5kw |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5kw |
7.2kw |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6kw |
8.2kw |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8kw |
10.6kw |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2kw |
13.8kw |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4kw |
17.8kw |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6kw |
20.6kw |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2kw |
28.5kw |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5kw |
36.3kw |
2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 | ||||||

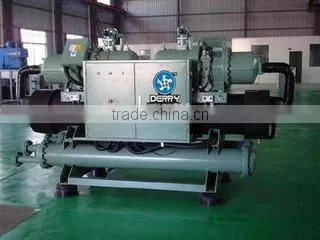

Water cooling chillers in our working shop
III.Certificates of Water cooling chiller :
V.Widely application of Water cooling chiller :
It's widely used for Injection molding machine,plastic ,leather ,chemical factory ,and many fileds ,which need to low the water temperature .
