Specifications
Air cooled chiller :1.Best quality and energy-saving performance;
2.Cooling capacity is over 30% more than ordinary chiller
I. Instruction of Air cooled chiller :
1.XHC Air Chiller has complete specifications. It has the characteristic of perfect case design, electrostatic plastic spraying shell, European design, beautiful and graceful appearance and easy installation. The condenser use high efficiency internal thread tube with clean water aluminium fins having "V" shape central air conditioner design, high heat transfer well.
2.Compressors adopt the new and famous brand compressors imported from Europe, Japan and United Stated with the feature of environmental protection, energy saving and durability.
3.Easy installation, using without cooling towers and cooling water circulation pumps.
Air cooling medium, not confined by water resources, most suitable for environment and places of poor water quality and lack of water resources.
Features :
1. International advanced scroll compressor or piston compressor.
2. High efficiency air condenser and Large wind volume axial flow design.
3. Automatically controlled by micro-computer, easy to operate (optional).
4.Industrialized design with exquisite appearance and optimized friendly operation.
5. Small chiller has caster on chassis for easy movable.
6. Microelectronics control.
7.Cooling capacity is from 5.8kw to 145kw .
II. Technology parameter of Air cooled chiller :
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
|
Capacity |
Power |
Flow water |
Cooling air |
size |
|||
The models below include 1 Compressor | |||||||
XCA-02S |
4988kcal/hr |
2.5kw |
1.9kw |
1.3m3/h |
2270m3/h |
0.8*0.6*0.85m |
|
XCA-03S |
8428kcal/hr |
3.4kw |
2.9kw |
1.8m3/h |
3400m3/h |
0.95*0.68*1.0m |
|
XCA-05S |
13,932kcal/hr |
5.7kw |
4.8kw |
2.6m3/h |
4550m3/h |
1.28*0.68*1.2m |
|
XCA-08S |
21,156kcal/hr |
8.5kw |
7.5kw |
4.2m3/h |
6800m3/h |
1.24*0.73*1.38m |
|
XCA-10S |
27,090kcal/hr |
11.4kw |
9.8kw |
5.5m3/h |
9600m3/h |
1.5*0.8*1.32m |
|
XCA-12S |
31,304kcal/hr |
13.3kw |
11.8kw |
6.6m3/h |
9600m3/h |
1.5*0.8*1.35m |
|
The models below include 2 Compressors | |||||||
XCA-16D |
41,796kcal/hr |
18.1kw |
15.2kw |
7.8m3/h |
13200m3/h |
1.58*0.95*1.46m |
|
XCA-20D |
53,750kcal/hr |
22.8kw |
19.8kw |
11.2m3/h |
19800m3/h |
2.5*1.0*1.5m |
|
XCA-25D |
62,264kcal/hr |
26.9kw |
23.8kw |
13.4m3/h |
26000m3/h |
2.5*1.0*1.58m |
|
XCA-30D |
83,420kcal/hr |
36.5kw |
30.6kw |
16.6m3/h |
265000m3/h |
2.65*1.0*1.58m |
|
XCA-40D |
107,500kcal/hr |
45.8kw |
39.5kw |
21.2m3/h |
39800m3/h |
2.8*1.15*1.68m |
|
XCA-50D |
124,700kcal/hr |
53.9kw |
47.2kw |
26.5m3/h |
52000m3/h |
2.8*1.9*1.75m |
|
Note : |
|||||||
1.The details above is based on the following parameter :Evaporator temperature:10C | |||||||
Condensing temperature:54.4C | |||||||
2.Main Voltage :3Phase-380V/50HZ ,3Phase-220V/60HZ | |||||||
III.Main parts of Air cooled chiller
Item |
Remark |
Brand |
Brand |

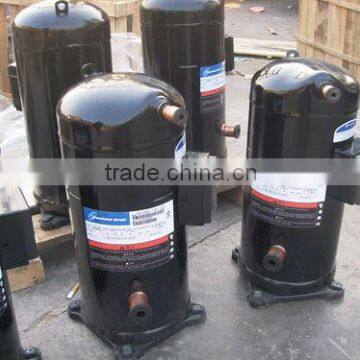

Compressor |
|
Copeland |
USA |
Computer control |
|
Computer control |
Sino-foreign joint venture |
Refrigerant |
R22 |
DUPON |
USA |
Electrical equipment |
|
ZHENGTAI |
China |
Condenser |
|
Efficient copper tube set of aluminum finned + low noise outer rotor axial flow fan |
SANHE |
Evaporator |
|
Coil pipe |
SANHE |
Pressure gauge |
|
GARHOPE |
Sino-US joint venture |
Solenoid valve |
|
FENSHEN |
Sino-foreign joint venture |
Flow controller |
|
Capillary |
XHC |
Dry filter |
|
SANRONG |
Sino-foreign joint venture |
Energy device |
|
XHC |
XHC SANHE |
Copper pipe |
|
HONGTAI |
Qingdao ,China |
Steel |
|
BAOGANG |
Shanghai ,China |
Pressure controller |
|
FENSHEN |
Sino-foreign joint venture |
Globe valves |
|
FENSHEN |
Sino-foreign joint venture |
IV.Main parts of Air cooled chiller :
V.Certificates of Air cooled chiller :
