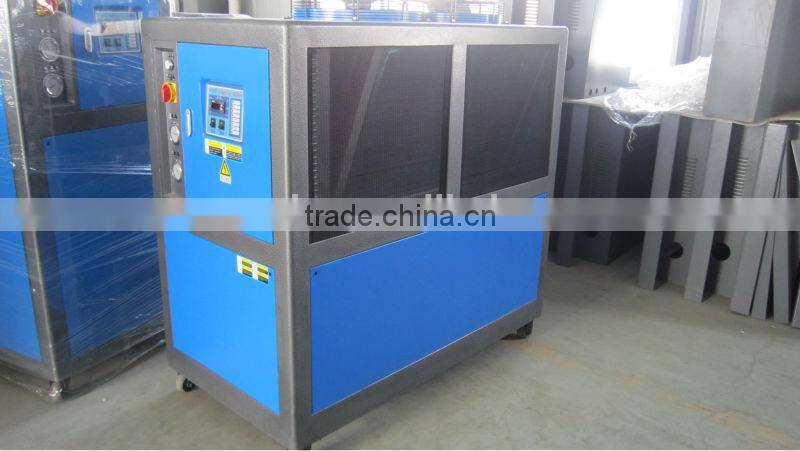

20HP Air Chiller

Models

Cooling

Input

Compressor

Evaporator

Condenser

The machine

Capacity

Power

Flow water

Cooling air

size

     The models below include 1 Compressor

XCA-02S

4988kcal/hr

2.5kw

1.9kw

1.3m3/h

2270m3/h

0.8*0.6*0.85m

XCA-03S

8428kcal/hr

3.4kw

2.9kw

1.8m³/h

3400m³/h

0.95*0.68*1.0m

XCA-05S

13,932kcal/hr

5.7kw

4.8kw

2.6m³/h

4550m³/h

1.28*0.68*1.2m

XCA-08S

21,156kcal/hr

8.5kw

7.5kw

4.2m³/h

6800m³/h

1.24*0.73*1.38m

XCA-10S

27,090kcal/hr

11.4kw

9.8kw

5.5m³/h

9600m³/h

1.5*0.8*1.32m

XCA-12S

31,304kcal/hr

13.3kw

11.8kw

6.6m³/h

9600m³/h

1.5*0.8*1.35m

               The models below include 2 Compressors

XCA-16D

41,796kcal/hr

18.1kw

15.2kw

7.8m³/h

13200m³/h

1.58*0.95*1.46m

XCA-20D

53,750kcal/hr

22.8kw

19.8kw

11.2m³/h

19800m³/h

2.5*1.0*1.5m

XCA-25D

62,264kcal/hr

26.9kw

23.8kw

13.4m³/h

26000m³/h

2.5*1.0*1.58m

XCA-30D

83,420kcal/hr

36.5kw

30.6kw

16.6m³/h

265000m³/h

2.65*1.0*1.58m

XCA-40D

107,500kcal/hr

45.8kw

39.5kw

21.2m³/h

39800m³/h

2.8*1.15*1.68m

XCA-50D

124,700kcal/hr

53.9kw

47.2kw

26.5m³/h

52000m³/h

2.8*1.9*1.75m

Note :

1.The details above is based on the following parameter :Evaporator temperature:10C

Condensing temperature:54.4C

2.Main Voltage :3P-380V/50HZ ,3P-220V/60HZ
