Specifications
AC motor starting CBB65 capacitorwidely used in motors,
air conditional,
water pump,
work well even in hot area
AC motor starting CBB65 capacitor

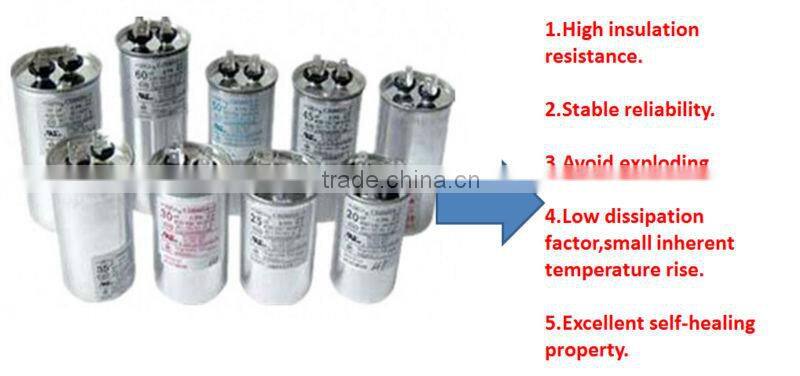

1.Main features of AC motor starting CBB65 capacitor :
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
2.Detailed description of AC motor starting CBB65 capacitor :
Recommended Applications of CBB65 AC motor starting capacitor :
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
3.Models of AC motor starting CBB65 capacitor :
Operating temperature range: -40c~+85C degree
Capacitance range: 4uf~100UF
Rated voltage: 110VAC~600VAC
Capacitance tolerance: ±5%,±10%
Dissipation factor: ≤4*10-3 (23°C,f=100hz)
Withstand voltage: between terminals: 2.0Un/60S; terminals to case: 2000V.AC
Insulation resistance: CXRs≥3000S (23°C,1min)
Dimensions(mm):
capacitance |
250vac |
capacitance |
450vac |
capacitance |
630vac |
|||
uf |
D(mm) |
H(mm) |
uf |
D(mm) |
H(mm) |
uf |
D(mm) |
H(mm) |
10 |
42 |
60 |
5 |
42 |
60 |
5 |
42 |
60 |
15 |
42 |
60 |
7.5 |
42 |
60 |
10 |
45 |
80 |
20 |
42 |
60 |
10 |
42 |
60 |
15 |
50 |
100 |
25 |
42 |
80 |
15 |
45 |
80 |
20 |
50 |
100 |
30 |
42 |
80 |
20 |
45 |
80 |
25 |
60 |
100 |
40 |
45 |
80 |
25 |
50 |
80 |
30 |
60 |
100 |
50 |
50 |
80 |
30 |
50 |
100 |
40 |
65 |
110 |
75 |
50 |
100 |
40 |
50 |
100 |
|
|
|
100 |
55 |
100 |
50 |
55 |
100 |
|
|
|
|
|
|
60 |
60 |
100 |
|
|
|
|
|
|
75 |
65 |
110 |
|
|
|
Special requirements can be designed at the request of customers.

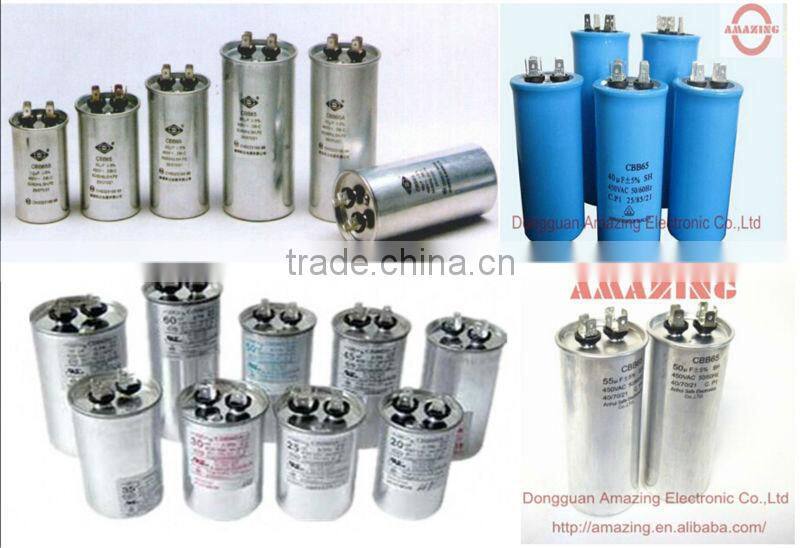

4.Picture of CBB65 AC motor starting capacitor :
5 . AC motor starting CBB65 capacitor -Production department :
Amazing Technology has specialized in the high voltage ceramic capacitors for 13 years, the final goal is to make the high quality, high standard capacitors for our customers.
The professional engineers, The most advanced technology help us make the best high voltage ceramic capacitor.
...
