Help CenterCuZn5 C21000 Military Level of Brass Sheet
Related Products
-
CuZn5 Military Level of Brass Sheet Brass PlateUS$ 5 - 10MOQ: 1 Ton -
C21000 Military Level of Brass Plate SheetUS$ 5 - 10MOQ: 1 Ton
-
Brass Sheet for Deep DrawingUS$ 6 - 12MOQ: 1 Ton
-
CuZn35% Brass Sheet for Many ApplicationsUS$ 6 - 12MOQ: 1 Ton
-
C2800 H62(Cu62%Zn38%) Brass Sheet for Deep DrawingUS$ 6 - 10MOQ: 1 Ton
brass sheet
| 1. | standard: |
| 1). | meet the technical conditions GB/T 2059-2008 and GB17793-1999 standards. |
| 2). | Chemical ingredients meet the GB5232-2001 standard. |
| 3). | in accordance with ISO9001-2000 Quality system requirements |
| 4). | The special requirements will be satisfied when users have put forward. |
| 2. | Range of work: |
| 1). | thickness: 0.8--40mm |
| 2). | width: 400 or 600mm |
| 3). | length: max 2m |
| 3. | Range of usage: |
| 1). | transformer |
| 2). | water heater exchanger |
| 3). | automotive manufacturers |
Copper zinc alloy h62C28000 CuZn38 strip
Common Brass C28000 is a copper zinc alloy which is basically used for hot or cold formed products. Higher thermal conductivity of brass makes it ideal for heat exchangers. Altering the composition of the alloy allows brass to change into desired colors preferred by architects.
The following datasheet gives an overview of the chemical composition and properties of yellow brass UNS C28000.
Chemical Composition
The chemical composition of yellow brass UNS C28000 is detailed in the following table.
Element |
Content(%) |
Iron, Fe |
≤ 0.050 |
Lead, Pb |
≤ 0.15 |
Zinc, Zn |
37-39 |
Copper, Cu |
62.0 |
Different countries’Standard comparison table of copper
GB |
DIN |
|
EN |
|
ISO |
UNS |
JIS |
H96 |
CuZn5 |
2.022 |
CuZn5 |
CW500L |
CuZn5 |
C21000 |
C2100 |
H90 |
CuZn10 |
2.023 |
CuZn10 |
CW501L |
CuZn10 |
C22000 |
C2200 |
H85 |
CuZn15 |
2.024 |
CuZn15 |
CW502L |
CuZn15 |
C23000 |
C2300 |
H80 |
CuZn20 |
2.025 |
CuZn20 |
CW503L |
CuZn20 |
C24000 |
C2400 |
H70 |
CuZn30 |
2.0265 |
CuZn30 |
CW505L |
CuZn30 |
C26000 |
C2600 |
H68 |
CuZn33 |
2.028 |
CuZn33 |
CW506L |
CuZn35 |
C26800 |
C2680 |
H65 |
CuZn36 |
2.0335 |
CuZn36 |
CW507L |
CuZn35 |
C27000 |
C2700 |
H63 |
CuZn37 |
2.0321 |
CuZn37 |
CW508L |
CuZn37 |
C27200 |
C2720 |
H62 |
CuZn40 |
2.036 |
CuZn40 |
CW509N |
CuZn40 |
C28000 |
C3712 |
H60 |
CuZn38Pb1.5 |
2.0371 |
CuZn38Pb2 |
CW608N |
CuZn37Pb2 |
C35000 |
- |
HPb59-1 |
CuZn39Pb2 |
2.038 |
CuZn39Pb2 |
CW612N |
CuZn38Pb2 |
C37700 |
C3771 |
Specification
All dimensions are according to customers requirements.
Characteristics and Applications
Brass Alloy name |
Copper (%) |
Zinc (%) |
Other |
Abyssinian gold |
90 |
10 |
|
Admiralty brass |
69 |
30 |
1% tin |
Aich's alloy |
60.66 |
36.58 |
1.02% tin, 1.74% iron |
Cartridge brass |
70 |
30 |
|
Common brass |
63 |
37 |
|
Gilding metal |
95 |
5 |
|
High brass |
65 |
35 |
|
Low brass |
80 |
20 |
|
Manganese brass |
70 |
29 |
1.3% manganese |
Muntz metal |
60 |
40 |
traces of iron |
Naval brass |
59 |
40 |
1% tin |
Nickel brass |
70 |
24.5 |
5.5% nickel |
Nordic gold |
89 |
5 |
5% aluminium 1% tin |
Prince's metal |
75 |
25 |
|
Red brass, Rose brass |
85 |
5 |
5% tin, 5% lead |
Rich low brass, Tombac |
|
5–20 |
|
Silicon tombac |
80 |
16 |
4% silicon |
Yellow brass |
67 |
33 |
|

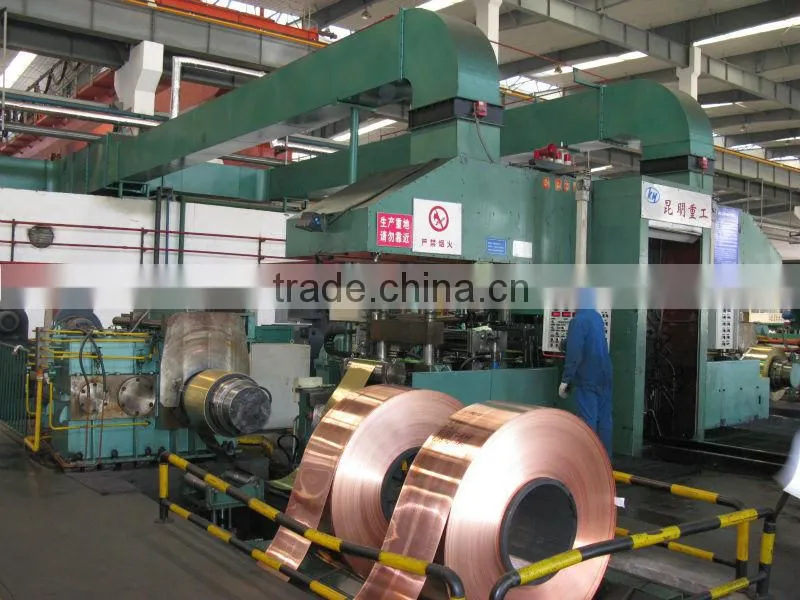

Manufacture Facility

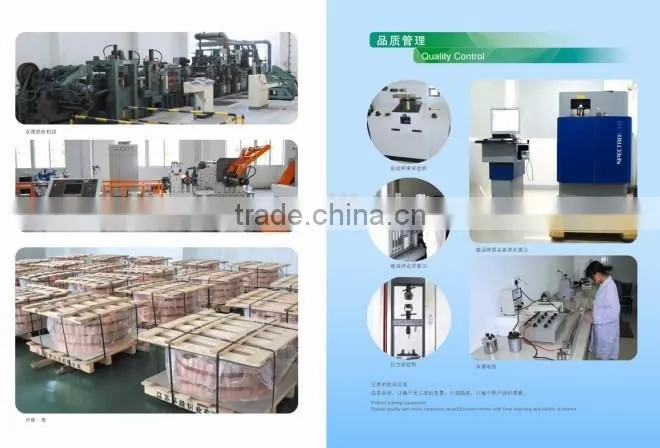

Test Equipment
Payment & Delivery Terms | |
Minimun Qrder Quantity |
50 Kilogram |
Packing Details |
In reel packed with plastic film, then in carton or wooden box |
Delivery time |
20 days |
Payment Terms |
T/T, D/P,L/C. |
Supply Ability |
50 tons per Month |
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country.
Thank you for coming to our website. If you have any questions or suggestions, please do not hesitate to contact us, we will reply you within in 12 hours, to see more products of copper series strips pls click
Payment & Delivery Terms | |
Minimun Qrder Quantity |
50 Kilogram |
Packing Details |
In reel packed with plastic film, then in carton or wooden box |
Delivery time |
20 days |
Payment Terms |
T/T, D/P,L/C. |
Supply Ability |
50 tons per Month |
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country.
Thank you for coming to our website. If you have any questions or suggestions, please do not hesitate to contact us, we will reply you within in 12 hours, to see more products of copper series strips pls click https://img13.fr-trading.com
