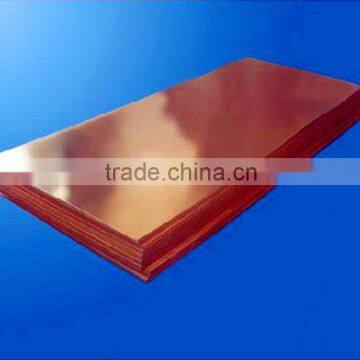

C21000 Military level of brass plate sheet

FOB Price

USD $5 - $10 / Ton

1 Ton(Min.Order)

Supply Ability 2000 Ton / Tons per Month
Port shanghai
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	huansheng
Model Number	C21000	Application	many applications
Thickness	0.8--40mm	Shape	Plate
Width	400/600mm	Material	Brass
Grade	C21000	Cu (Min)	96% and others
Alloy Or Not	Is Alloy

Product Description

brass sheet

1.	standard:
1).	meet the technical conditions GB/T 2059-2008 and GB17793-1999 standards.
2).	Chemical ingredients meet the GB5232-2001 standard.
3).	in accordance with ISO9001-2000 Quality system requirements
4).	The special requirements will be satisfied when users have put forward.

2.	Range of work:
1).	thickness: 0.8--40mm
2).	width: 400 or 600mm
3).	length: max 2m

3.	Range of usage:
1).	transformer
2).	water heater exchanger
3).	automotive manufacturers

Copper zinc alloy h62C28000 CuZn38 strip

Common Brass C28000 is a copper zinc alloy which is basically used for hot or cold formed products. Higher thermal conductivity of brass makes it ideal for heat exchangers. Altering the composition of the alloy allows brass to change into desired colors preferred by architects.

The following datasheet gives an overview of the chemical composition and properties of yellow brass UNS C28000.

Chemical Composition

The chemical composition of yellow brass UNS C28000 is detailed in the following table.

Element	Content(%)
Iron, Fe	≤ 0.050
Lead, Pb	≤ 0.15
Zinc, Zn	37-39
Copper, Cu	62.0

Different countries’Standard comparison table of copper

GB	DIN		EN		ISO	UNS	JIS
H96	CuZn5	2.022	CuZn5	CW500L	CuZn5	C21000	C2100
H90	CuZn10	2.023	CuZn10	CW501L	CuZn10	C22000	C2200
H85	CuZn15	2.024	CuZn15	CW502L	CuZn15	C23000	C2300
H80	CuZn20	2.025	CuZn20	CW503L	CuZn20	C24000	C2400
H70	CuZn30	2.0265	CuZn30	CW505L	CuZn30	C26000	C2600
H68	CuZn33	2.028	CuZn33	CW506L	CuZn35	C26800	C2680
H65	CuZn36	2.0335	CuZn36	CW507L	CuZn35	C27000	C2700
H63	CuZn37	2.0321	CuZn37	CW508L	CuZn37	C27200	C2720
H62	CuZn40	2.036	CuZn40	CW509N	CuZn40	C28000	C3712
H60	CuZn38Pb1.5	2.0371	CuZn38Pb2	CW608N	CuZn37Pb2	C35000	-
HPb59-1	CuZn39Pb2	2.038	CuZn39Pb2	CW612N	CuZn38Pb2	C37700	C3771

Specification

All dimensions are according to customers requirements.

Characteristics and Applications

Brass Alloy name	Copper (%)	Zinc (%)	Other
Abyssinian gold	90	10
Admiralty brass	69	30	1% tin
Aich's alloy	60.66	36.58	1.02% tin, 1.74% iron
Cartridge brass	70	30
Common brass	63	37
Gilding metal	95	5
High brass	65	35
Low brass	80	20
Manganese brass	70	29	1.3% manganese
Muntz metal	60	40	traces of iron
Naval brass	59	40	1% tin
Nickel brass	70	24.5	5.5% nickel
Nordic gold	89	5	5% aluminium 1% tin
Prince's metal	75	25
Red brass, Rose brass	85	5	5% tin, 5% lead
Rich low brass, Tombac		5–20
Silicon tombac	80	16	4% silicon
Yellow brass	67	33
