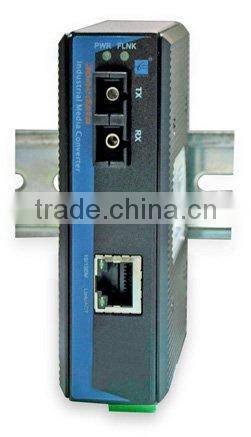

3ONEDATA Industrial Ethernet Over Fiber Optic Converters

Name: 3ONEDATA Industrial Ethernet Over Fiber Optic Converters
Brand: 3onedata
Availability: InStock

FOB Price

US$ 1 - 300 / Piece

1 Piece(Min. Order)

Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	3onedata
Model Number	IMC101

Product Description

Specifications

Our Fiber Media Converter IMC101 is Industrial Fiber Media Converter which provide Industrial Grade Stability and Protection.

10/100M Fiber Media Converter IMC101

Features
1 Plug-&-play, easy to installation,
2 Auto MDI/MDI-X connection
3 Redundant 24VDC power input (12V~36VDC)
4 - 40°C to 75°C working temperature
5 IP30 protection, rugged high-strength case
6 Relay output warning for power failure and port break alarm
7 Broadcast storm protection
8 Store and Forward 100M
9 Network work state LED indicator

Specification(Fiber Media Converter)

Standard	IEEE802.3x, IEEE802.3,IEEE802.3U
Processing Type	Store and Forward, with IEEE802.3x full duplex, non-blocking flow control
Flow control	IEEE802.3x flow control, back pressure flow control
RJ45 ports	10/100BaseT(X) auto negotiation speed,Full/half duplex mode,and auto MDI/MDI-X connection
Fiber ports	100BaseFX ports(SC/FC/ST connector, single or multi mode)
LED indicators	Port link, ring fault/ abnormity alarm indication 10M/100M Rate, ring network, slaver indication
System exchange bandwidth	4.8G
Forward speed	148810pps
Mac address	8K
Installation	DIN-Rail mounting, wall mounting or panel mounting
Housing	Aluminum, IP30 protection

Environment

Operating temperature	-40 to 75°C
Storage temperature	-45 to 85°C
Humidity	Relative humidity 5% to 95%

Power

Input powered	External 12-36VDC power supply
Consumption	300mA
Connection	3 bits terminal blcok
Overload currect protection	1.1A

Update Date:2012-04-24 02:21:14
