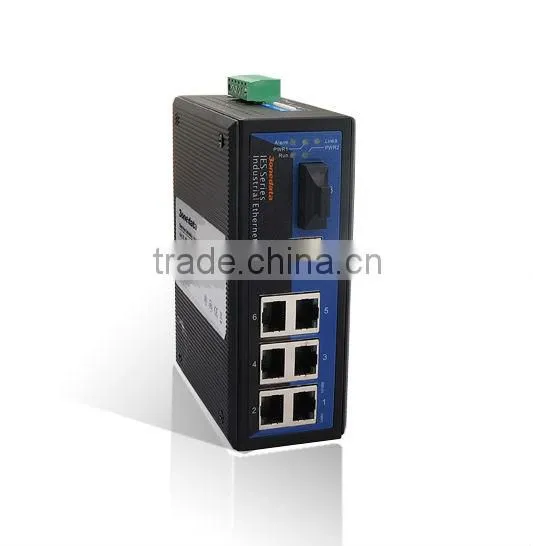

8-port 10/100M Within 1 Port 100Base-FX Industrial Ethernet Switch(IES308-1F)

8-port 10/100M Within 1 Port 100Base-FX Industrial Ethernet Switch(IES308-1F) thumbnail-1
8-port 10/100M Within 1 Port 100Base-FX Industrial Ethernet Switch(IES308-1F) photo-1
US$ 1 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 8
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Shenzhen 3onedata Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, 8
Transmission Rate 10/100Mbps
Communication Mode Other, Full-Duplex & Half-Duplex
Certification FCC,CE,RoHS
Switch Capacity 1.6G
Brand Name 3onedata
Model Number IES308-1F
Place of Origin Guangdong, China

Specifications

8 ports within 1 port 100Base-FX;
Broadcast storm protection;
12-48VDC power input;
Operating temperature rangs from -40-75.

Detailed Product Description





8- port Industrial Ethernet Switch within 1 port 100Base-FX;
Broadcast storm protection;
12-48VDC power input;
Operating temperature rangs from -40-75.





8-port 10/100M Industrial Ethernet Switch



Features



1. Advanced Ethernet switch technical

2. IEEE802.3/802.3u/802.3x/802.3d,store and forward

3. Plug-and-play, 10/100M, F/H duplex, MDI/MDI-X auto negotiation

4. Broadcast storm protection

5. Relay output warning for power failure and port break alarm

6. Redundant 24VDC power input(12V~48VDC)

7. -40~75°C working temperature

8. Designed for industrial applications. IP30 protection, rugged

    high-strength metal case.



Introduction



IES308-1 series are a smart plug-and-play industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dustproof fully sealed structure(pr protective case of IP30 level), over-current, over-voltage and EMC protected redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.

IES308-1 support 7 TP ports and 1 optic port, TP(RJ45) Support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.100BaseFX ports supports single/multi mode, SC/ST connector, optional.

Specification



Interface



RJ45 Ports: 10/100BaseT(X) auto connection, F /H duplexor force work mode, and support MDI/MDI-X connection

Fiber Port: 100BaseFX ports (SC/ST connector, optional)

Single-mode: 20, 40,60, 80, 120Km,optional

Multi-mode: 2Km

Wavelength: 850nm, 1310 nm, 1550nm

Alarm output interface: One relay alarm output. Support power, port link and network alarm

Indicator: Power, Port link, abnormity alarm indication, 10M/100M Rate



Technology



Standards: IEEE802.3, IEEE802.3x, IEEE802.3u

Forwarding and Filtrate Rate: 148810pps



Processing type: Store and Forward



System exchange bandwidth: 4.8G



Relay



Max voltage: DC30V

Max power input: 24VA



Power



Input Voltage: 24VDC (12VDC~48VDC)

                         Overload Current Protection



                         Support dual power backup



Mechanical



Dimensions: 136mm×52mm×105mm (H×W×D)



Casing: IP30 protection, Metal case



Weight: 800g





Environmental





Operating Temperature: -40 to 75°C



Storage Temperature: -45 to 85 °C



Ambient Relative Humidity: 10% to 95% (non-condensing)





Approvals





EMI: FCC Part 15, CISPR (EN55022) class A



EMS: EN61000-4-2(ESD),



EN61000-4-3(RS),



EN61000-4-4(EFT),



EN61000-4-5 (Surge),



EN61000-4-6 (CS),



EN61000-4-8,



EN61000-4-11



Shock: IEC 60068-2-27



Free Fall: IEC 60068-2-32



Vibration: IEC 60068-2-6



Warranty: 5 years

Approvals: FCC,CE, RoHS approvals



Ordering information





IES308-1M      7-port 10/100Baes-T(X) + 1-port 100Base-FX, Multi-mode, SC, ST, optional, DC12-48V

IES308-1S      7-port 10/100Baes-T(X) + 1-port 100Base-FX, Single-mode, SC, ST, optional, DC12-48V
