1-port RS-485/422 to Ethernet Modbus Gateway
| Introduction |

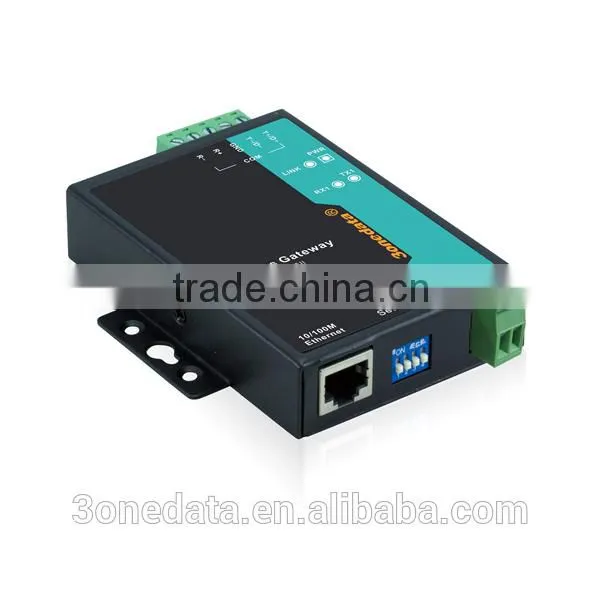

| GW1101-1D(RS-485) is an industrial Ethernet Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII protocols. It provides 1 port RS-485/422 serial (5 bit terminal block) and 1 port 10/100M Ethernet. Modbus TCP, Modbus RTU and Modbus ASCII protocol are integrated in the products, users can easily realize the seamless integration of Modbus Ethernet devices and Modbus serial devices and even multi master and slave hybrid networks. At the same time, the user can be set up by Web or Telnet. The simple design can not only realize the fast application, but also guarantee the application of the entire real industrial environment. The products using EMC protection design, can work in rugged environment. |
| Features |
1.Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS protocol 2.Support 1 port 10/100M Ethernet 3.Support 1 Port RS-485/422 4.Support WEB and Telnet configuration 5.Convert between Modbus TCP and Modbus RTU/ASCII 6.Support RTU Slave, RTU Master, ASCII Slave, ASCII Master four operating modes 7.Support ID mapping function, to achieve the management of the host ID 8.300bps~115200bps baud rate and nonblocking communication 9.Support IP address and MAC address filtering function 10.Slave mode support 16 TCP master connections 11.Master mode support 32 slave TCP connection requests 12.Support Response Timeout and Interval Timeout setting 13.Support cross-gateway and cross-router communication 14.IP30 protection grade, metal shell, wall mounted installation 15.No fan, low consumption design 16.Working temperature: -40~75℃ |
|
Specification | |
| Ethernet Port | Standard: 10Base-T, 100Base-TX |
| Serial Port | Serial port number: 1 port RS-485/422 |
| Power Supply |
Input voltage: 9~48VDC Full-load consumption: 1.16@9VDC |
| LED Indicator | Power: PWR |
| Environment Requirement |
Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Physical Characterisitics | Shell: IP30 protection, metal shell |
| Industrial Standard | EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A |
| Certification | CE, FCC, RoHS, UL508 (pending) |
| Warranty | 5 years |
| Packing List |
1. Modbus Gateway GW1101-1D(RS-485) ×1 2. User manual ×1 |

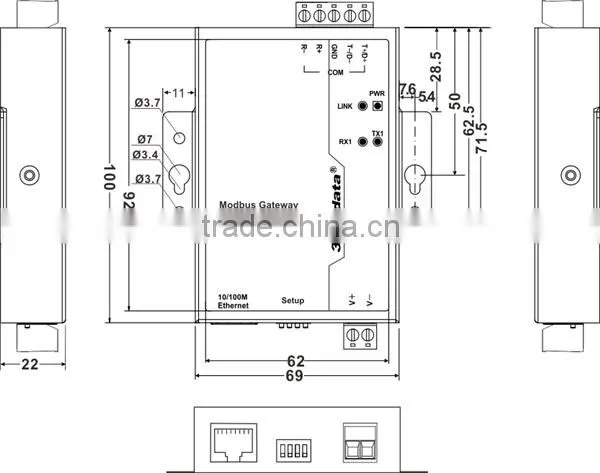

| Dimension |
| |
| Shipping |
|
| Order Information |
| GW1101-1D(RS-485): 1-port RS-485/422 to Ethernet Modbus Gateway, 9~48VDC, Wall mounting |
