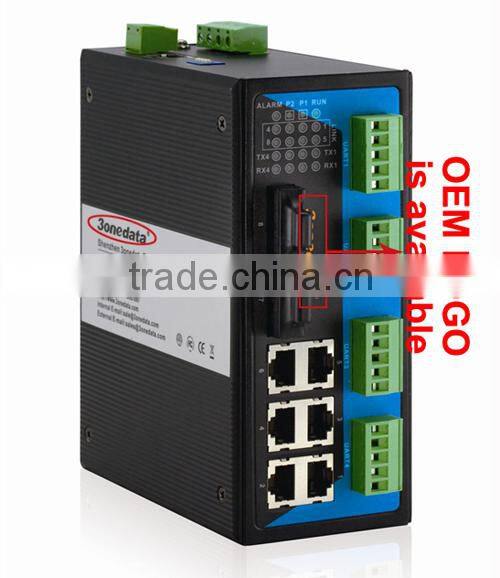

8 Ports Managed Industrial Ethernet Fiber Switch With 4 Ports RS485

      IES618-2F-4D(RS-485)-P(12/48VDC) is a industrial, management, redundant industrial Ethernet switch and integrate 4 port RS-485/422 serial device server.Switch supports 6 ports 10/100M Ethernet(RJ45), 2 ports 100M fiber, 4 ports RS-485/422, 2 redundant 12~48VDC power input and 1 relay alarm output, it adopts SW-Ring redundant technology (Recovery time<20ms), users can set the redundant easily to increase network reliability, furthermore, it can also supports numerous intelligent network management functions, such as IGMP, RSTP, 802.1Q VLAN, QOS, port trunking and port mirroring etc. Switch adopted no fan, low power consumption design, IP40, corrugate high strength iron shell,make the switch 's performance more steadily. Accorded with CE, FCC standard and Industrial grade 4 design, DIN rail installation and wide operating temperature (-40~75°C), makes the switch can satisfy some kinds of industrial network environment and provide reliable and quickly solution for your industrial network.

SW-RingTM, QOS, 802.1Q VLAN, port-trunking, static multicast filter, port mirroring, Broadcast storm control, flow statistics, upgrade online, up and download configuration file, user name access system.

SW-RingTM: Single, Couple, Chain, Dual homing ring.

Serial device server: 4 ports serial device sever, each port
support 4 TCP or UDP session connections

Switch

Properties

Forward speed: 148810pps

Maximum filter speed: 148810pps

Transmit mode: store and forward

Backplane bandwidth:1.6Gbps
MAC table size: 2K
Buffer size: 1M

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect

Optical Fiber Port: 100Base-FX, SC/ST/FC connector

Console port: RS-232(RJ45 Connector) debug serial port

Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 2 channel power iutput( 4 bit terminal block)

Serial port:RS-485/RS-422( 5 bit terminal block)

RS-422 signal: T+, T-, R+, R-, GND
RS-485 signal: D+, D-, GND
Parity: None,Even,Odd,Space,Mark
Data bit: 5bit,6bit,7bit,8bit
Band rate; 300~115200bps
Direction control: RS485 side adopt ADDC technology,
auto detect and control data transfer direction
Loading: RS-485/422 side support 32 nodes loop back
Protection: 2KV isolation, 15KV static protection

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

100Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

Wavelength:    1310nm, 1550nm

RS-485/422: 1200m

Power supply indicator: PWR
Alarm indicator: Alarm
System indicator: Run
Ethernet port indicator: Link/Act(1-8)
Serial port indicator: TX(1-4), RX(1-4)

Input voltage: 24VDC(12~48VDC)
Terminal block: 4 bits 7.62mm terminal block
None load consumption: 1.8W@24VDC
Full load consumption: 3.9W@24VDC
Support inside over-current 4.0A protection
Support opposite connection protection

Shell: IP40 protection grade, metal shell

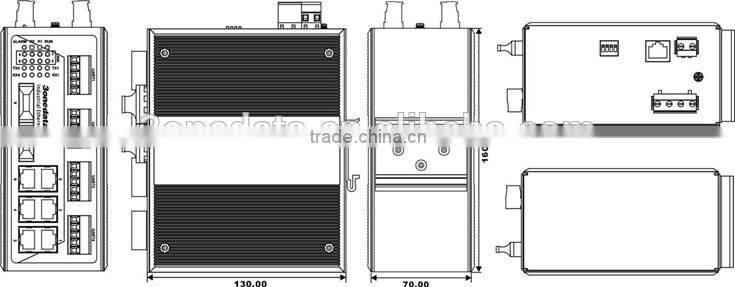

Size(W×H×D): 160mm×130mm×70mm

Weight:1021g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

1. Industrial Ethernet Switch IES618-2F-4D(RS-485) × 1

2.Attached CD  × 1

3. User manual × 1

4. Certificate of quality × 1
5. Warranty card × 1

6.DIN-Rail fittings  × 1
