V.35 to Optic Fiber Modem

Specifications

optic fiber modem, V.35 to optic fiber modem

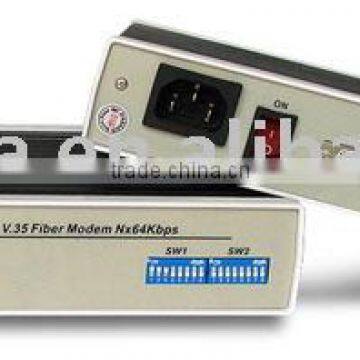

MODEL7304 converts V.35 electrical signal into optical data stream for transport over single mode or multi mode fiber optic cables. V.35 to optic fiber modem. At the opposite end of the fiber, the optical stream is converted back into electrical signals of the appropriate interface such as G.703 & V.35. This fiber optic modem extends the transmission distance up to more than 100Km. The frame format of MOD-V.35 is frame/unframe for E1, so it can be used to transmit E1 signal of frame video or unframe video
Features
1.Transparent transfer V.35 protocol
2.Support N*64Kbps (N=1-32) rate
3.Choice ST, FC, SC optic fiber connector
4.Support optic port line clock, local clock, equipment clock
5.Multi-mode 2KM, signal-mode 20-100KM
Communication

Interface standard	Accord CCITT V.35 standard
Optic fiber signal	TX, RX
Working	Asynchronism, transparent transfer
V.35 port rate	N*64Kbps(N=1-32)
Optic port rate	8.192Mbps
Optic port coding	CMI
Optic fiber wavelength	Multi-mode 850nm, signal-mode 1310nm
Optic port trasmission	Multi-mode 2KM, signal-mode 20-100KM
Interface protection	600W surge protection , 15KV ESD protection
E1 port connector	DB-25 female or M/34 female
Optic port connector	Multi-mode adopt ST connector, signal-mode adopt FC/SC connector

Environment

Working temperature	-25 to 70
Storage temperature	-40 to 85
Humidity	Relative humidity 5% to 95%

Power

Input power	220VAC or -48VDC
Consumption	2.5W

Dimension

L*W*H	227mm*147mm*42mm
Shell	Plastic
Color	Black
Weight	280g
