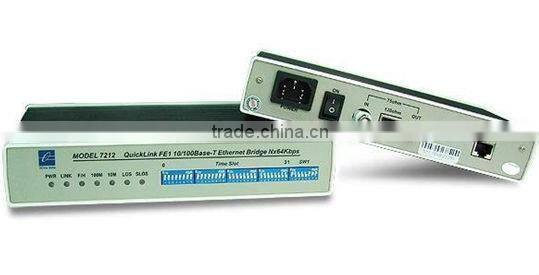

High Speed 10/100M Ethernet to FE1 Converter With 220VAC or -48VDC

Specifications

High Speed 10/100M Ethernet to FE1 converter with 220VAC or -48VDC

MODEL7212 bridge provides easy conversion from ITU-T G.703 E1 channel to Ethernet interface. Can used

widely in connecting between WAN and LAN, monitoring, etc. The Ethernet interface is 10/100Mbps auto negotiation

and can be full/half duplex. The E1 is transparent and in full rate, which can support the E1 unframed mode, including

fractional E1 per request. A pair of MODEL7212 offer a cost effective solution for using existing E1 leased lines for

 transparent Ethernet service. Local management of the MODEL7212

Converter is provided via DIP switches. Front panel LEDs monitor the G.703 link, Ethernet LAN and serial ports for

status and Loss of Sync. MODEL7212 compact G.703 Access Converter provides E1/2.048 Mbps Network Termination

as well as serial or Ethernet LAN interface conversion in a standalone or rack mount package. MODEL7212 terminates

 the G.703 Telco interface and converts the data for transmission to a user-oriented 10/100Base(X) interface.

1.E1 interface

Standard: Comply with ITU-T G.703

Output tingle displace: accord ITU-TG.735 advice

Input tingle limit: accord ITU-TG.823 advice

Output tingle: accord ITU-T G.823 advice

Frame format: unframed

Interface rate: N*64Kbps(N=1~32) rate

CRC checkout: no

Port coding: HDB3

Port transmission: 2KM

Port protection: 1500V electromagnetism isolate

Port connector: 120 Ohm(RJ-45) and 75 ohm(BNC double coaxial)

2.Ethernet port

Interface Types: 10/100BaseT, full/half duplex

Standards Compliance: IEEE 802.3(support VLAN)

Bit Rate: 10/100BaseT limited to Max 2.048 Mbps

Connectors: RJ45 (10/100 Base-T Electrical)

Line code: Manchester Encoding

3.Environment, Power and Dimension

Working temperature: -25 to 70°C

Storage temperature: -40 to 85°C

Humidity: Relative humidity 5% to 95%

Input power: 220VAC or -48VDC

Consumption: 2W

L×W×H: 227.4mm×146.3mm×42.7mm

Weight: 260g

Warranty: 5 years

Approvals: FCC, CE, RoHS

L×W×H:  227.4mm×146.3mm×42.7mm

 Weight: 260g

Packaging: 1pcs/plastic bubble bag+Carton

Shipping:DHL FEDEX UPS TNT or By Sea (our own logistics can help you to save the shipping fee)

Warranty: 5 years
