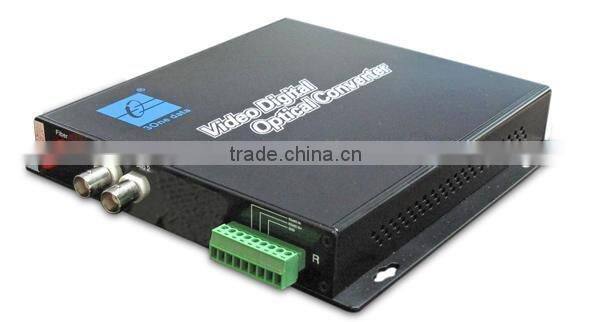

8 Channels Digital Video And1 Reverse Date to Fiber Converter High-resolution Video Signal

Specifications

 8Channels Digital Video and1 reverse date to Fiber Converter high-resolution video signal

1.Specification

3onedata fiber-optic video transceivers SWV60801 series can simultaneously transmit 8 channels of 8-bit digitally encoded broadcast quality video/return or bidirectional data/unidirectional or bidirectional audio/Ethernet/Telephone/Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.

3onedata fiber-optic video transceivers SWV60100 series can simultaneously transmit 1 channel of 8-bit digitally encoded broadcast quality video/return or bidirectional data/unidirectional or bidirectional audio/Ethernet/Telephone/Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.

1.8-bit digitally encoded and non-compression broadcast quality video transmission
2.Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols
3.Support any high-resolution video signal
4.Automatic compatible PAL, NTSC and SECAM video system
5.Power supply and other parameter state indication, which can monitor the operation condition of system
6.Support no-damage regenerative trunk of video
7.Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .
8.Special ASIC design .
9.Industry-grade of operating temperature from -10°C to 65°C , which is applied to the different working environment

10.Hot-swap function

11. Stand-alone type or card-type installed in 19’’4U rack-mount chassis.

 2.Features

Technical Specification
Video channels: 1 channel
Video bandwidth: 8 MHz
Automatic compatible video system: PAL, NTSC, SECAM
Video input/output impedance: 75 ohm(unbalance)
Video signal-to-noise ratio: ≥67dB
Differential gain: (10%-90%APL) DG <1% ( typical value)
Differential phase: (10%-90%APL) DP <0.7° ( typical value)
Video connector: BNC
Fiber-optic Specification
F/O connector: FC/ST/SC
TX : Power:-15 ~ -8dBm   Sensitivity :≤-35dBm
RX: Power:-15 ~ -8dBm   Sensitivity :≤-35dBm
Transmission Distance :20KM (single mode)
Operating Wavelength: TX1310/RX1550nm (Transmitter); TX1550/RX1310nm (Receiver)
Specification of custom-made options
1. Data
Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER:  ≤10-9
2. Audio
Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB  (weighted)
3. Telephone
Connector: RJ11
Bandwidth :8KHZ
Features: Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO
4. Ethernet
Connector: RJ45
Support mode : Half duplex or Full duplex
Standards: IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M
3.Environment, Power and Dimension

Approvals: FCC, CE, RoHS approvals

L×W×H:19.2(L)×17.3(W)×2.8(H) cm

Weight:  30g

Packaging: 1pcs/plastic bubble bag+Carton

Shipping:DHL FEDEX UPS TNT or By Sea (our own logistics can help you to save the shipping fee)

Warranty: 5 years

Approvals:

After sale:50 professional high technical engineer here to solve your any trouble problems once you meet.
