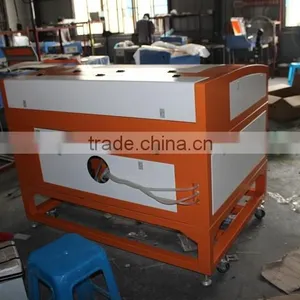

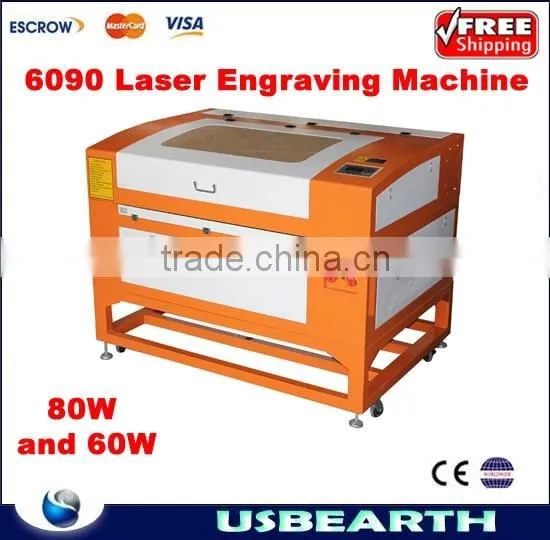

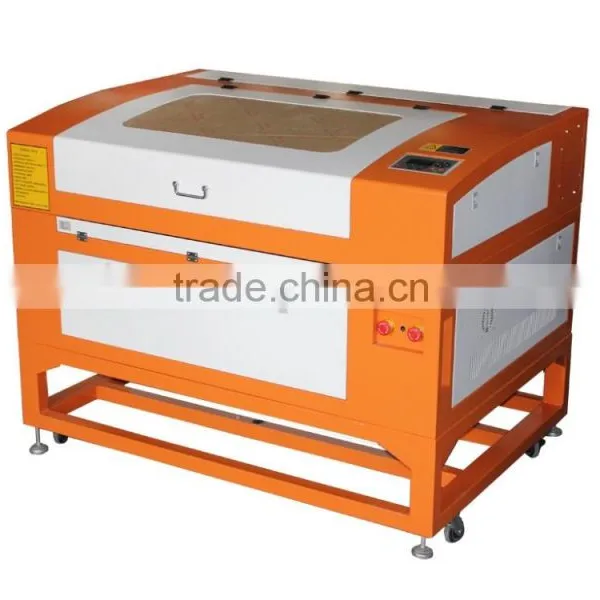

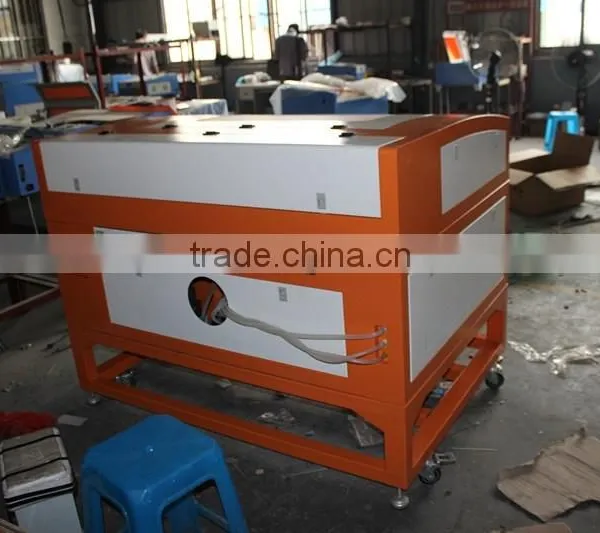

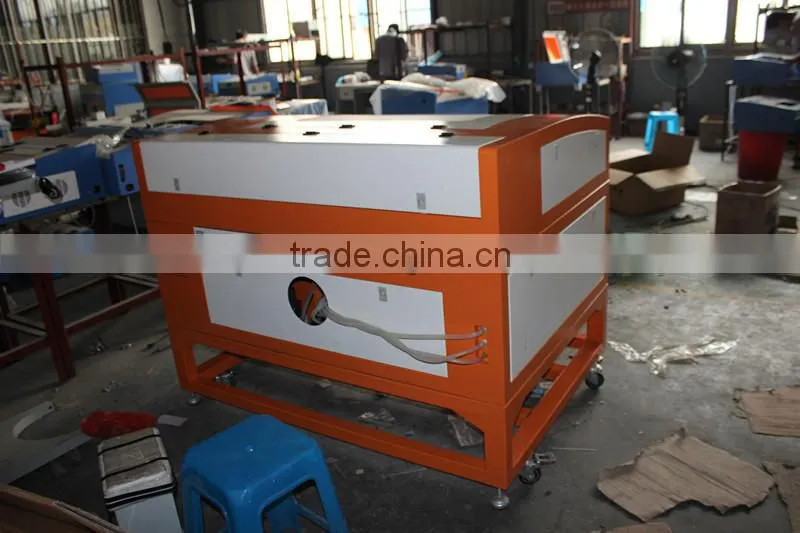

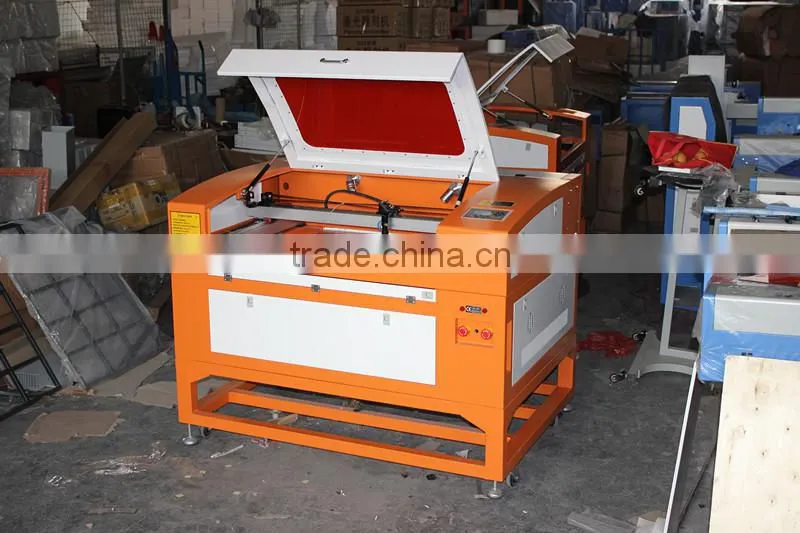

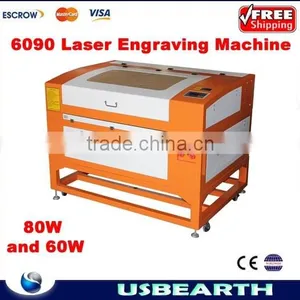

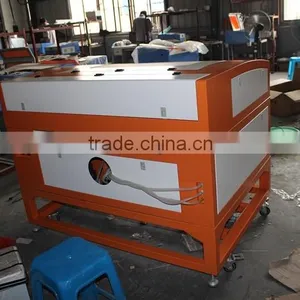

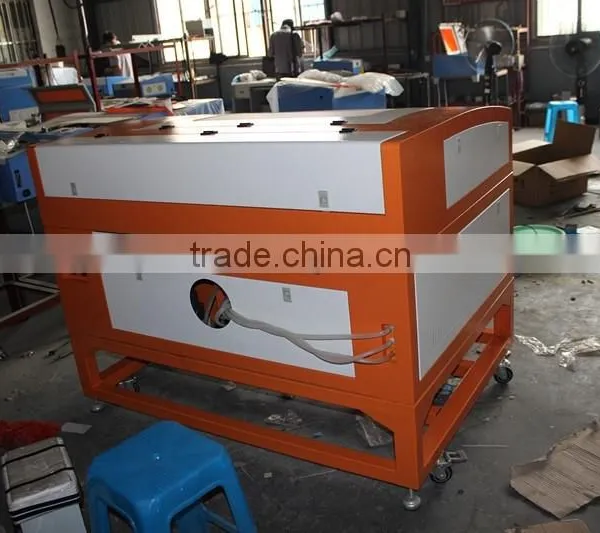

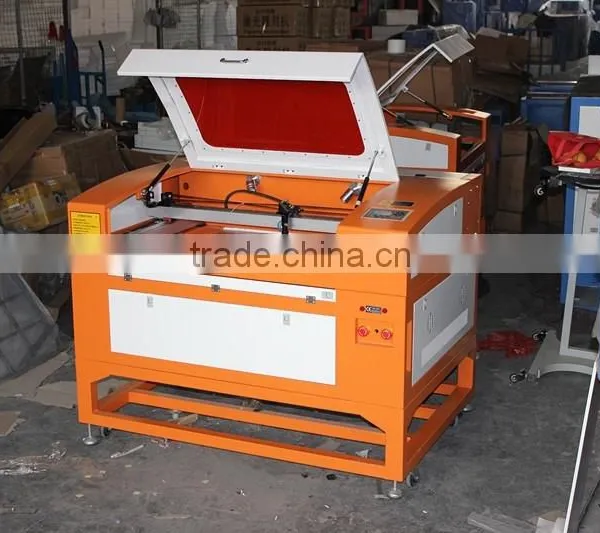

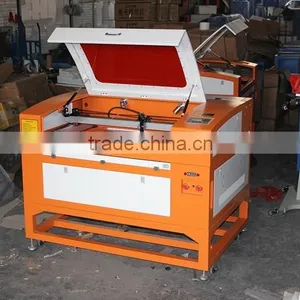

LY 6090 CO2 laser engraving machine
Laser Type:
? Sealed off CO2 laser tube
? Operating humidity: 5-95%
Laser power:
? 60W
? Minimum shaping character: English 1mm, 2mm characters
Engraving area:
? 900 × 600mm
? Graphic format supported: BMP, PLT, DST, DXF, Al
Engraving speed:
? 5-60000mm/min
? Drive mode: digital stepper drive
Repeat positioning accuracy:
? ± 0.1mm
? Cooling: forced circulation water cooling
Operating voltage:
? AC220V ± 10%, 50HZ
? Machine size: 1360 × 1000 × 1050mm
Total power:
? <1,000 W
? Total Weight: 240Kg
Working temperature:
? 0-45 ℃
Product Configuration:
1, using 3mm steel platform consisting of cabinet, the motion system and laser system integration in a plane, so that the mechanical system and the laser system more stable; 2, DSP digital control board chip, compatible with CorelDRAW, CAD direct output, supports BMP, PLT, Al, DST, DXF file formats;
3, using three imported linear guide, 3M belt and using U.S. chip drives with large torque synchronous motor, the cutting precision and more accurate curve workpiece smooth;
4, using a stable and efficient laser power and high-power, small spot, high response lasers, give full play to the potential of the machine;
5, flying optics system uses a wear-resistant metal molybdenum mirrors and imported gathering mirror, greatly reducing the operating costs of the machine;
6, the machine uses the same industry in the first idler gear synchronization, and further improve the precision cutting and machining surface smoothness.
MACHINE SIZE:145*110*112CM
PACKAGE:160*125*127CM
