Detailed Product Description
DGC INFRARED reflow oven PH T-962A
hot sell
IC HEATER,
rework station
T-962A DGC INFRARED reflow oven IC HEATER,rework station
Product description:

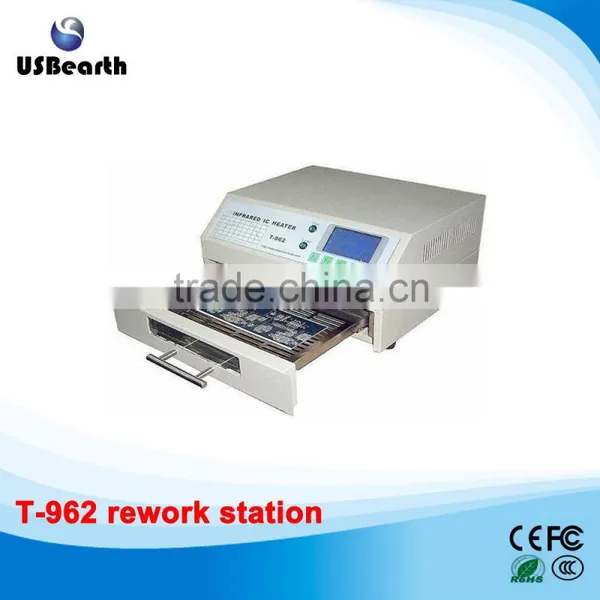

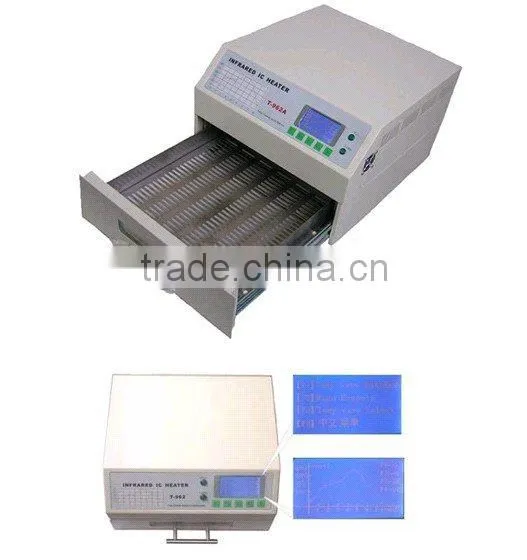

The INFRARED IC HEATE T962 A is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components.The whole soldering process can be completed automatically and it is very easy to use, This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.

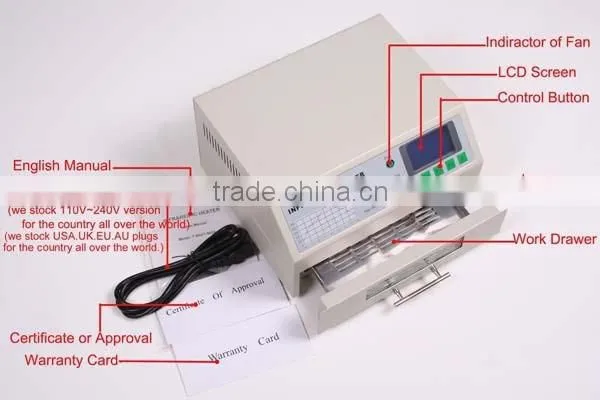

A windowed drawer is designed to hold the work-piece,and allows safe soldering techniques and the manipulation of SMDBGA and other small eletronic parts mounted on a PCB assembly. The T962 may be automatically rework solder to correct bad solder joints,remove/replace bad components and complete small engineering models of prototypes.
Product features
(1) A large infrared soldering area
Effective soldering area:300×320mm;this increases the usage range of this machine drastically and makes it an economical investment.
(2) Choice of different soldering cycles
Parameters of eight solderng cycles are pre defined and the entire soldering process can completed automatically from Preheat,Soak and Reflow through to cool down.
(3) Special heat up and temperature equalization with all designs
Uses up to 1500 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4) Ergonomic design,practical and easily operated
Good build quality but at the same time light weight and a small footprint allows the T962 to be easily bench positioned transported or stored .
(5) Large number of available functions
The T962 can solder most boss-eyed or double-face PCB boards small parts,for example CHIP,SOP,PLCC,QFP,BGA etc.It is the ideal rework solution from single runs to on-demand small batch production.
(6) Technical specifications
Maximum soldering area: 300×320mm
Size: 43×37×26cm
Packing size: 50×43×33cm
Rated power: 1500W
Processing time: 1~8 min
Power Supply: AC220V/50~60HZ
Net weight: 12.5kg
Gross weight: 14kg
