AURON/HEAWELL ABS BV GL DNV ISO OHSAS CE Short Pitch Motor Bike Chain/high Precision Motor Chain/roller Link Chain
US$ 4,500 - 6,000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Other, Alloy, Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AURON/HEAWELL ABS BV GL DNV ISO OHSAS CE Double Chain/ Dual Link Chain/pair Rows Link ChainUS$ 4,500 - 6,000MOQ: 1 Ton -
AURON Stainless Steel Capillary Pipe 316L 9.525mm*0.889mmUS$ 7 - 10MOQ: 100 Kilograms
-
AURON Medium Steel Plate 304 316L 310SUS$ 500 - 5,000MOQ: 100 Tons
-
AURON ASTM A269 316L Stainless Steel Coiled Tubing 3/8"*0.045"US$ 10 - 15MOQ: 1000 Kilograms
-
AURON ASTM A269 2205 Stainless Steel Coiled Tubing 6.0mm*1.0mmUS$ 10 - 100MOQ: 1000 Kilograms
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Other, Alloy, Alloy
Place of Origin
Jiangsu, China
Brand Name
AURON
Model Number
OL-SPC90888935
Short pitch precision roller chain
Size:
| DIN ISO Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin Length | Inner plate depth | Plate thickness | transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 Max | b1 min | d2 Max | L Max | Lc Max | h2 Max | t/T Max | Pt | Q min | Qo | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | Kg/Mtr | |
| 06B-1 | 9.25 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.20 | 1.30 | 9.9 | 10.4 | 0.41 | |
| 08B-1 | 12.70 | 8.51 | 7.75 | 4.45 | 16.70 | 18.2 | 11.80 | 1.60 | 18.0 | 19.4 | 0.69 | |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.9 | 14.7 | 1.70 | 22.4 | 27.5 | 0.93 | |
| 12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 29.0 | 32.2 | 1.15 | |
| 16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.10 | 37.4 | 21 | 4.15/3.1 | 60.0 | 72.8 | 2.71 | |
| 20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.30 | 45.0 | 26.40 | 4.5/3.5 | 95.0 | 106.7 | 3.70 | |
| 24B-1 | 38.1 | 25.40 | 25.40 | 14.63 | 53.40 | 57.8 | 33.20 | 6.0/4.8 | 160.0 | 178.0 | 7.1 | |
| 28B-1 | 44.45 | 27.94 | 30.99 | 15.90 | 65.10 | 69.5 | 36.70 | 7.5/6.0 | 200.0 | 222.0 | 8.50 | |
| 32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.0 | 7.0/6.0 | 250.0 | 277.5 | 10.25 | |
| 40B-1 | 63.50 | 39.37 | 38.10 | 22.89 | 82.20 | 89.2 | 52.96 | 8.5/8.0 | 355.0 | 394.0 | 16.35 | |
| 48B-1 | 76.2 | 48.26 | 5.72 | 29.24 | 99.10 | 107.0 | 63.80 | 12/10 | 560.0 | 621.6 | 25 | |
| 06B-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.40 | 24.40 | 8.20 | 1.30 | 10.24 | 16.9 | 18.7 | 0.77 |
| 08B-2 | 12.70 | 8.51 | 7.75 | 4.45 | 31.20 | 32.2 | 11.80 | 1.60 | 13.92 | 32.0 | 38.7 | 1.34 |
| 10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.10 | 37.5 | 14.70 | 1.70 | 16.59 | 44.5 | 56.2 | 1.84 |
| 12B-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42.0 | 43.6 | 16.0 | 1.85 | 19.46 | 57.8 | 66.1 | 2.31 |
| 16B-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68.0 | 69.3 | 21.0 | 4.15/3.1 | 31.88 | 106.0 | 133.0 | 5.42 |
| 20B-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.80 | 81.50 | 26.40 | 4.5/3.5 | 36.45 | 170.0 | 211.2 | 7.20 |
| 24B-2 | 38.10 | 25.4 | 25.4 | 14.63 | 101.70 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 280.0 | 319.2 | 13.40 |
| 28B-2 | 44.45 | 27.94 | 30.99 | 15.90 | 124.60 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 360.0 | 406.8 | 16.60 |
| 32B-2 | 50.8 | 29.21 | 30.99 | 17.61 | 124.6 | 129.6 | 42.0 | 7.0/6.0 | 58.55 | 450.0 | 508.5 | 21.0 |
| 40B-2 | 63.5 | 39.37 | 38.10 | 22.89 | 154.50 | 161.5 | 52.96 | 8.5/8.0 | 72.29 | 630.0 | 711.9 | 32 |
| 48B-2 | 76.20 | 48.26 | 45.72 | 29.24 | 190.40 | 198.2 | 63.8 | 12/10 | 91.21 | 1000.0 | 1113.0 | 50.0 |
| 06B-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.50 | 34.6 | 8.2 | 1.30 | 10.24 | 24.9 | 30.1 | 1.16 |
| 08B-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45.10 | 46.1 | 11.8 | 1.6 | 13.92 | 47.5 | 57.8 | 2.03 |
| 10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.70 | 54.1 | 14.70 | 1.7 | 16.59 | 66.7 | 84.5 | 2.77 |
| 12B-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 63.1 | 16.0 | 1.85 | 19.46 | 86.7 | 101.8 | 3.46 |
| 16B-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 101.2 | 21.0 | 4.15/3.1 | 31.88 | 160.0 | 203.7 | 8.13 |
| 20B-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.40 | 4.5/3.5 | 36.45 | 250.0 | 290.0 | 10.82 |
| 24B-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.10 | 154.6 | 33.2 | 6.0/4.8 | 48.36 | 425.0 | 493.0 | 20.10 |
| 28B-3 | 44.45 | 27.9 | 30.99 | 15.9 | 184.2 | 188.7 | 36.7 | 7.5/6.0 | 59.56 | 530 | 770.5 | 24.92 |
| 32B-3 | 50.8 | 29.21 | 30.99 | 17.81 | 183.20 | 188.2 | 42.0 | 7.0/6.0 | 58.55 | 670.0 | 770.5 | 31.56 |
| 40B-3 | 63.5 | 39.37 | 38.1 | 22.89 | 226.80 | 233.8 | 52.96 | 8.5/8.0 | 72.29 | 950.0 | 1092.5 | 48.1 |
| 48B-3 | 76.2 | 48.26 | 45.71 | 29.24 | 281.6 | 289.4 | 63.08 | 12/10 | 91.21 | 1500.0 | 1710.0 | 75.0 |

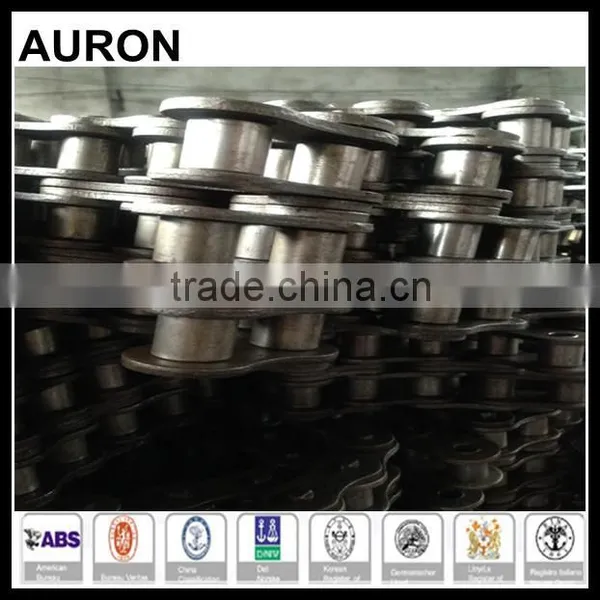

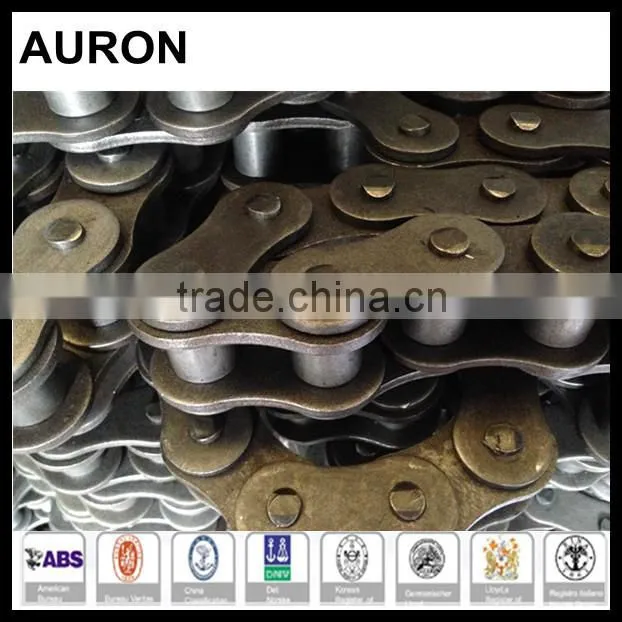

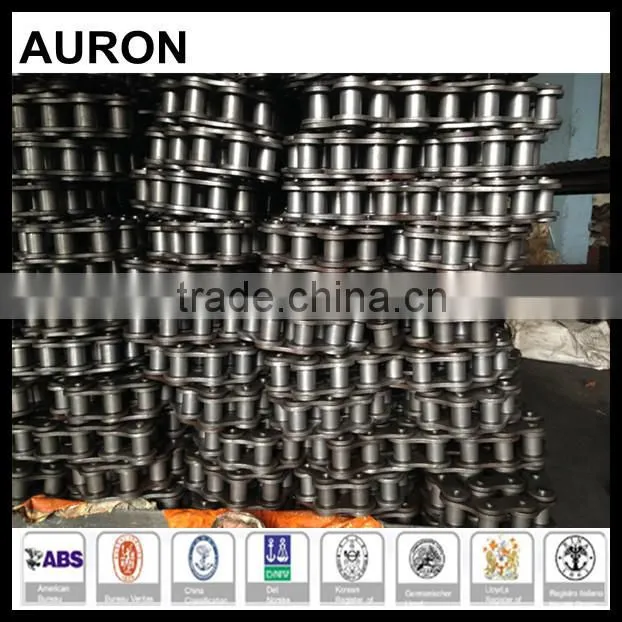

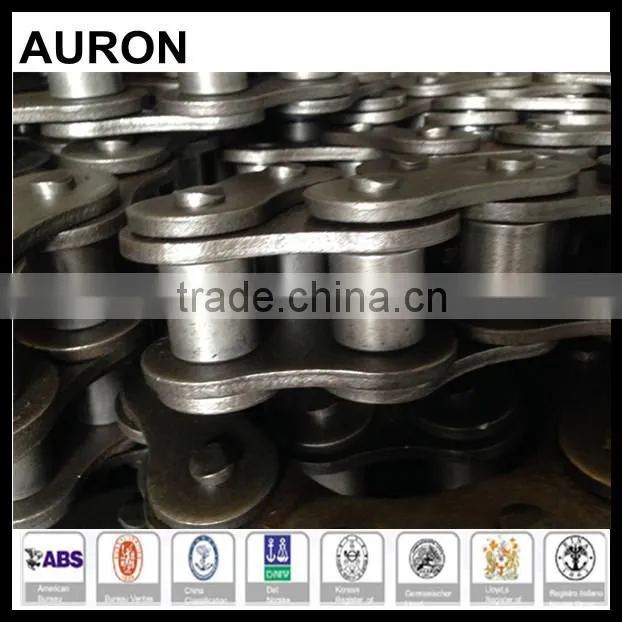

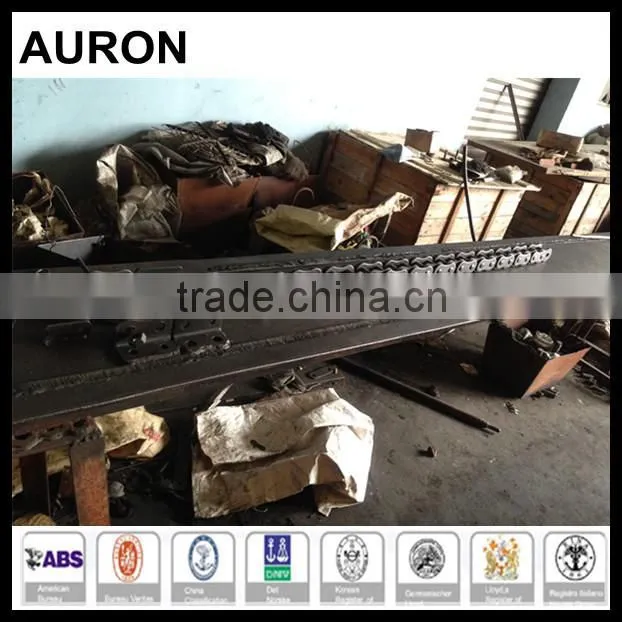

Product photos:
Certificates:
Contact details:
Email: jim(at)
Mobile: +86-13817294993
Tel: +86-21- 61470200
Name: michael
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2001
Factory Size
30,000-50,000 square meters
Total Employees
51 - 100 People
