Detailed description
| Name | High precision stainless steel capillary tube | |||||
| Standard | ASTM A554, A312, A249, A269 and A270 | |||||
| Material Grade | 304,304L,316,316L,202,201 | |||||
| Outer Diameter | 0.25mm-6mm | |||||
| Thickness | 0.08mm-0.5mm | |||||
| Length | 6m or as customers' request | |||||
| Tolerance | a) Outer Diameter: +/- 0.001mm | |||||
| b) Thickness: +/- 0.005mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish)400G, 600G Mirror finish | |||||
| Application | 1)Scientific research 5)Telecom device:miniature antenna tube | |||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
| Payment | 30% T/T as deposit, the balance before shipment or L/C. | |||||
| Delivery time | 10~30 days ,according to the order quantity | |||||
| Packing | Bundled with knitted plastic bag, wooden cases or according to customers' request. | |||||
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | |||
Stainless steel pipe chemical composition
| Grade | Chemical Composition % | ||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | N | |
| 1Cr17Mn6Ni5N (201) | ≤0.15 | 16.00-8.00 | 3.50-5.50 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
| 1Cr18Mn8Ni5N (202) | ≤0.15 | 17.0019.00 | 4.00-6.00 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
0Cr18Ni9 (304) | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
00Cr18Ni10 (304L) | ≤0.03 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
| 0Cr17Ni12Mo2 (316) | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.03 | 2.003.00 | ≤1.0 | |
| 0Cr17Ni14Mo2 (316L) | ≤0.03 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.0 | |

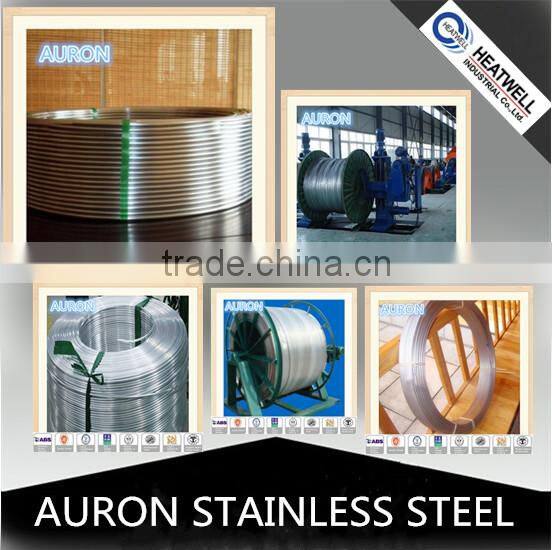

Stianless steel capillary welded pipe

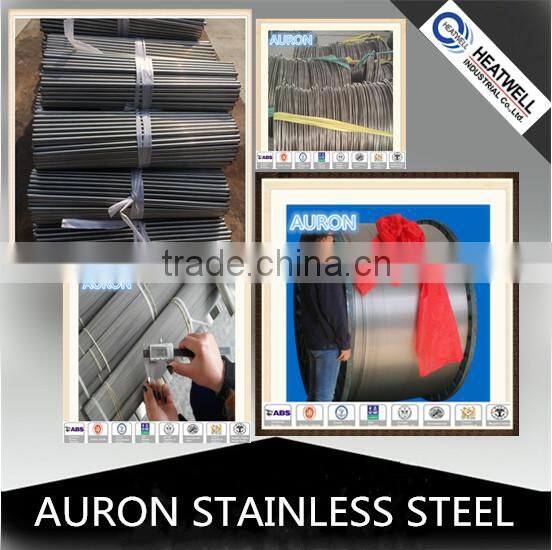

2.Capillary pipe

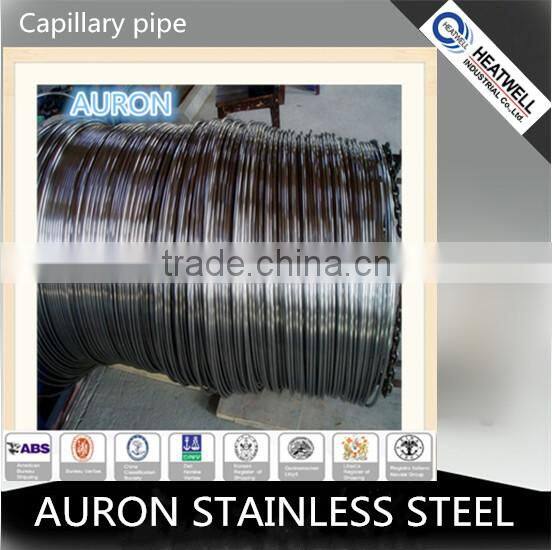

3.Capillary pipe
Production flow chart
My business term
1)Payment term:L/C,T/T.
2)Delivery time:A.S.A.P OR According to your quantity you need.
3)Package:export standard packing,bundled or according to the clients' demand .
The inner size and container is below:20ft GP:5.8m(Length)*2.13m(Width)*2.18m(High)
About 20-26CBM,40ft GP:11.8m(Length)*2.13m(Width)*2.18m(High) 54CBM.
40ft GP:11.8m(Length)*2.13m(Width)*2.72m(High) 65CBM.
Related applications
About us
Our advantage
We would like to introduce us as a professional manufacturer and exporter being of 20 years
experience in stainless steel materials and products.
We have adopted a set of quality control system to ensure the reliability and stability of the
products.We consistently insist on 'quality first and customer first',your satisfactory is our
constant pursuit and goal.
