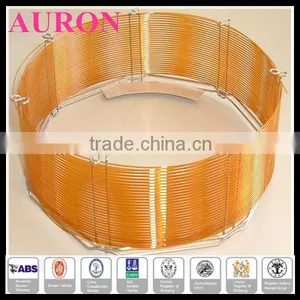

Help CenterAURON Beryllium Copper Tube/high Electrical Conductivity/Copper Aluminium Capillary Tube For Sale
Related Products
-
Capillary Tube Manufacturer/stainless Steel Capillary Tube/capillary TubeUS$ 0.5 - 8MOQ: 200 Meters -
AURON Capillary Stainless Steel Tube/igh Quality Capillary Tube/teel TubeUS$ 0.5 - 8MOQ: 200 Meters
-
AURON High Quality Quartz Glass Capillary Tube/arge Diameter Quartz Glass Tube/lear Quartz Glass TubeUS$ 0.5 - 8MOQ: 200 Meters
-
AURON Capillary Copper Tube/apillary Tube for Refrigerator/opper Tube for AirconditionerUS$ 0.5 - 8MOQ: 200 Meters
-
AURON Stainless Steel Capillary Tube/stainless Steel Precision Tube 304l/small Diameter Copper TubeUS$ 0.5 - 8MOQ: 200 Meters
Detailed description
| Name | High precision stainless steel capillary tube | |||||
| Standard | ASTM A554, A312, A249, A269 and A270 | |||||
| Material Grade | 304,304L,316,316L,202,201 | |||||
| Outer Diameter | 0.25mm-6mm | |||||
| Thickness | 0.08mm-0.5mm | |||||
| Length | 6m or as customers' request | |||||
| Tolerance | a) Outer Diameter: +/- 0.001mm | |||||
| b) Thickness: +/- 0.005mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish)400G, 600G Mirror finish | |||||
| Application |
1)Scientific research 5)Telecom device:miniature antenna tube |
|||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
| Payment | 30% T/T as deposit, the balance before shipment or L/C. | |||||
| Delivery time | 10~30 days ,according to the order quantity | |||||
| Packing | Bundled with knitted plastic bag, wooden cases or according to customers' request. | |||||
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | |||
Stainless steel pipe chemical composition
| Grade | Chemical Composition % | ||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | N | |
| 1Cr17Mn6Ni5N (201) | ≤0.15 | 16.00-8.00 | 3.50-5.50 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
| 1Cr18Mn8Ni5N (202) | ≤0.15 | 17.0019.00 | 4.00-6.00 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
|
0Cr18Ni9 (304) |
≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
|
00Cr18Ni10 (304L) |
≤0.03 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
| 0Cr17Ni12Mo2 (316) | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.03 | 2.003.00 | ≤1.0 | |
| 0Cr17Ni14Mo2 (316L) | ≤0.03 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.0 | |

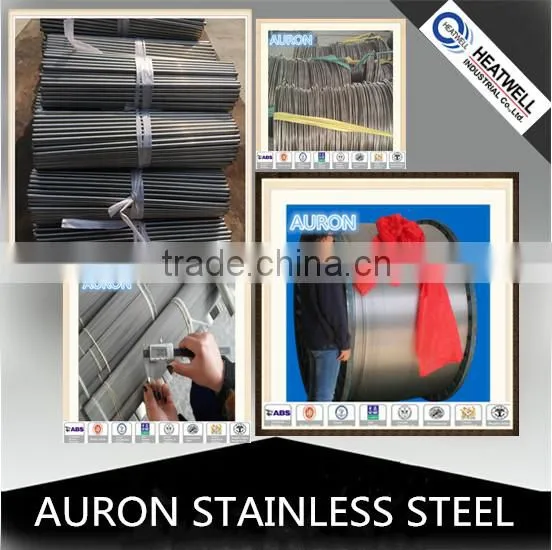

Stianless steel capillary welded pipe

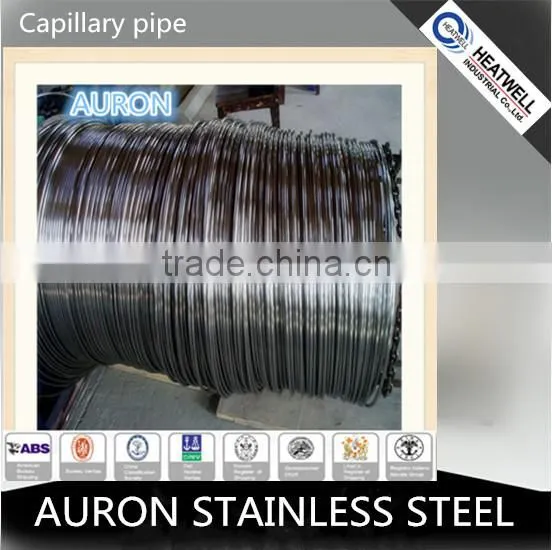

2.Capillary pipe

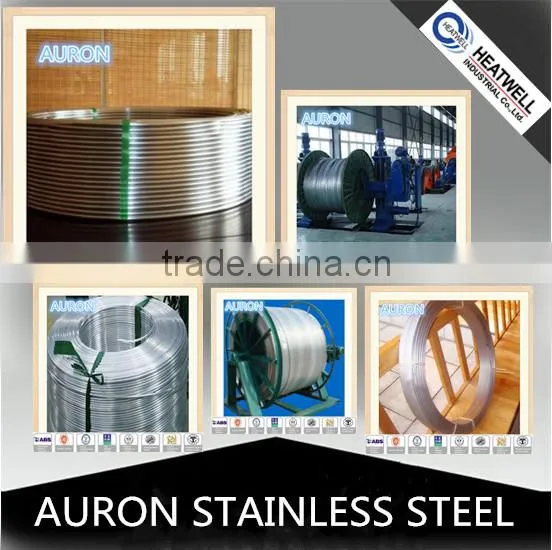

3.Capillary pipe
Production flow chart
My business term
1)Payment term:L/C,T/T.
2)Delivery time:A.S.A.P OR According to your quantity you need.
3)Package:export standard packing,bundled or according to the clients' demand .
The inner size and container is below:20ft GP:5.8m(Length)*2.13m(Width)*2.18m(High)
About 20-26CBM,40ft GP:11.8m(Length)*2.13m(Width)*2.18m(High) 54CBM.
40ft GP:11.8m(Length)*2.13m(Width)*2.72m(High) 65CBM.

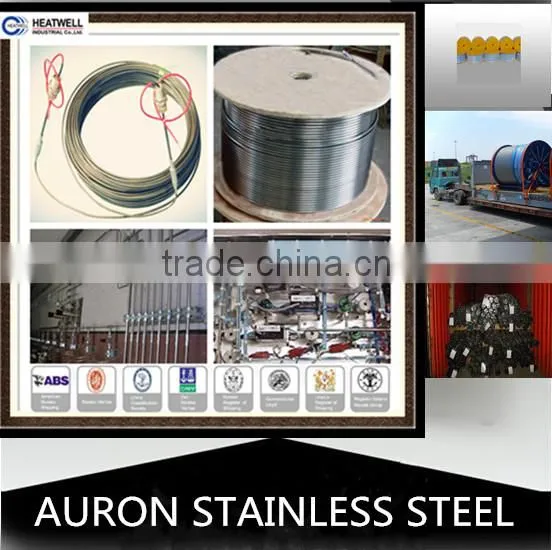

Related applications
About us
Our advantage
We would like to introduce us as a professional manufacturer and exporter being of 20 years
experience in stainless steel materials and products.
We have adopted a set of quality control system to ensure the reliability and stability of the
products.We consistently insist on 'quality first and customer first',your satisfactory is our
constant pursuit and goal.
Thbest route to our company
