wide view angle car rear view camera

Specifications

Mirror view and normal view switchable
Viewing angle: 170 degree
Water-proof,shock-proof and anti-jamming functions

Car rear view camera



KEY FEATURES

• Mirror view and normal view switchable
• Adopt digital high-resolution imaging process: 480TV lines

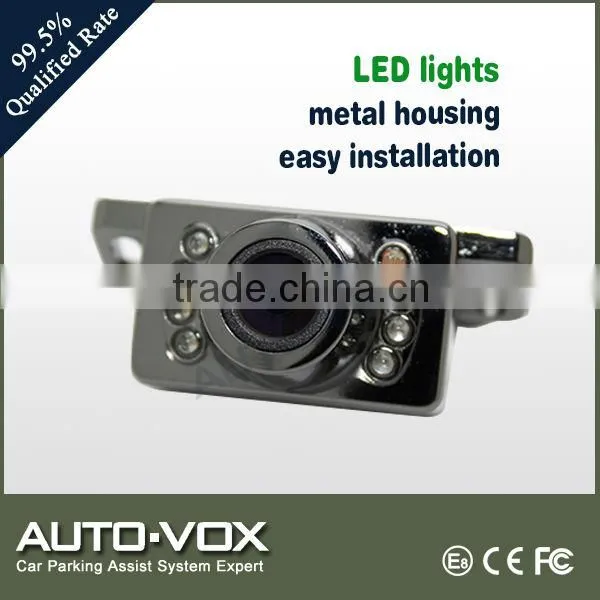

• With  LED  light
•  Automatic white balance function
•  Viewing angle: 170° (Diagonal) * Water-proof,shock-proof and anti-jammifunctions
• Zinc Alloy metal housing, anti-rusted      * Pin nailed installation, suitable for cars
• Dimension: 50 X 30 X 30 mm (L X W X H)

Technical Specifications

Image device	1/4-inch colour
TV system	PAL or NTSC
Resolution	480 TV lines
Electric Shutter	PAL:625Lines.25Field /sec   NTSC :720Lines.25Field/sec
Effective pixels	PAL: 720X 576  NTSC: 720X 480
Minimum illumination	0.3Lux
Viewing angle	170 degrees (diagonal)
S/N ratio	>48dB (AGC-OFF)
Video output	RCA connector, 1.0vp-p, 75ohm
Current consumption	≤120mA
Power supply	DC8V-12V
Operating temperature	-30 to 65 degrees centigrade, RH95% Max.
Storage temperature	-35 to 70 degrees centigrade, RH95% Max.
Other items	automatic white balance, AGC and BLC
Water-proof	Yes, to IP68 standard





Wire Connection



When the camera is to be used for rear view with a monitor to assist with reversing, it should be wired as shown in Figure 2 below.





Camera Installation

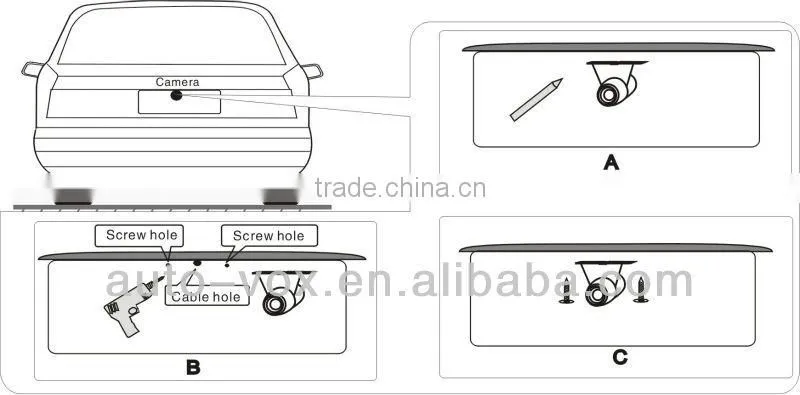

A:Choose the proper position for screw holes and cable hole. Use a marker to mark points for the holes.

B:Use a good quality drill bit to drill the holes at the marked points.

C:Route the cable through the cable hole to the rear compartment and secure the camera with the screws. It is suggested to seal the holes with glass cement.





Mirror view and normal view is switchable



Mirror view and normal view is switchable via a step switch on the power box.



Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.



Mirror view is usually used for rear view while normal view is usually used for front view.
