Backup License Plate Camera for Car for Most American Vehicles

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.view switchable
2.Viewing angle:120 degree
3.Water-proof, anti-jamming functions
4,with led litgt
5,license plate camera

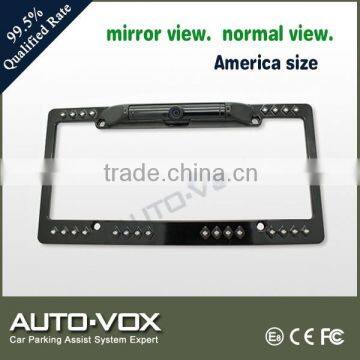

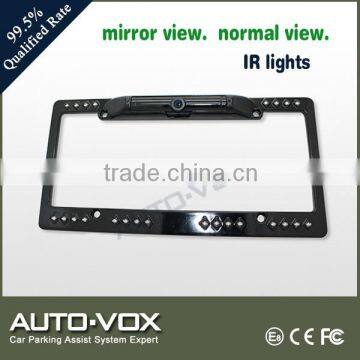

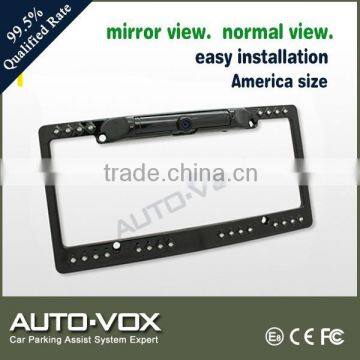

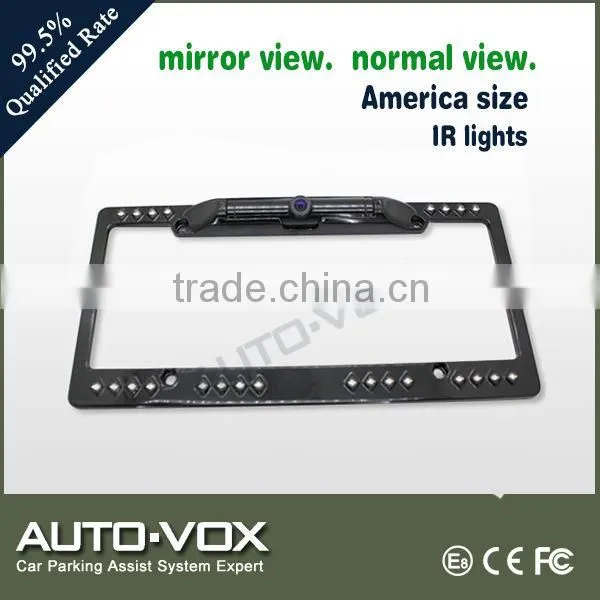

license plate camera for car for most American vehicles

Mirror view and normal view switchable
Adopt digital high-resolution imaging process: 480TV linesExtra-low illumination of 0.3 Lux for clear night visionAutomatic white balance function
Viewing angle:120°
With LED light
Water-proof,shock-proof and anti-jamming functions
Mini size: diameter:18.5mm, length:22mm
Pin nailed installation, hiding mounting at upper side of license-plat

Mirror view and normal view is switchable via a step switch on the power box.

Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.

Mirror view is usually used for rear view while normal view is usually used for front view.

Image device	1/4-inch colour
TV system	PAL or NTSC
Resolution	480 TV lines
Electric Shutter	PAL:625Lines.25Field /sec NTSC :720Lines.25Field/sec
Effective pixels	PAL: 720X 576 NTSC: 720X 480
Minimum illumination	0.3Lux
Viewing angle	120 degrees (diagonal)
S/N ratio	>48dB (AGC-OFF)
Video output	RCA connector, 1.0vp-p, 75ohm
Current consumption	≤120mA
Power supply	DC8V-12V
Operating temperature	-30 to 65 degrees centigrade, RH95% Max.
Storage temperature	-35 to 70 degrees centigrade, RH95% Max.
Other items	automatic white balance, AGC and BLC
Water-proof	Yes, to IP68 standard
