License Plate Backup Camera for Car Camera for Most European Vehicles

License Plate Backup Camera for Car Camera for Most European Vehicles photo-1
License Plate Backup Camera for Car Camera for Most European Vehicles photo-2
License Plate Backup Camera for Car Camera for Most European Vehicles photo-3
License Plate Backup Camera for Car Camera for Most European Vehicles photo-4
License Plate Backup Camera for Car Camera for Most European Vehicles photo-5
License Plate Backup Camera for Car Camera for Most European Vehicles photo-6
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Reverse Camera
Voltage:
DC 12V
Car Make:
All cars
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Reverse Camera
Voltage DC 12V
Car Make All cars
Place of Origin Guangdong, China
Brand Name Auto-vox
Model Number AX-CMD22B
Warranty 18 Months

Specifications

1.view switchable
2.Viewing angle:170 degree
3.Water-proof,
4,with led litgt
5,license plate backup camera.

   license plate backup camera for car camera for most European vehicles









     Key Features

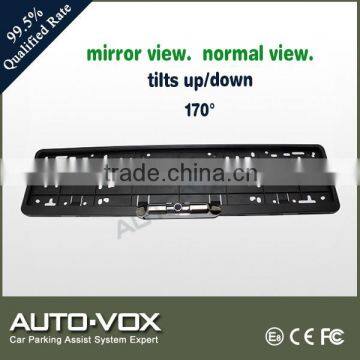

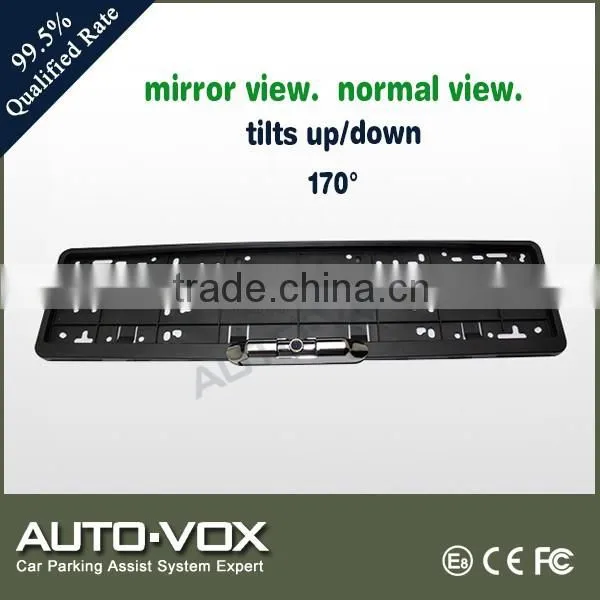

  • Mirror view and normal view switchable
  • Adopt digital high-resolution imaging process: 480TV linesExtra-low illumination of 0.3 Lux for clear night visionAutomatic white balance function
  • Viewing angle:170°
  • With LED light
  • Water-proof,shock-proof and anti-jamming functions

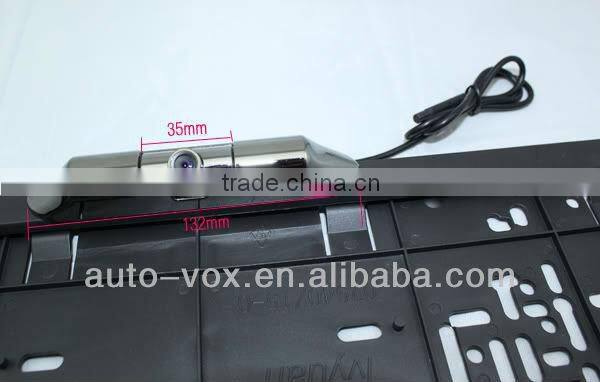

  • Mini size: diameter:18.5mm, length:22mmPin nailed installation, hiding mounting at upper side of
  • license-plat

 Specifications


Image device

 1/4-inch colour

 TV system

 PAL or NTSC

 Resolution

  480 TV lines

 Electric Shutter

PAL:625Lines.25Field /sec   NTSC :720Lines.25Field/sec

 Effective pixels

PAL: 720X 576  NTSC: 720X 480

Minimum illumination

  0.3Lux

Viewing angle

  170 degrees (diagonal)

 S/N ratio

  >48dB (AGC-OFF)

 Video output

  RCA connector, 1.0vp-p, 75ohm

 Current consumption

  ≤120mA

 Power supply

  DC8V-12V

 Operating temperature

  -30 to 65 degrees centigrade, RH95% Max.

 Storage temperature

  -35 to 7degrees centigrade, RH95% Max.

Other items

  automatic white balance, AGC and BLC

Water-proof

  Yes, to IP68 standard










Wire Connection

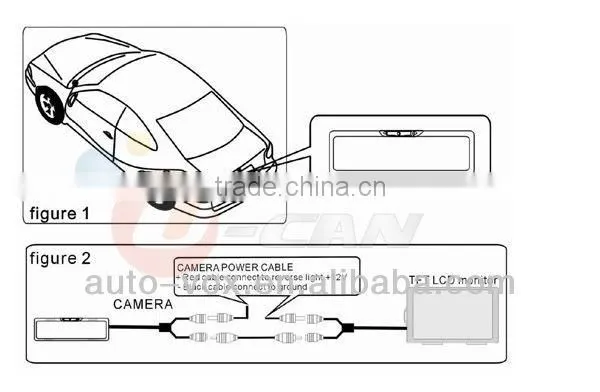

When the camera is to be used for rear view with a monitor to assist with reversing, it should be wired as shown in Figure 2 below.

license plate backup camera for car camera for most European vehicles

 license plate backup camera for car camera for most European vehicleslicense plate backup camera for car camera for most European vehicleslicense plate backup camera for car camera for most European vehicleslicense plate backup camera for car camera for most European vehicles

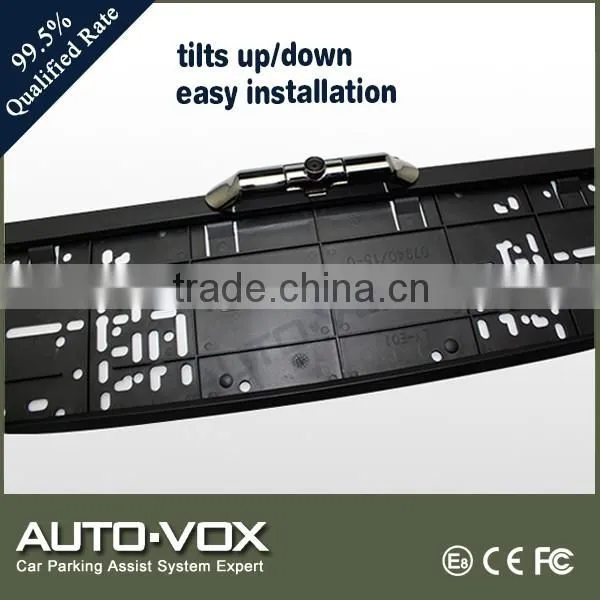

Camera Installation



license plate backup camera for car camera for most European vehicles

A:Choose the proper position for screw holes and cable hole. Use a marker to mark points for the holes.

B:Use a good quality drill bit to drill the holes at the marked points.

C:Route the cable through the cable hole to the rear compartment and secure the camera with the screws. It is suggested to seal the holes with glass cement.

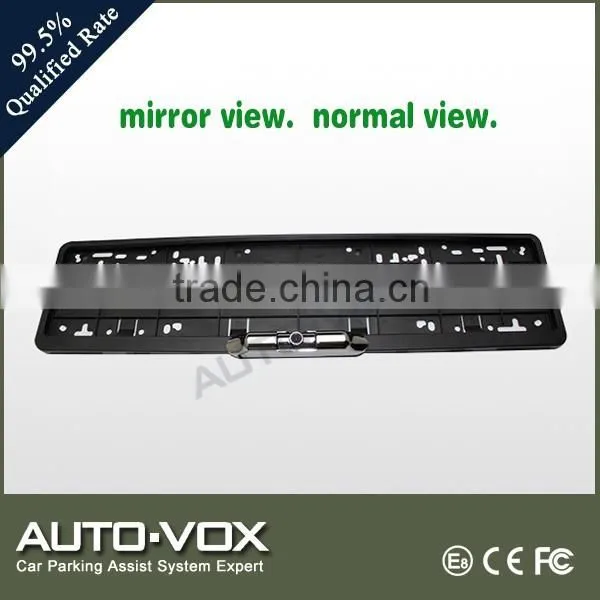

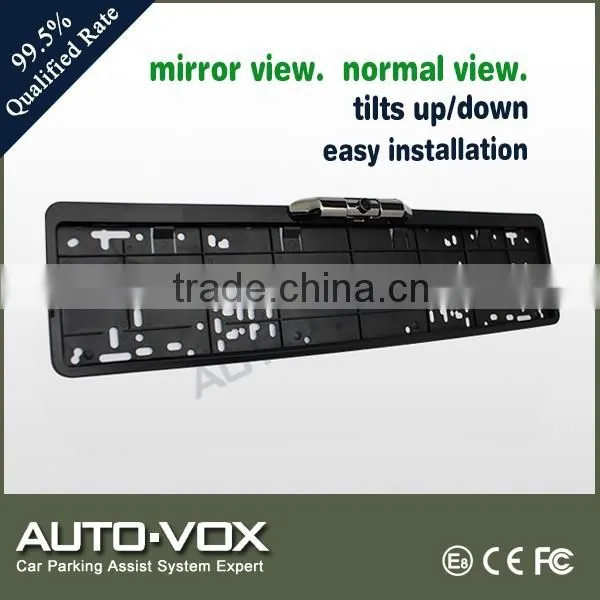

Mirror view and normal view is switchable

license plate backup camera for car camera for most European vehicles

license plate backup camera for car camera for most European vehicles

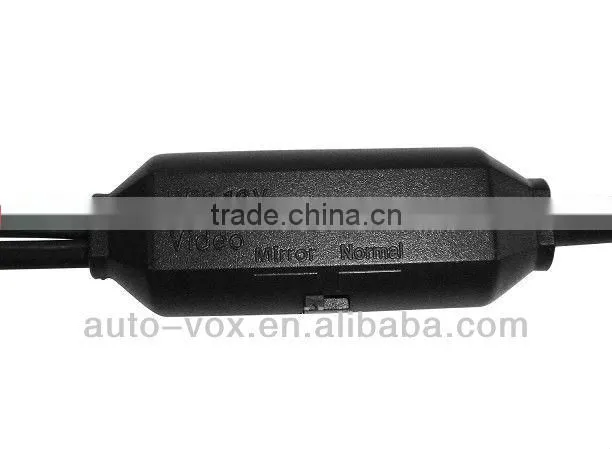

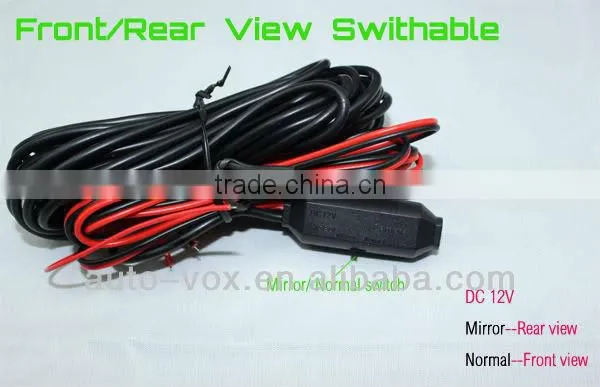

Mirror view and normal view is switchable via a step switch on the power box.



Mirror view is switched on when deliveryYou can switch it to normal view subject to your specific needs.



Mirror view is usually used for rear view while normal view is usually used for front view.
