Specifications
Mirror view and normal view switchableViewing angle: 170 degree
Water-proof,shock-proof and anti-jamming functions

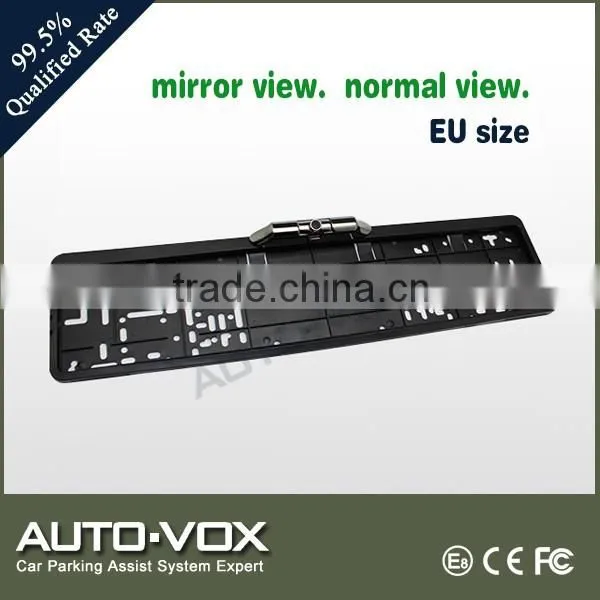

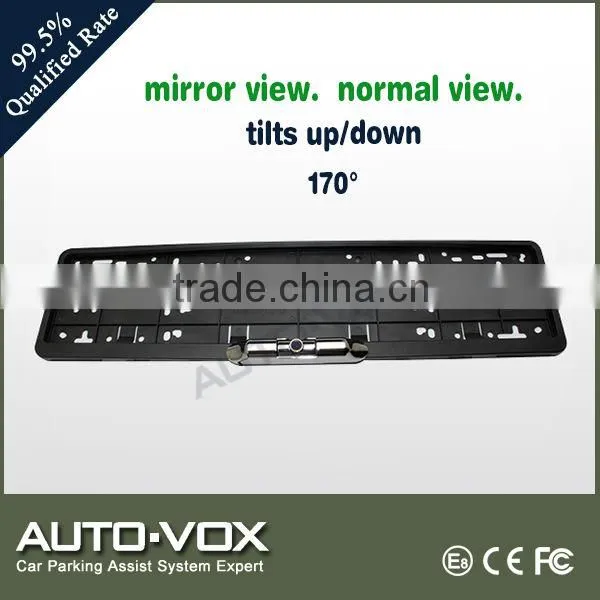

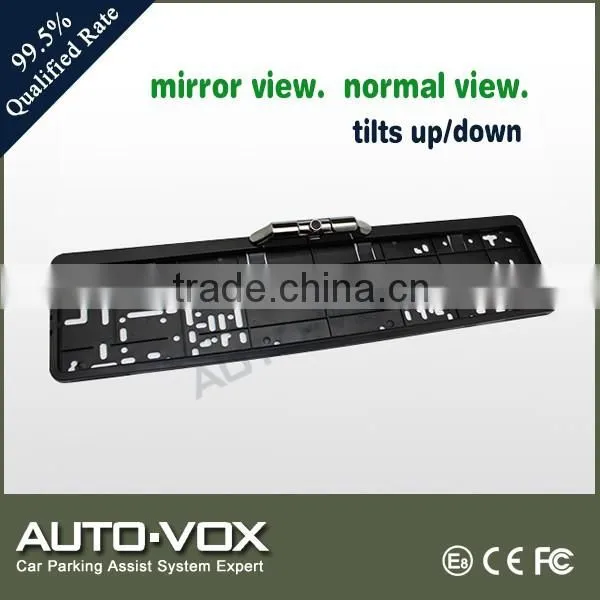

Car rear view camera
KEY FEATURES
- Mirror view and normal view switchable
- Adopt digital high-resolution imaging process: 480TV lines
- Automatic white balance function
- View angle:170° (Diagonal)
- Water-proof,shock-proof and anti-jamming functions
- Camera Tilts Up/Down for Better View
- Easy and Quick Installation
- License frame size suitable for most European vehicles.
- Dimension: 520x110mm(545x145mm)
Technical Specifications
Image device | 1/4-inch colour |
TV system | PAL or NTSC |
Resolution | 480 TV lines |
Electric Shutter | PAL:625Lines.25Field /sec NTSC :720Lines.25Field/sec |
Effective pixels | PAL: 720X 576 NTSC: 720X 480 |
Minimum illumination | 0.3Lux |
Viewing angle | 170 degrees (diagonal) |
S/N ratio | >48dB (AGC-OFF) |
Video output | RCA connector, 1.0vp-p, 75ohm |
Current consumption | ≤120mA |
Power supply | DC8V-12V |
Operating temperature | -30 to 65 degrees centigrade, RH95% Max. |
Storage temperature | -35 to 70 degrees centigrade, RH95% Max. |
Other items | automatic white balance, AGC and BLC |
Water-proof | Yes, to IP68 standard |
Mirror view and normal view is switchable
Mirror view and normal view is switchable via a step switch on the power box.
Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.
Mirror view is usually used for rear view while normal view is usually used for front view.
