10g 7g Ozone Generator for Lab Waste Water Treatment

10g 7g Ozone Generator for Lab Waste Water Treatment thumbnail-1
10g 7g Ozone Generator for Lab Waste Water Treatment thumbnail-2
10g 7g Ozone Generator for Lab Waste Water Treatment thumbnail-3
10g 7g Ozone Generator for Lab Waste Water Treatment thumbnail-4
10g 7g Ozone Generator for Lab Waste Water Treatment thumbnail-5
10g 7g Ozone Generator for Lab Waste Water Treatment thumbnail-6
10g 7g Ozone Generator for Lab Waste Water Treatment photo-1
10g 7g Ozone Generator for Lab Waste Water Treatment photo-2
10g 7g Ozone Generator for Lab Waste Water Treatment photo-3
10g 7g Ozone Generator for Lab Waste Water Treatment photo-4
10g 7g Ozone Generator for Lab Waste Water Treatment photo-5
10g 7g Ozone Generator for Lab Waste Water Treatment photo-6
US$ 1,000 - 1,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Allied Power
Model Number:
HW-O-10
Contact Supplier Request Quote Chat Now
Fujian Allied Power EnTech Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Allied Power
Model Number HW-O-10

7g ozone generator Products introduction

10g 7g ozone generator for lab waste water treatment



7g ozone generator Control system
One-touch operation:Touch screen for human-machine interface which is automatically controlled by microcomputer.









Power System
All Allied Power's ozone generators adopt high- frequency, high-voltage inverter power supply,

The power system manufacture by our own, with the advantages of low comsumption, high efficiency, stability.






Ozone reaction system

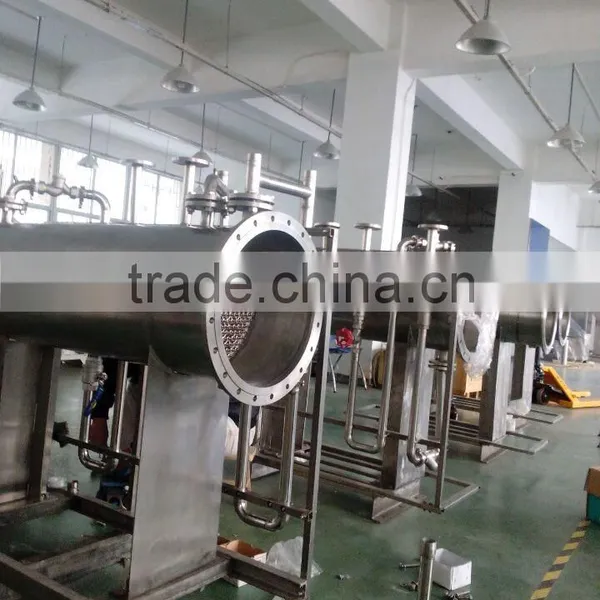

Chamber:Material of chamber is Stainless steel 304, adopts advanced processing technology and CNC precision lathe with good seal performance.

Ozone generation unit: Unlike enamel tubes or traditional big quartz glass tubes, Allied Power introduces smaller quartz glass tubes, with the advantages of high concentration,  less ozone output decay and don't need to replace tubes.

Corona discharge: With smaller quartz glass tubes, Allied Power's ozone generators ozone generate by double micro-gap corona discharge, chamber becomes smaller, efficiency become higher.






 Why Choice Us?

Efficiency& reliable

 Power factor>0.95.

  PFC≥0.95

 The adverage power consumption of per kilogramozone output is  about 7 degree.

 Ozone concentration could reach 230mg/l with pure oxygen asgas feed.

 Multiple abnormality protection. Light alarm system.



 Easy operatiion

  Ozone concentration adjustable.
  Ozone production adjustable.
  Time switch machine Settings, realize unattended.
  Transport gas without any external equipments during certain scope.

  Group control function, digital remote monitoring
  Real-time analysis and system failure diagnosis.




About Us


  With advanced technology, mighty R&D and hard work, Allied Power base on ozone generating mechanism and ozone application research, ozone equipment manufacturing, devote to environmental protection, against industrial pollution.

  Allied Power has developed most efficient and reliable ozone generator with output from 10g/h to 50kg/h. Our ozone generators adopt medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes with micro-discharge chamber and SS304 tubes as dielectric medium, ensure high ozone concentration, stable operation. Not only high technology in ozone generating mechanism, we also own international patents on soft-switch power system. Our  high frequency inverters power rated could over 440KW, high frequency reach 30KHZ.

  Being applications in drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc., our products have widely used in North America, South America, South-East Asia, Middle East and Europe.




Parameters

Air supply Ozone generator
Product Model Ozone Output Flow Of Cooling Water Rated Power Air flow rate
HW-A-10 10g 0.1m3/h 0.2kw 8.3N*L/min
HW-A-20 20g 0.1m3/h 0.4kw 16.7N*L/min
HW-A-30 30g 0.1m3/h 0.6kw 25N*L/min
HW-A-50 50g 0.2m3/h 1kw 41.7N*L/min
HW-A-80 80g 0.3m3/h 1.5kw 66.7N*L/min
HW-A-100 100g 0.4m3/h 1.7kw 83.3N*L/min
HW-A-150 150g 0.6m3/h 2.5kw 7.5N*m3/h
HW-A-200 200g 0.8m3/h 3.4kw 10N*m3/h
HW-A-250 250g 1m3/h 4.4kw 12.5N*m3/h
HW-A-300 300g 1.2m3/h 5.1kw 15N*m3/h
HW-A-500 500g 2m3/h 8.5kw 25N*m3/h
HW-A-800 800g 3.2m3/h 136kw 40N*m3/h
HW-A-1K 1kg 4m3/h 17kw 50N*m3/h
HW-A-1.2K 1.2kg 5m3/h 21kw 60N*m3/h
HW-A-1.5K 1.5kg 6m3/h 26kw 75N*m3/h
HW-A-3K 3kg 12m3/h 51kw 150N*m3/h
HW-A-5K 5kg 20m3/h 85kw 250N*m3/h
HW-A-10K 10kg 40m3/h 170kw 500N*m3/h
HW-A-20K 20kg 80m3/h 340kw 1000N*m3/h


Oxygen supply ozone generator
Product Model Ozone Output Flow Of Cooling Water Rated Power Air flow rate
HW-O-10 10g 0.1m3/h 0.1kw 1.7N*L/min
HW-O-20 20g 0.1m3/h 0.2kw 3.3N*L/min
HW-O-30 30g 0.1m3/h 0.3kw 5N*L/min
HW-O-50 50g 0.1m3/h 0.5kw 8.3N*L/min
HW-O-80 80g 0.15m3/h 0.8kw 13.3N*L/min
HW-O-100 100g 0.2m3/h 0.9kw 16.7N*L/min
HW-O-200 200g 0.4m3/h 1.8kw 2N*m3/h
HW-O-300 300g 1m3/h 2.5kw 3N*m3/h
HW-O-500 500g 1m3/h 4.3kw 5N*m3/h
HW-O-700 700g 1.4m3/h 6kw 7N*m3/h
HW-O-800 800g 1.6m3/h 7kw 8N*m3/h
HW-O-1K 1kg 2m3/h 8.5kw 10N*m3/h
HW-O-2K 2kg 4m3/h 17kw 20N*m3/h
HW-O-2.5K 2.5kg 5m3/h 22kw 25N*m3/h
HW-O-3K 3kg 6m3/h 26kw 30N*m3/h
HW-O-5K 5kg 10m3/h 45kw 50N*m3/h
HW-O-10K 10kg 20m3/h 85kw 100N*m3/h
HW-O-30K 30kg 60m3/h 260kw 300N*m3/h
HW-O-50K 50kg 100m3/h 440kw 500N*m3/h


Ozone water generator
Product Model Ozone Output Flow Of Cooling Water Rated Power Air flow rate
HW-OW-10 10g 0.1m3/h 0.8kw 1.7N*L/min
HW-OW-20 20g 0.1m3/h 0.9kw 3.3N*L/min
HW-OW-30 30g 0.1m3/h 1.1kw 5N*L/min
HW-OW-50 50g 0.1m3/h 2.2kw 8.3N*L/min
