Ozone removal Iron and Manganese from drinking water
- 5000 Set / Sets per Month
- Fuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Allied Power | |
| Model Number | HW-A-100 |
Wooden carton packing
Product Description

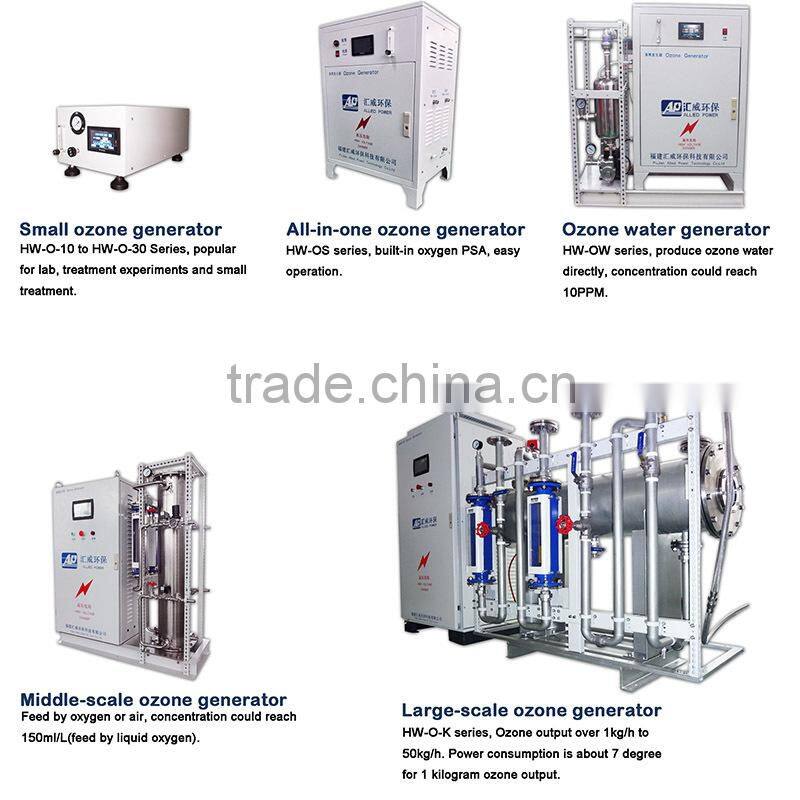

Products introduction
Control system
One-touch operation:Touch screen for human-machine interface which is automatically controlled by microcomputer.
Power System
All Allied Power's ozone generators adopt high- frequency, high-voltage inverter power supply,
The power system manufacture by our own, with the advantages of low comsumption, high efficiency, stability.
Ozone reaction system
Chamber:Material of chamber is Stainless steel 304, adopts advanced processing technology and CNC precision lathe with good seal performance.
Ozone generation unit: Unlike enamel tubes or traditional big quartz glass tubes, Allied Power introduces smaller quartz glass tubes, with the advantages of high concentration, less ozone output decay and don't need to replace tubes.
Corona discharge: With smaller quartz glass tubes, Allied Power's ozone generators ozone generate by double micro-gap corona discharge, chamber becomes smaller, efficiency become higher.
Why Us?
Efficiency& reliable
Power factor>0.95.
PFC≥0.95
The adverage power consumption of per kilogramozone output is about 7 degree.
Ozone concentration could reach 230mg/l with pure oxygen asgas feed.
Multiple abnormality protection. Light alarm system.
Easy operatiion
Ozone concentration adjustable.
Ozone production adjustable.
Time switch machine Settings, realize unattended.
Transport gas without any external equipments during certain scope.
Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.
About Us
Parameters
| Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate | ||||
| HW-A-10 | 10g | 0.1m3/h | 0.2kw | 8.3N*L/min | ||||
| HW-A-20 | 20g | 0.1m3/h | 0.4kw | 16.7N*L/min | ||||
| HW-A-30 | 30g | 0.1m3/h | 0.6kw | 25N*L/min | ||||
| HW-A-50 | 50g | 0.2m3/h | 1kw | 41.7N*L/min | ||||
| HW-A-80 | 80g | 0.3m3/h | 1.5kw | 66.7N*L/min | ||||
| HW-A-100 | 100g | 0.4m3/h | 1.7kw | 83.3N*L/min | ||||
| HW-A-150 | 150g | 0.6m3/h | 2.5kw | 7.5N*m3/h | ||||
| HW-A-200 | 200g | 0.8m3/h | 3.4kw | 10N*m3/h | ||||
| HW-A-250 | 250g | 1m3/h | 4.4kw | 12.5N*m3/h | ||||
| HW-A-300 | 300g | 1.2m3/h | 5.1kw | 15N*m3/h | ||||
| HW-A-500 | 500g | 2m3/h | 8.5kw | 25N*m3/h | ||||
| HW-A-800 | 800g | 3.2m3/h | 136kw | 40N*m3/h | ||||
| HW-A-1K | 1kg | 4m3/h | 17kw | 50N*m3/h | ||||
| HW-A-1.2K | 1.2kg | 5m3/h | 21kw | 60N*m3/h | ||||
| HW-A-1.5K | 1.5kg | 6m3/h | 26kw | 75N*m3/h | ||||
| HW-A-3K | 3kg | 12m3/h | 51kw | 150N*m3/h | ||||
| HW-A-5K | 5kg | 20m3/h | 85kw | 250N*m3/h | ||||
| HW-A-10K | 10kg | 40m3/h | 170kw | 500N*m3/h | ||||
| HW-A-20K | 20kg | 80m3/h | 340kw | 1000N*m3/h | ||||
Oxygen supply ozone generator
| Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate | ||||
| HW-O-10 | 10g | 0.1m3/h | 0.1kw | 1.7N*L/min | ||||
| HW-O-20 | 20g | 0.1m3/h | 0.2kw | 3.3N*L/min | ||||
| HW-O-30 | 30g | 0.1m3/h | 0.3kw | 5N*L/min | ||||
| HW-O-50 | 50g | 0.1m3/h | 0.5kw | 8.3N*L/min | ||||
| HW-O-80 | 80g | 0.15m3/h | 0.8kw | 13.3N*L/min | ||||
| HW-O-100 | 100g | 0.2m3/h | 0.9kw | 16.7N*L/min | ||||
| HW-O-200 | 200g | 0.4m3/h | 1.8kw | 2N*m3/h | ||||
| HW-O-300 | 300g | 1m3/h | 2.5kw | 3N*m3/h | ||||
| HW-O-500 | 500g | 1m3/h | 4.3kw | 5N*m3/h | ||||
| HW-O-700 | 700g | 1.4m3/h | 6kw | 7N*m3/h | ||||
| HW-O-800 | 800g | 1.6m3/h | 7kw | 8N*m3/h | ||||
| HW-O-1K | 1kg | 2m3/h | 8.5kw | 10N*m3/h | ||||
| HW-O-2K | 2kg | 4m3/h | 17kw | 20N*m3/h | ||||
| HW-O-2.5K | 2.5kg | 5m3/h | 22kw | 25N*m3/h | ||||
| HW-O-3K | 3kg | 6m3/h | 26kw | 30N*m3/h | ||||
| HW-O-5K | 5kg | 10m3/h | 45kw | 50N*m3/h | ||||
| HW-O-10K | 10kg | 20m3/h | 85kw | 100N*m3/h | ||||
| HW-O-30K | 30kg | 60m3/h | 260kw | 300N*m3/h | ||||
| HW-O-50K | 50kg | 100m3/h | 440kw | 500N*m3/h | ||||
Ozone water generator
| Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate | ||||
| HW-OW-10 | 10g | 0.1m3/h | 0.8kw | 1.7N*L/min | ||||
| HW-OW-20 | 20g | 0.1m3/h | 0.9kw | 3.3N*L/min | ||||
| HW-OW-30 | 30g | 0.1m3/h | 1.1kw | 5N*L/min | ||||
| HW-OW-50 | 50g | 0.1m3/h | 2.2kw | 8.3N*L/min | ||||
Don't hesitate to contact us!
Email: sharon(at)
Skype: sharonhuangqin
Wechat: sharonhuangqin1988
Whatapp:86-15960140661
Company Profile
Allied Power En Tech Co.,Ltd founded sincere 2004. We main R&D and produce 10g/h to 50Kg/h ozone generators, high frequency ozone generator power supply and ozonated water machines. Our ozone generator technologies as similar as Wedeco. Our ozone generators adpot medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes and SS304 tubes as dielectric medium. High dielectic constant could ensure the ozone generator working stable and produce high concentration ozone. Our highest ozone generator concentration could reach 230mg/l. And our ozonated water machine could produce 10ppm ozonated water. By the way, We are also the only one who can produce unit high frequency invertor over 250KW and highest frequency could reach 30KHZ. We cater to diversified industries and applications, which include drinking water treatment, sewage treatment, swimming pools, public fields in hospitals, pharmaceutical factory, paper making for pulp bleaching, printing and dyeing, tower cooling water, ozonated olive oil and essential oil, waste gas odor removal,food and beverage water and air purification etc.
