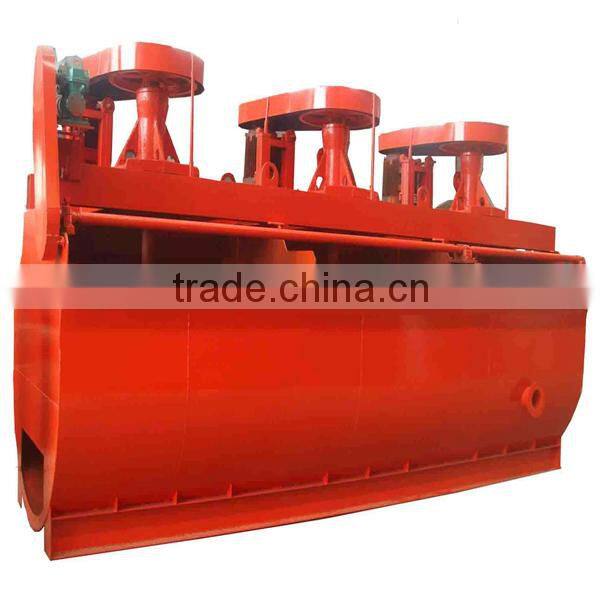

gold flotation separator machine/flotation machine
Application:
The mineral product flotation machine is widely applied in the rough selection, secondary selection and counter flotation selection of copper, lead, zinc, nicket, molybdenum and other non ferrous metal and black metal.
Working principle:

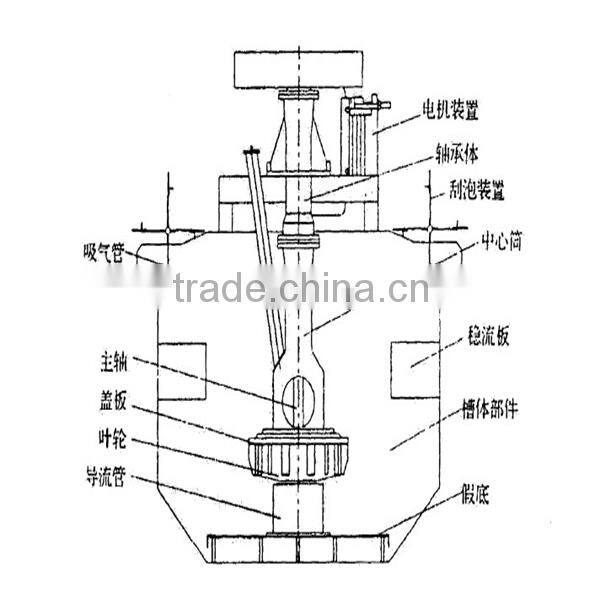

Flotation machine begin producing centrifugal force when it is driven by motor triangle. And the centrifugal force form a negative pressure, which inhale enough air to mix with the slurry on the one hand and stir the pulp and medicine on the other hand. Mixing and stiring get enough bubble and the pulp would adhere to the bubble. Then adjust the height of the gate, control the liquid level and make the useful foam to be blown out.
Features:
- Simple operation, high degree of automation
- Low peripheral speed of the impeller, long life of the impeller
- Inhale large amount of air, foam move quickly
- Maintenance costs and production costs are low
Main technical parameters one:
Model |
XJK-0.35(3A) |
XJK-0.62(4A) |
XJK-1.1(5A) |
XJK-2.8(6A) |
XJK-5.8(7A) |
||
Effective cubage(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
||
Production capacity(m3/min) |
0.18-0.4 |
0.3-0.9 |
0.6-1.6 |
1.5-3.5 |
3-7 |
||
Rotation speed(r/min) |
470 |
400 |
330 |
280 |
240 |
||
Blade diameter(mm) |
300 |
350 |
500 |
600 |
750 |
||
Motor |
Model |
Rotor |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6 |
Scraping plate |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(kw) |
Blade Motor |
1.5 |
3 |
5.5 |
11 |
22(30) |
|
Scraping plate motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Weight(t/single trough) |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 |
||
Main technical parameters two:
Model |
SFO.37 |
SFO.7 |
SF1.2 |
SF2.8 |
SF4 |
||
Trough capacity(m3) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
||
Production capacity(m3/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
||
Rotation speed(r/min) |
352 |
400 |
312 |
268 |
238 |
||
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
||
Motor |
Model |
one |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
two |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(kw) |
one |
1.5 |
3 |
5.5 |
11 |
15 |
|
two |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Weight(kg/single trough) |
468 |
600 |
1373 |
2338 |
2660 |
||
Pre-services:
According to your demand, we provide a professional advice and plan.
Sale services:
Provide good price and good quality of the products, we would make sure the products reach a its quality standard before shipping.
After sale services:
l Experienced professional workers are available to guide and train your employees about how to install and operate equipment as well as detailed installing drawing.
l We are responsible for all the repairs that caused by our quality problems (if reasonable operation) within one year's warranty.
