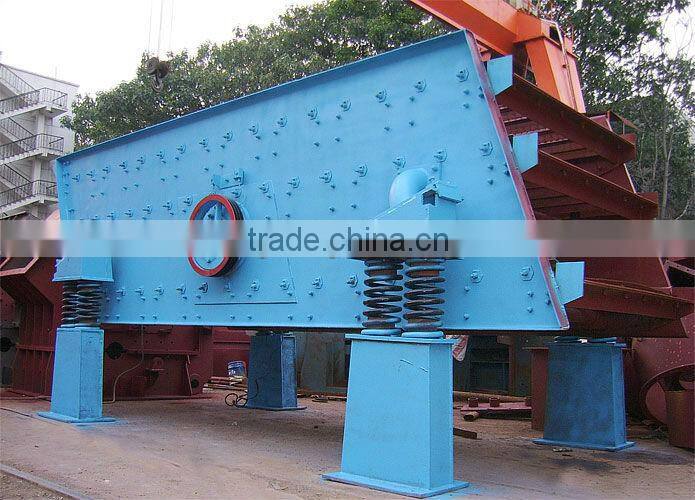

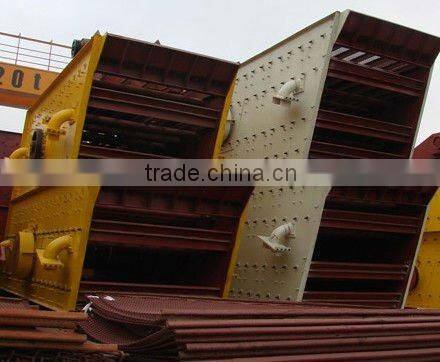

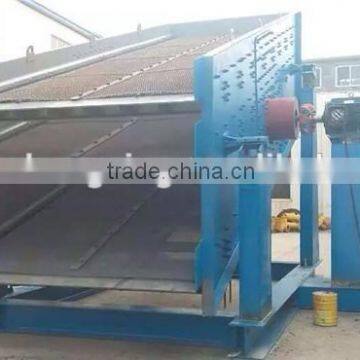

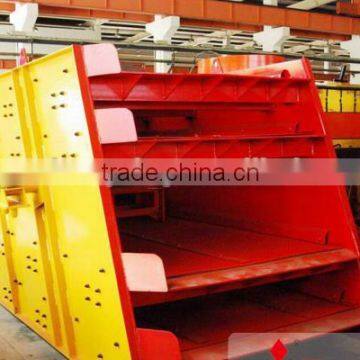

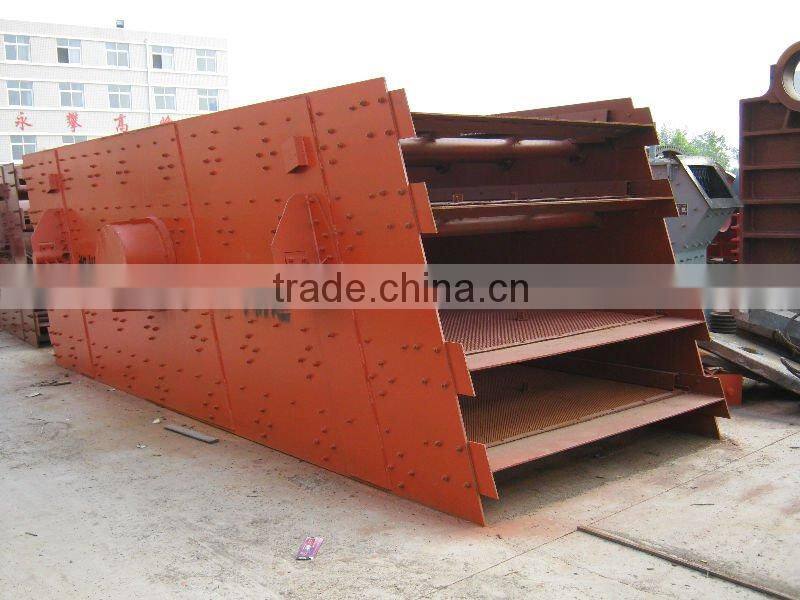

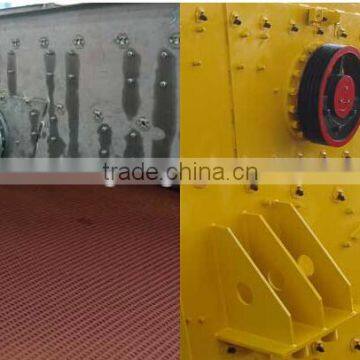

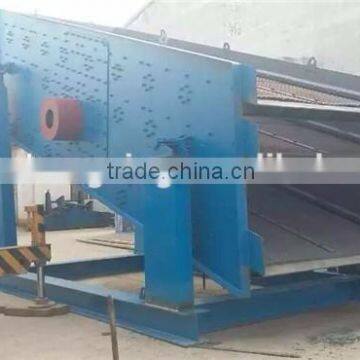

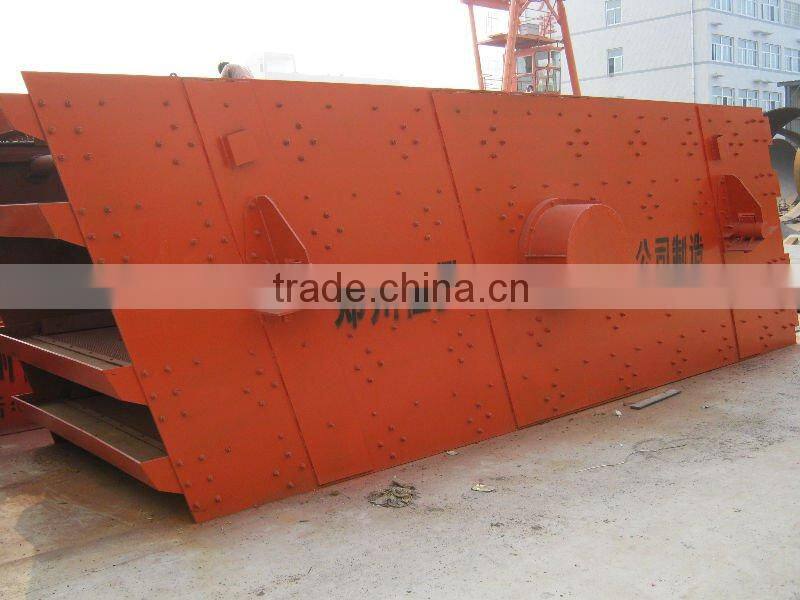

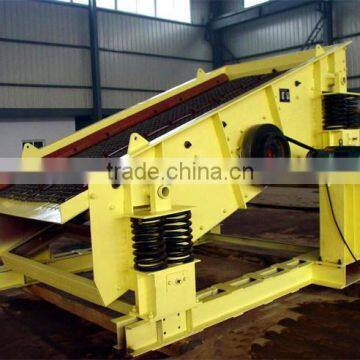

Skid Chasis Vibrating Screen For Seasand Grading
- 50 Set / Sets per Month
- Tianjin port China
- T/T
Product Details
Condition: | New | Type: | Circular | Application: | Other, sand |
Place of Origin: | Henan, China | Brand Name: | HENGXING skid chasis vibrating screen | Model Number: | 4YZA1860 |
Voltage: | 220V/380V | Power(W): | 11kw | Dimension(L*W*H): | Standard |
Weight: | 9100kg | Certification: | ISO9001:2008&CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
vibrating screen
vibrating screen

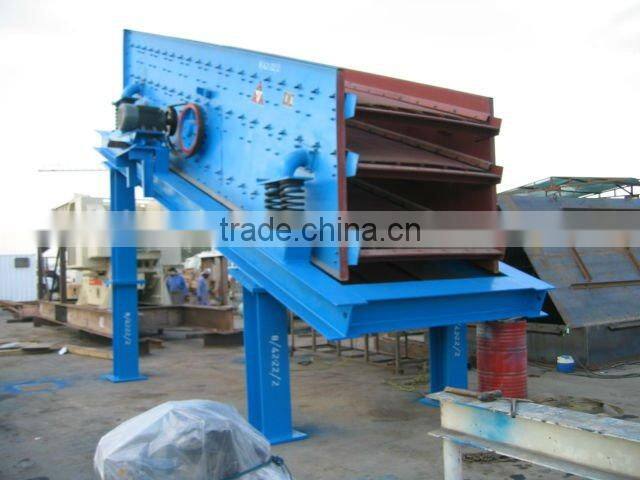

The round vibrating screen or the circular vibrating screen is a high efficient vibrating screen with many layers. Vibrating screens,which often used to separate sand and stones. The round vibrating screen can also be applied in the industries of coal dressing, ore beneficiation, construction material, electric power and chemical engineering.
Working Principle

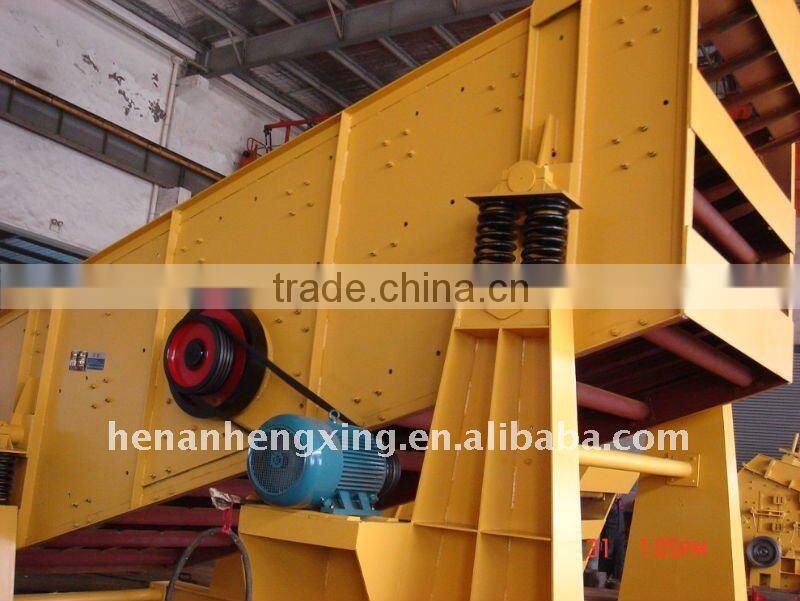

The eccentric block of the exciter is driven by the motor via the triangle belt to rotate at high speed. The rotary eccentric blocks produce great centrifugal force which forces the screening box to move in circles with certain amplitude. Materials on the leaning screen surface are impacted to continuously do casting or throwing motions. Small particles pass through the screen holes of circular vibrating screen when meeting the screen surface, thus completing the separating process.
Parameter of vibrating screen
Type | Screen size (mm) | Layers No. | Screen mesh | Max feed size (mm) | Capacity (t/h) |
Power | Frequency (r/min) |
YZS1235 | 3500x1200 | 1 | 3-50 | 200 | 10-120 | 11 | 870 |
2YZA1237 | 3700x1200 | 2 | 3-50 | 200 | 10-120 | 11 | 870 |
2YZA1548 | 4800x1500 | 2 | 3-100 | 400 | 30-275 | 15 | 870 |
3YZA1548 | 4800x1500 | 3 | 3-100 | 400 | 30-275 | 15 | 870 |
2YZA1848 | 4800x1800 | 2 | 3-100 | 400 | 56-330 | 18.5 | 870 |
3YZA1848 | 4800x1800 | 3 | 3-100 | 400 | 56-330 | 18.5 | 870 |
2YZA1860 | 6000x1800 | 2 | 3-100 | 400 | 65-586 | 22 | 870 |
3YZA1860 | 6000x1800 | 3 | 3-100 | 400 | 65-586 | 22 | 870 |
4YZA1860 | 6000x1800 | 4 | 3-100 | 400 | 65-586 | 22 | 870 |
2YZA2160 | 6000x2100 | 2 | 3-100 | 400 | 81-720 | 30 | 870 |
3YZA2160 | 6000x2100 | 3 | 3-100 | 400 | 81-720 | 30 | 870 |
4YZA2160 | 6000x2100 | 4 | 3-100 | 400 | 81-720 | 30 | 870 |
2YZA2460 | 6000x2400 | 2 | 3-150 | 400 | 100-810 | 37 | 700-900 |
3YZA2460 | 6000x2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 |
4YZA2460 | 6000x2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 |
Introduction and application of circular vibrating screen
The round vibrating screen or the circular vibrating screen is a high efficient vibrating screen with many layers. Circular vibrating screen adopts the cylinder eccentric shaft exciter and the amplitude adjustment device. Its material screening line is quite long and there are many types of screening specifications. The rotary vibrating screen can also be applied in the industries of coal dressing, ore beneficiation, sand classifier,construction material, electric power and chemical engineering.
Welcome to inquiry our Skid Chasis Vibrating Screen For Seasand Grading.
Contact :Ms Sara
Mobile phone : (whatsapp number): 0086137 8347 1727
Skype: sarapang6
Wechat: sarapang6
Contact Us
- Zhengzhou Hengxing Heavy Equipment Co., Ltd.
- Contact nameSara Pang
- Phone0086-371-67858720
- AddressNo.8 Hongye Road.West Hehuan Street. High -Tech Development Zone. Zhengzhou.China Zhengzhou,Henan
