safe operation china good vibrating screen with low price for sale
- 50 Set / Sets per Month
- Qingdao port China or Tianjin or other
- T/T
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | hengxing | Model Number: | 2YZA1237 |
Voltage: | 220V/380V | Power(W): | 11kw | Dimension(L*W*H): | Standard |
Weight: | 500kg | Certification: | ISO9001:2008&CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

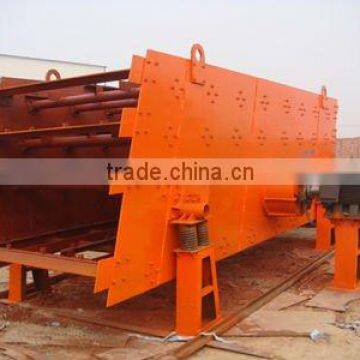

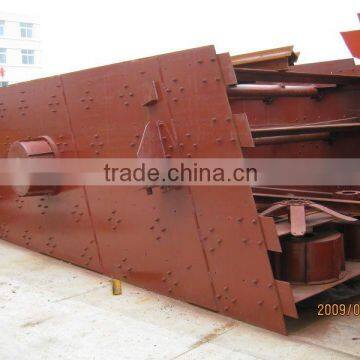

vibrating screen
vibrating screen
The round vibrating screen or the circular vibrating screen is a high efficient vibrating screen with many layers. Vibrating screens,which often used to separate sand and stones. The round vibrating screen can also be applied in the industries of coal dressing, ore beneficiation, construction material, electric power and chemical engineering.
Working Principle
The eccentric block of the exciter is driven by the motor via the triangle belt to rotate at high speed. The rotary eccentric blocks produce great centrifugal force which forces the screening box to move in circles with certain amplitude. Materials on the leaning screen surface are impacted to continuously do casting or throwing motions. Small particles pass through the screen holes of circular vibrating screen when meeting the screen surface, thus completing the separating process.
Parameter of vibrating screen
Type | Screen size (mm) | Layers No. | Screen mesh | Max feed size (mm) | Capacity (t/h) |
Power | Frequency (r/min) |
YZS1235 | 3500x1200 | 1 | 3-50 | 200 | 10-120 | 11 | 870 |
2YZA1237 | 3700x1200 | 2 | 3-50 | 200 | 10-120 | 11 | 870 |
2YZA1548 | 4800x1500 | 2 | 3-100 | 400 | 30-275 | 15 | 870 |
3YZA1548 | 4800x1500 | 3 | 3-100 | 400 | 30-275 | 15 | 870 |
2YZA1848 | 4800x1800 | 2 | 3-100 | 400 | 56-330 | 18.5 | 870 |
3YZA1848 | 4800x1800 | 3 | 3-100 | 400 | 56-330 | 18.5 | 870 |
2YZA1860 | 6000x1800 | 2 | 3-100 | 400 | 65-586 | 22 | 870 |
3YZA1860 | 6000x1800 | 3 | 3-100 | 400 | 65-586 | 22 | 870 |
4YZA1860 | 6000x1800 | 4 | 3-100 | 400 | 65-586 | 22 | 870 |
2YZA2160 | 6000x2100 | 2 | 3-100 | 400 | 81-720 | 30 | 870 |
3YZA2160 | 6000x2100 | 3 | 3-100 | 400 | 81-720 | 30 | 870 |
4YZA2160 | 6000x2100 | 4 | 3-100 | 400 | 81-720 | 30 | 870 |
2YZA2460 | 6000x2400 | 2 | 3-150 | 400 | 100-810 | 37 | 700-900 |
3YZA2460 | 6000x2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 |
4YZA2460 | 6000x2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 |
Introduction and application of circular vibrating screen
The round vibrating screen or the circular vibrating screen is a high efficient vibrating screen with many layers. Circular vibrating screen adopts the cylinder eccentric shaft exciter and the amplitude adjustment device. Its material screening line is quite long and there are many types of screening specifications. The rotary vibrating screen can also be applied in the industries of coal dressing, ore beneficiation, sand classifier,construction material, electric power and chemical engineering.
Service
Pre-services:
According to your demand, we provide a professional advice and plan.
Sale services:
Provide good price and good quality of the products, we would make sure the products reach a its quality standard before shipping.
After sale services:
l Experienced professional workers are available to guide and train your employees about how to install and operate equipment as well as detailed installing drawing.
l We are responsible for all the repairs that caused by our quality problems (if reasonable operation) within one year's warranty.
