BBQ Charcoal Briquette Machine Manufacturer

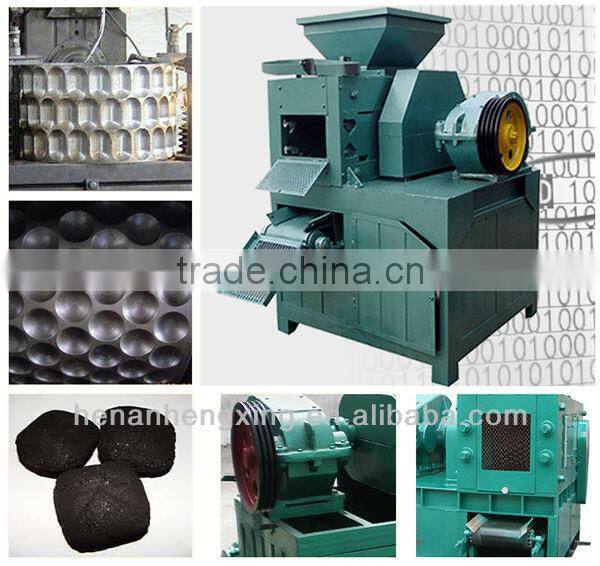

Coal briquette machine brief introduction:
Briquette machine is the machine transforming of a powder or granular material into larger size or much more convenient size by a briquette machine. This is accomplished by compacting the material with roller press, sometimes, adding binder material. The briquettes can be produced by high or low pressure, and can undergo mechnical or thermal treatment, according to the characteristics of the processed material.
Briquette machine is also named as briquette maker, briquette making machine. This double pressing briquette press supplied by Hengxing company has obtained national patent in China and is widely applied in the briquetting production: it can supply high pressure and make charcoal briquettes and many various other briquette product (oval, square and pillow shape) using coal, coke, anthracite and various types of mineral/ore powder, coal dust as the raw materials.
Feature of Coal Briquette Machine, coal ball press machine, coal briquette making machine:
1. Hydraulic pressure is available
2. Manganese steel Alloy roller
3. High density of briquette
4. Compact structure and durable quality
5. Low consumption
6. Capacity from 4ton/h to 70ton/h for single machine
Application of Coal Briquette Machine, coal briquette making machine:
coal briquette machine can be used to suppress the pulverized coal, iron, coal, aluminum, iron,
iron oxide, carbon powder, charcoal powder, slag, gypsum, tailings, sewage sludge, kaolin,
activated carbon, coke powdersuch as powder, powder, waste, waste residue
Main Technical Parameters of coal briquette machine:
briquette machine Model |
HXXM-360 |
HXXM-400 |
HXXM-500 |
HXXM-650 |
HXXM-750 |
HXXM-850 |
HXXM-1250 |
Remark |
|||
Capacity |
hour |
4T/h |
8T/h |
11T/h |
18T/h |
25T/h |
35T/h |
70T/h |
|
|
|
Annual |
10000T |
20000T |
30000T |
50000T |
70000T |
100000T |
200000T |
|
|
||
Roller width |
250mm |
280mm |
300mm |
336mm |
400mm |
500mm |
650mm |
(65Mn) |
|
||
Roller diameter |
360mm |
400mm |
500mm |
650mm |
750mm |
850mm |
1250mm |
|
|||
Motor Power |
7.5kw |
11-15kw |
18.5-22kw |
20-30kw |
45kw |
75kw |
130kw |
According to the material |
|||
Main shaft speed(rpm) |
18 |
15 |
13 |
13 |
13 |
10 |
10 |
|
|
||
Reducer |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1250 |
Standard type |
|
||
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
|
|
|
strengthen type |
|
|||
Pressure form |
Wedge constant pressure |
Wedge constant pressure |
Wedge constant pressure |
Wedge constant pressure |
Wedge constant pressure |
Wedge constant pressure |
Wedge constant pressure |
select any type |
|||
Axle seat coupling bar |
Axle seat coupling bar |
Axle seat coupling bar |
Axle seat coupling bar |
Axle seat coupling bar |
Axle seat coupling bar |
Axle seat coupling bar |
|
||||
|
|
Hydraulic and constant pressure |
Hydraulic and constant pressure |
Hydraulic and constant pressure |
Hydraulic and constant pressure |
Hydraulic and constant pressure |
|||||
Roller Material |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
65Mn |
casting |
select |
||
Alloy steel |
Alloy steel |
9cr2Mn |
9cr2Mn |
9cr2Mn |
9cr2Mn |
9cr2Mn |
forging, |
|
|||
Alloy steel |
Alloy steel |
Alloy steel |
Alloy steel |
Alloy steel |
pressure casting |
|
|||||
Structure form |
double roller single pressure |
double roller single pressure |
double roller single pressure |
double roller single pressure |
double roller single pressure |
double roller single pressure |
double roller single pressure |
select any type |
|
||
four roll double pressure |
four roll double pressure |
four roll double pressure |
four roll double pressure |
four roll double pressure |
four roll double pressure |
four roll double pressure |
|
||||
Shape |
custom |
custom |
custom |
custom |
custom |
custom |
custom |
Usually |
|
||
size |
30-60mm |
|
|||||||||

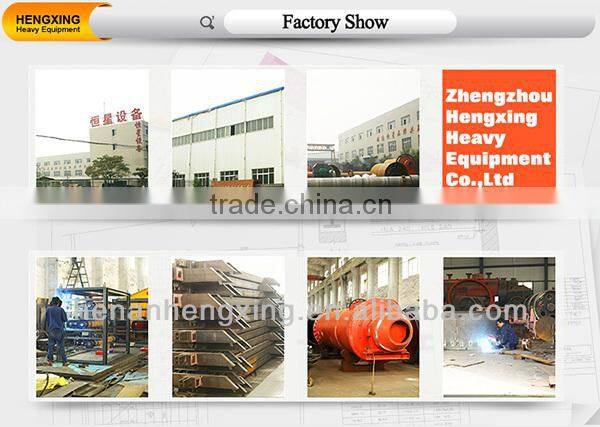

Our company has realized the computer informationization of management, production, and the CAD and CAPP of production research and process design. We have 29800 square meters of total factory area. We have established strict quality control system to make sure each manufacture step is perfect.
We have passed some international certifications such as ISO, SGS, GMP,CE etc. You can rest assured aboutour machinery.
With advanced CAD&CAPP technology we have built long coorperate relationships with world customers such as America, Cannada, Poland, India, Russia, Australia, Brazil, South Africa, Mongolia, etc. Our products have been exported to 98 countries.
