Help CenterH20 Timber Beam/ Building Material
Related Products
Specifications
Beam Timber:1.material:poplar,pine,birch,hardwood
2.glue:WBP-phenolic,Melamine waterproof glue
3.usage:construction
Full Pine LVL H20 beam With High Quality :
1> if used abide by the illustrations strictly, it can be reused many times.
2> reducing the cost greatly and avoiding the disadvantage:restily and erosive of iron mould.
3>.solve the problems of leaking and rough surface during constructing process
4> .realizing a higher economic profies.
5> .new technology and materials are being introduced and popularized continuously for construction...........
Supply H20 beam--4 years experience, with competitive price and good quality, they are well selled in all around the world.
* Pine LVL flange + pine plywood web
* WBP phenolic resin
* Environment friendly Yellow painting: waterproof, fireproof, rot-proof and frozen-proof
2. Spec
* Weight: 5.0kg-5.8kg per running meter
* Max. Bending moment M: 5.0kNm
* Max. Shear force Q: 11.0kN
* Max. Deflection: l/500
* Live load: 1.5 kN/m2 or 20 % of concrete weight
* Standard lengths (CM): 245-265-290-330-360-390-450-490-590
Special lengths upon request
1.Tested by SGS,acording to EN13377.2002
2.Top quality,low price.
3.Flange size:40*80mm
4.Web thickness:30mm

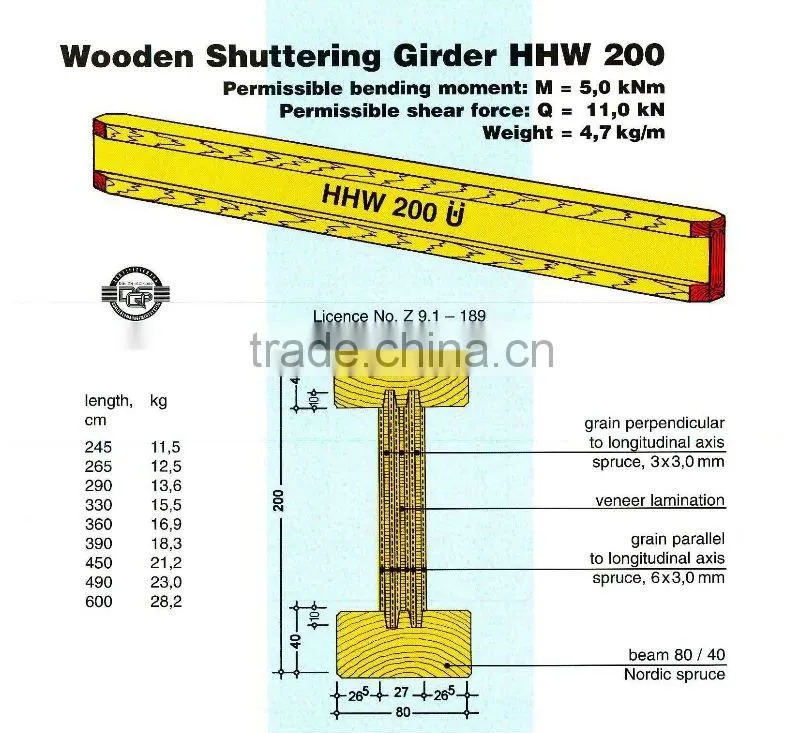

Technical information:
| Flange | Made of carefully selected spruce, Radiata pine. |
| Finger-jointed, high grade, solid wood | |
| Finger-jointed and glueing according to DIN 68140-1 | |
| Web | 3-plywood or plywood |
| Wood types | Spruce, Pine, a mixture of wood species permitted |
| Glueing | (PRF) Finger-joints between flange and webs pursuant to approval notice Z-9.1-146 |
| Wood Moisture | less than 12% at the time of delivery |
| Surface Protection | The complete beam is waterproofed using a water-repellent color glaze |
| Weight | about 5kg/m |
| Standard lengths | 2.45 / 2.90 / 3.30 / 3.90 / 4.90 / 5.90 m (Max.length:6.00m) |
| Machanical Specification | Modulus of elasticity : E 11,000 N/mm2 |
| Shear modulus : G 600 N/mm2 | |
| Packing | The packages are delivered suitable for the construction site and protected by |
| integrated supporting timber. |
Characteristics:
With high standardization,universal property,fast operations.
High stiffness,light weight,strong load-carrying capability;
Simple assembly and disassembly,flexible application make the easy way to operate on building site;
Low cost,recycle resource,encironmental protection,can be repeatedly used.
ITEM |
Working capacity |
EN request |
SGS test |
maximum bending resistance |
5KN.M |
10.9KN.M |
16.2KN.M |
maximum shearing resistance |
11KN |
23.9KN |
30.8KN |
maximum bearing resistance |
22KN |
47.8KN |
53.2KN |

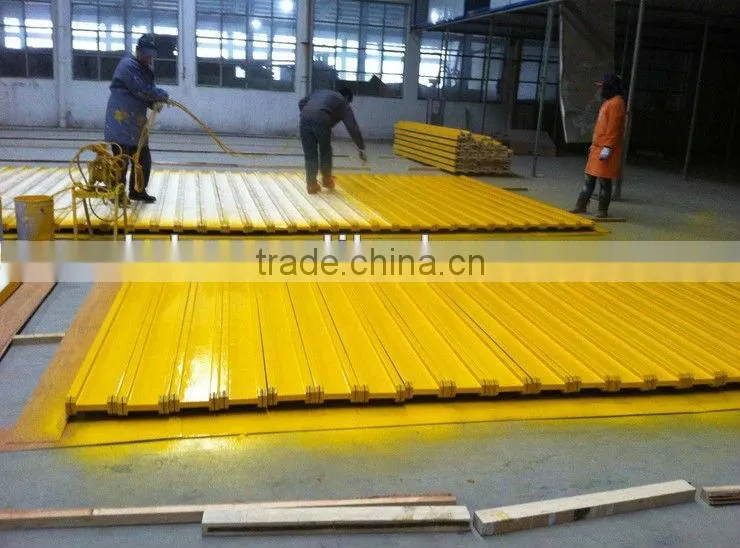

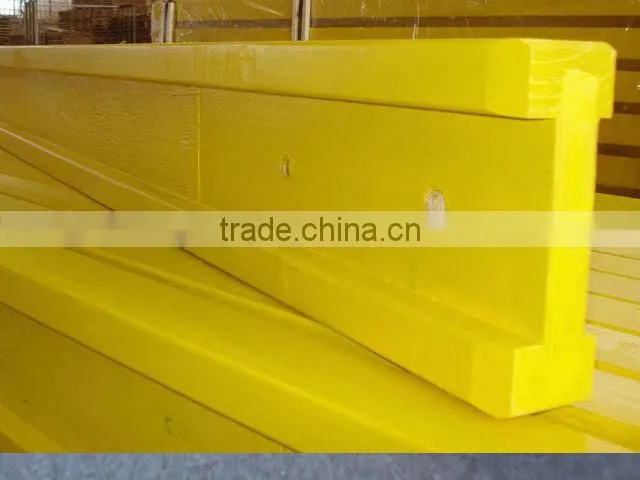

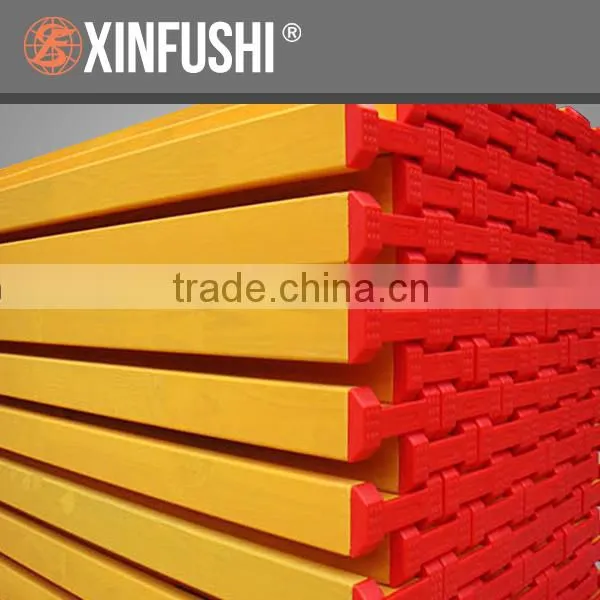

Pictures of H20 beam :
