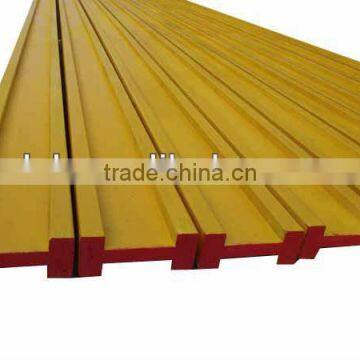

Help CenterPine LVL H16 Beam for Construction Formwork
Related Products
-
Pine LVL H20 Beam for Construction FormworkUS$ 7 - 7.2MOQ: 1000 Meters -
H20 Beam of High QualityUS$ 7 - 7.2MOQ: 500 Meters
-
Construction Usage H20 Beam in High QualityUS$ 7 - 7.2MOQ: 500 Meters
-
H16 Beam of High QualityUS$ 5.9 - 7.1MOQ: 500 Meters
-
Best Quality PINE Beam LVL H20US$ 7 - 7.2MOQ: 1000 Centimeters
Specifications
1.Pine H16 Beam Timber2.Size:according to customer
3.Usage:Wood stad
4.More stronger and stable than solid wood.
H20 Beam For Concrete Formwork:
1> if used abide by the illustrations strictly, it can be reused many times.
2> reducing the cost greatly and avoiding the disadvantage:restily and erosive of iron mould.
3>.solve the problems of leaking and rough surface during constructing process
4> realizing a higher economic profies.
5> .new technology and materials are being introduced and popularized continuously for construction...........
Specifications
1.Tested by SGS,acording to EN13377.2002
2.Top quality,low price.
3.Flange size:40*80mm
4.Web thickness:30mm
Technical information:
| Flange | Made of carefully selected spruce, Radiata pine. |
| Finger-jointed, high grade, solid wood | |
| Finger-jointed and glueing according to DIN 68140-1 | |
| Web | 3-plywood or plywood |
| Wood types | Spruce, Pine, a mixture of wood species permitted |
| Glueing | (PRF) Finger-joints between flange and webs pursuant to approval notice Z-9.1-146 |
| Wood Moisture | less than 12% at the time of delivery |
| Surface Protection | The complete beam is waterproofed using a water-repellent color glaze |
| Weight | about 5kg/m |
| Standard lengths | 2.45 / 2.90 / 3.30 / 3.90 / 4.90 / 5.90 m (Max.length:6.00m) |
| Machanical Specification | Modulus of elasticity : E 11,000 N/mm2 |
| Shear modulus : G 600 N/mm2 | |
| Packing | The packages are delivered suitable for the construction site and protected by |
| integrated supporting timber. |
Characteristics:
1. With high standardization,universal property,fast operations.
2. High stiffness,light weight,strong load-carrying capability;
3.Simple assembly and disassembly,flexible application make the easy way to operate on building site;
4.Low cost,recycle resource,encironmental protection,can be repeatedly used.
ITEM |
Working capacity |
EN request |
SGS test |
maximum bending resistance |
5KN.M |
10.9KN.M |
16.2KN.M |
maximum shearing resistance |
11KN |
23.9KN |
30.8KN |
Our company, SHOUGUANG FUSHI WOOD CO., LTD is a large scale manufacturer of plywood,particle board,MDF,film faced plywood and other products. It covers over 330,000 M2 and more than 2000 employees. The production capacity is more than 200,000 M3 annually. Most of the products are exported to America, Japan, Korea, Middle East and other countries.
We are the leading manufacturer in China. Willing to cooperate with all friends to manutual.
If you have any question, please ask me freely.
Best Regards
Any questions,pls feel free to let me know.
Cell:0086-18763646963 Alina
