Silica Stone Lined Batch Ball Mill For Silex Milling :
1.silica stone lined batch ball mill Application
silica stone lined batch ball mill is specially design for grinding feldspar ,quartz, clay, silica and other hard and brittle materials, These materials are the key one for produce high quality glass and ceramic , so ceramic ball mill is also called glass-ceramic intermittent ball mills .
silica stone lined ball mill, also known as a one-time feed mill, is one of the mill products of our company and mainly used for material mixing, grinding. The finished product is characterized by uniform fineness and power savings. Either dry grinding or wet grinding is available. The aircraft can use the steel liner plate or silica liner, to meet different needs. Motor auto decompression start to reduce the starting current, and its structure can be divided into the overall style and detached. This product has less investment than similar products, energy saving, the novel structure, easy operation, use of safe, stable and reliable performance characteristics, suitable for general and special material mixing and grinding operations.the liner material can be Ceramics, silica, rubber and metal (the liner material and grinding materials determine the power)
2. silica stone lined batch ball mill Working Principle:
When operating, the motor drives cylinder drum to rotate. The raw material is placed into the cylinder through one end.Many grinding balls inside the cylinder will rotate with the drum. Balls fall down from above and hit the materialover and over. When the milled materials accumulate, the machine will discharge them from end outlet.
3.silica stone lined batch Ball Mill Technical Parameter:
Model |
Capacity (t) |
Speed of Bucket (r/min) |
Motor Power (kw) |
600×700 |
0.05 |
50 |
2.2 |
800×600 |
0.075 |
42 |
3 |
900×1200 |
0.2 |
38.5 |
5.5 |
1300×1500 |
0.5 |
33 |
7.5 |
1500×1800 |
1.2 |
28.5 |
11 |
1800×2000 |
1.5 |
24 |
15 |
2600×2800 |
5 |
16.5 |
37 |
3000×3800 |
10 |
14.5 |
55 |
3200×4600 |
15 |
13.5 |
75 |
3400×6600 |
18 |
13 |
135 |

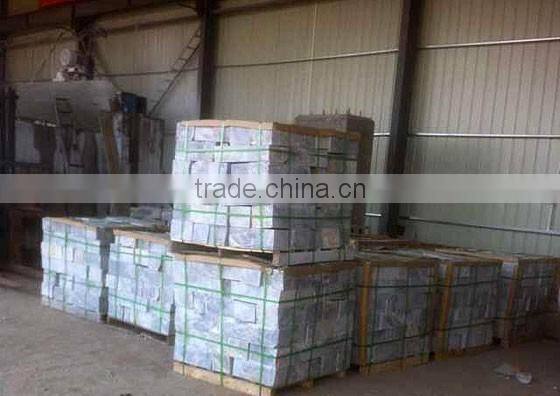

4.silica stone liner:

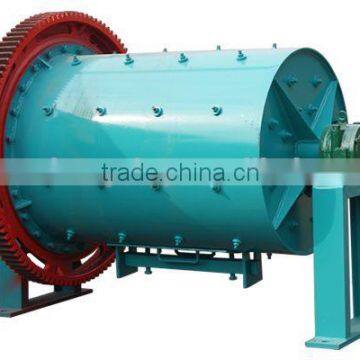

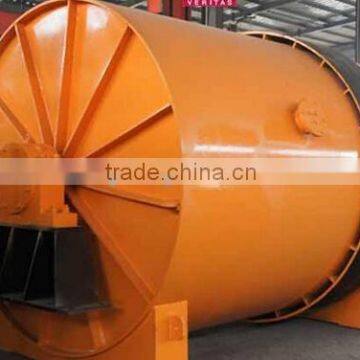

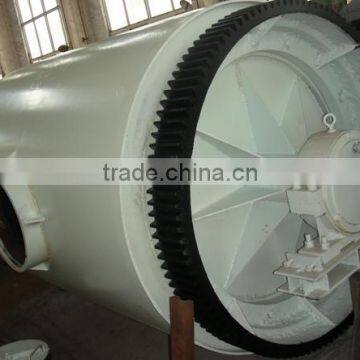

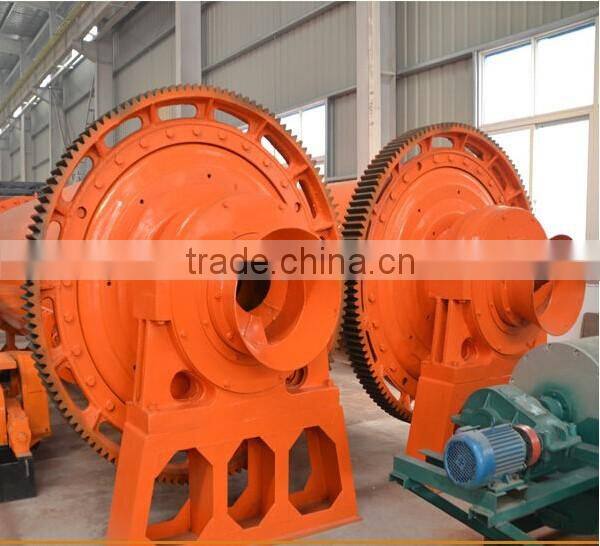

5. Silica stone lined batch ball mill photos in our factory :
