The 8 gigabit PoE ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four 10/100/1000Mbps ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 16Gbps switching capacity.All RJ45 PoE ports can auto adjust the highest connection speed for a normal working, Auto Uplink ™ technology can ensure proper network connection.
This cost-effective POE33008P-at provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.
Model: POE33008P
- IEEE 802.3af power on up to 8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 8 10/100/1000 Mbps Ports with AutoUplink™
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 110W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
- 8K entry MAC address table of the PoE Switch POE33008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Product Specification
Product Name |
8-Port Gigabit PoE Switch with 8 Gigabit PoE Ports 15.4W |
Product Model |
POE33008P-at |
Connector Type |
8x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment) |
Forwarding Mode |
Store-and-forward architecture, line speed forwarding |
Network Medium |
1000BASE-TX: Cat5 or more UTP(≤100 meters) |
Performance Specifications |
Bandwidth: 16Gbps (non-blocking) |
PoE Description |
IEEE 802.3af, each port power is 15.4W; Port1 to Port8 support PoE power; End-span(1/2+, 3/6- line pair) power supply, can be customized mid-span(4/5+, 7/8- line pair) power supply |
Network Protocols and Standards |
IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af |
LED Indicator Status |
Power, Network, PoE working status |
Power |
IEEE802.3af standard, each port power is 15.4W, total power is 120W |
Voltage |
Input: AC100~240V 50/ 60Hz |
Dimension |
280 x 186 x 44mm |
Working Environment |
Operating Temperature: 0 ° ~ 55 ° C |
Radiation |
CE mark, commercial |
Safety |
CE Mark ,commercial |
Warranty |
1 year warranty |
Dimension

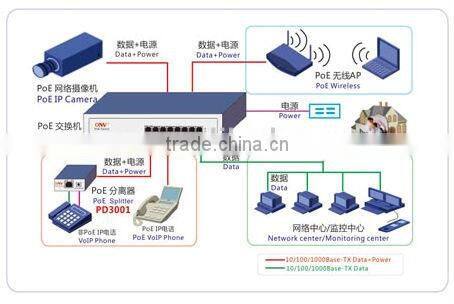

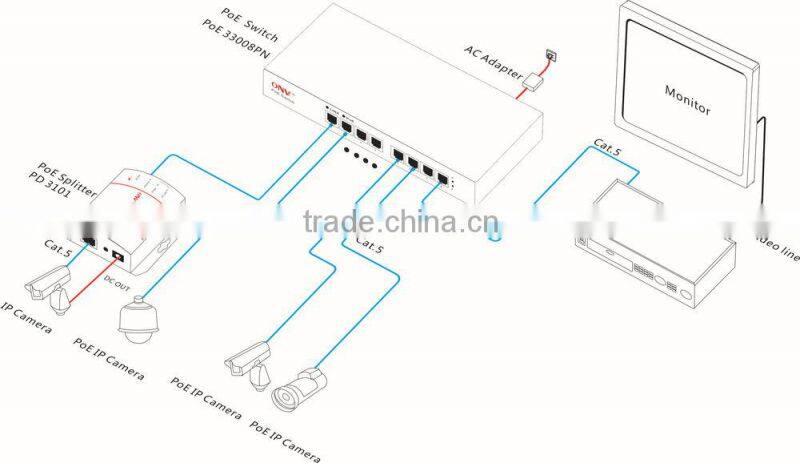

Application
Certification

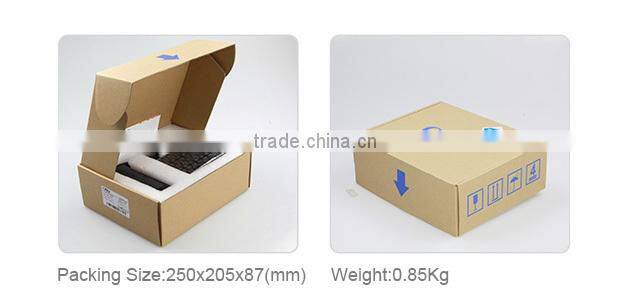

Packing
Shipping
Product order information
Product Model: POE33008P
Product Description: 8-Port gigabit PoE switch with 8 gigabit PoE ports, port 1 to port 8 supports POE IEEE 802.3at international standard, each port power is 25.4W, the whole power is 220W
Ordering Note: Default PoE power supply type is end-span (12, 36 line pair), mid-span (45, 78 line pair) can be customized
Packing Lists |
8-Port gigabit PoE switch with 8 gigabit PoE ports 25.4W (POE33008P-at) |
|
Power Adapter Cable |
|
User Guide |
|
Warranty Card |
