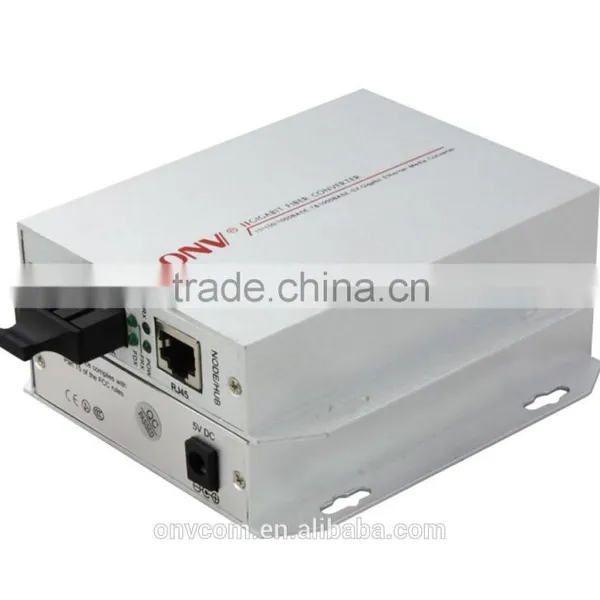

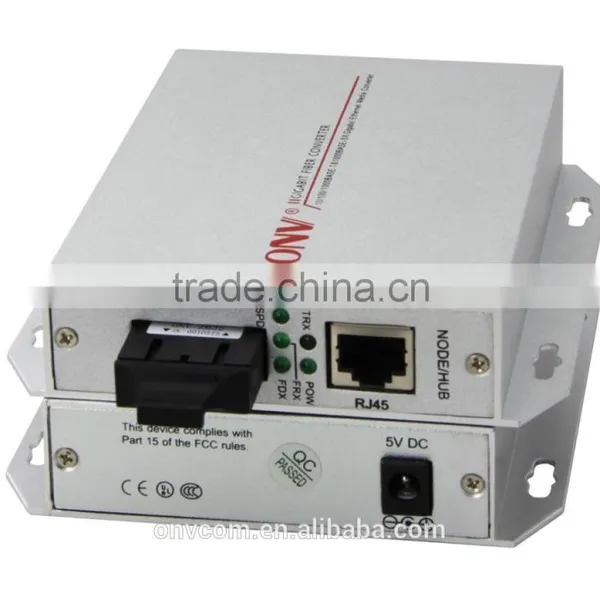

Help CenterONV Best Sale Gigabit Single Mode Fiber Converter
Related Products
-
Best 9 Port POE Switch With 8 POE Ports 25.5W/ 8 Port POE Switch/ POE Switch in ChinaUS$ 10 - 1,000MOQ: 1 Piece -
HIGH Power 9 Port POE Switch With 8 POE Ports 25.5W/ 8 Port POE Switch/ POE Switch in China IEEE802.3atUS$ 10 - 1,000MOQ: 1 Piece
-
Safty and High Technology 24 Port PoE Switch With 2 Gigabit Fiber Uplink Port for ip CameraUS$ 1 - 500MOQ: 1 Piece
-
5 Ports PoE Switch Series With 4 PoE Ports for Hiki Vision Ip Camera Standard IEEE802.3AT 25.4W per PORTUS$ 20 - 26MOQ: 1 Piece
-
5 Ports PoE Switch Series With 4 PoE Ports for Hiki Vision Ip CameraUS$ 20 - 26MOQ: 1 Piece
This 100/1000M PoE media converter can be use between 10Base-T and 10Base-FL or 100Base-TX cable and 100Base-FX fiber cable or 1000Base-T cable and 1000Base-S/LX fiber cable for data transmission. It provides stand-alone RJ-45 electrical interface port and supply power to others, and can automatically cross connection with switch and hub network. And feature with link loss diagnosis, electrical port link diagnosis and optical port link diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator. Also it can be realize the interconnection between motherboard servers, Repeaters, hubs, switches terminal.
Plug and play design makes easy installation, no on-site adjustment, all the light, electrical interface port is in line with international standards. It can extend the network transmission up to 20km. This high power gigabit fiber PoE media converter is suitable for Bad industrial environment or high requirements for lightning protection, intelligent transportation supervisory system (ITS) and safe city, High-speed way supervisory/Tele-communication system, IP network camera, security surveillance system for large corporations, multi-function network system.
Product features
Card-type or Stand-alone type for your choice; suitable for concentration management in 2U Racks
Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism
Cache size for 512KB, address table size is 4KB
Ethernet 10base-t or 100Base - TX 100Base - FX fiber media transition
Supporting IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d
Supporting full duplex flow control or half duplex backpressure flow control, with auto negotiation function
Electricity support 100Mbps,10Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)
Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator
Provide double RJ - 45 electrical automatic cross connection, connect switchboard, concentrator
Optical fiber interface properties is good, good compatibility and high reliability
Provide complete after-sales service and five years for maintenance services
Target Industries
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
|
|||||||||||||||||||||||||||
|
Order Information
Product Model: POE33001PF-at
Product Description: Single port 10/100/1000M dual fiber high power PoE media converter. Compatible with IEEE802.3at standard (25.5W); power input is AC110V~260V, external power supply (can be customized different power sockets for different countries)
Order Note: Default PoE power supply is end-span (1/2, 3/6 line pair), alternative PoE
Power supply is mid-span (4/5, 7/8 line pair)
Package List |
Single Port Dual Fiber Gigabit PoE Media Converter ( POE33001PF-at) |
|
Power Adapter |
|
User Guide |
|
Warranty Card |
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
Tel:+8613886951478
Skype:tommy900525
