The 8 gigabit PoE ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four 10/100/1000Mbps ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 16Gbps switching capacity. All RJ45 PoE ports can auto adjust the highest connection speed for a normal working, Auto Uplink ™ technology can ensure proper network connection.
This cost-effective POE33008PN provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.
Feature
IEEE 802.3af power on up to 8 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
8 10/100/1000 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
8K entry MAC address table of the PoE Switch ONV-POE33008P with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Target Industries
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system (ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects

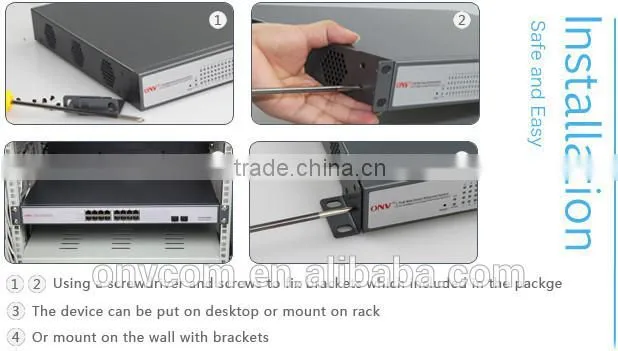

Installation Steps

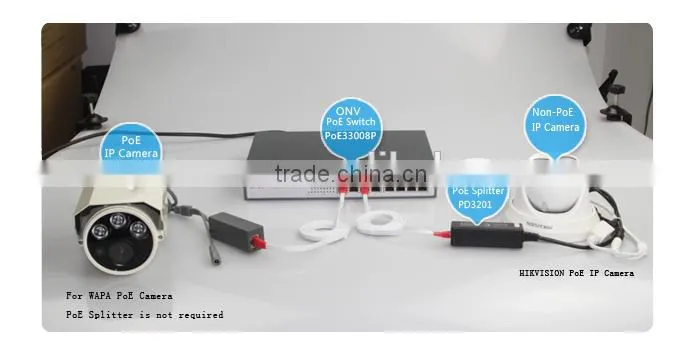

Physical Application Reference
Specification
| Product Name | 8-Port Gigabit PoE Switch 15.4W |
| Model | ONV-POE33008P |
| Connector Type | 8x 10/100/1000Mbps RJ45 Ports |
| Network Media | 1000Base-TX (≤100m, Catalogue 5 cable) |
| Bandwidth | 16Gbps(No blocking) |
| Address Database Size | 1K |
| Network Latency | Switch Throughput:11.9Mpps@64Bytes |
| Forwarding Mode | Store-And-Forward Architecture |
| LED Display | Power, Ethernet Data, PoE working status |
| PoE Ports | 1-8 Port support PoE (15.4Watts per port) |
| PoE Port Power | 15.4Watts per port) |
| PoE Standard | IEEE802.3af |
| PoE Feature | Output power 15.4Watts (IEEE802.3af) |
| Power Consumption | 120W |
| Working Environment | Working temperature:-20°~ 55°C , Storage temperature: -40°~ 85°C,Working Humidity: 5%~95%, non-condensing |
| Certification | FCC Class A, CE, RoHS |
| Radiation | No |
| Power Supply Type | End-span (Mid-span optional) |

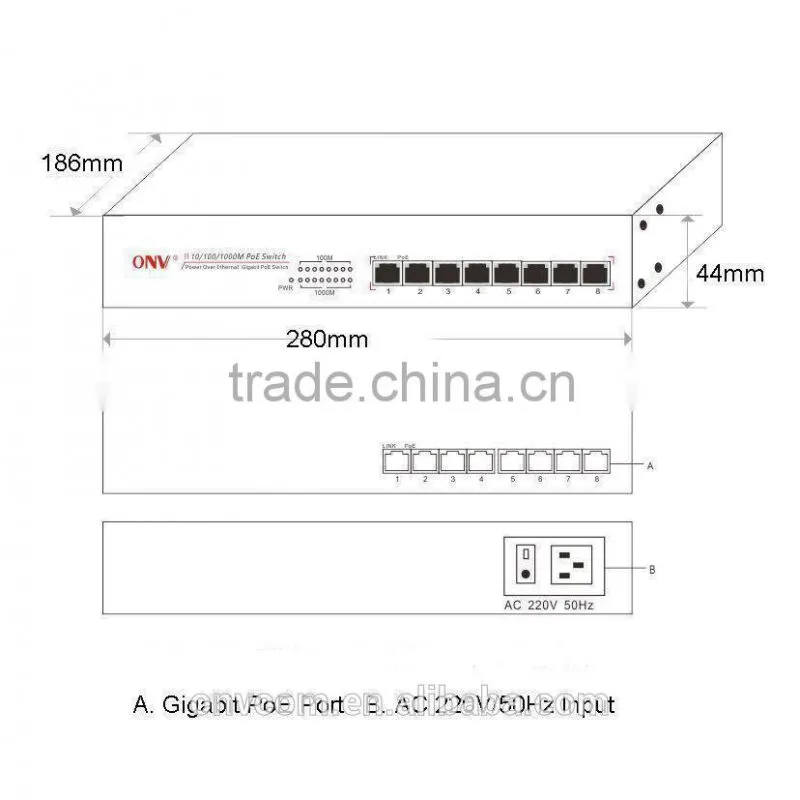

| Product Size | 279X195X44mm |
| Warranty | 1 Year Warranty, Life-time Maintenance |
| Packaging Details: | 2 to 7 working days |
| Delivery Detail: | carton or wooden box with IPPC |
Order Information
Product Model: ONV-POE33008P
Description: 8-PORT 10/100/1000M SWITCH WITH 8-PORT POE, IEEE 802.3af, PoE Power Output:15.4Watts,PoE Budget: 120Watts
Power Pin Assignment: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs 4/5(+) and 7/8 (-)
|
Package Contents
|
8-PORT 10/100/1000M SWITCH WITH 8-PORT POE (ONV-POE33008P)
|
AC Power Cable | |
|
User Guide
| |
Warranty Card |
Product display
Certification
