This POE31008P-at switch provides a network point for power supply and data transmission. All the 9 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is Ethernet interface, among which 1-8 ports can provide standard IEEE 802.3at power supply. Due the advanced self-sensing algorithm supply power for IEEE802at terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected.

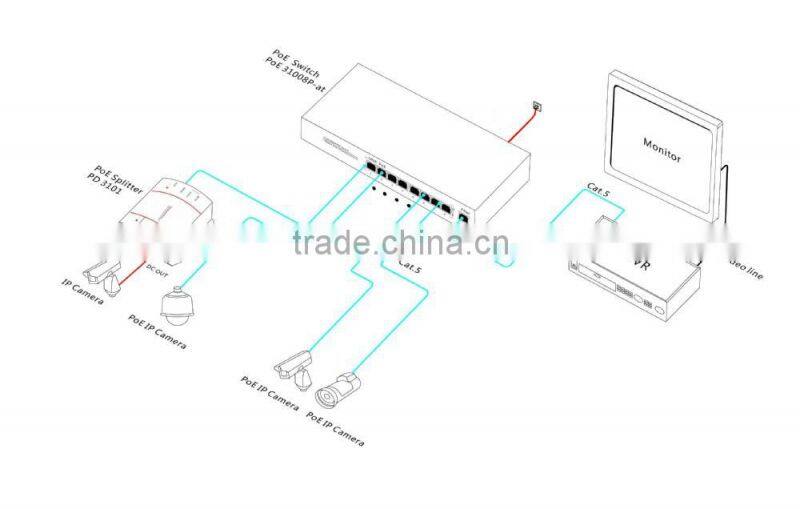

This cost-effective POE31008P-at provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.
Product specification
Product Name |
9-Port PoE Switch with 8 PoE Ports 25.5W |
Product Model |
POE31008P-at |
Connector |
9x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 8x PoE ports, 1x uplink port |
Transfer Mode |
Store-And-Forward |
Network Medium |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
Data transmission distance: 100m | |
Performance Specifications |
Bandwidth: 1.6Gbps (non-blocking) |
Network Protocols and Standards |
IEEE 802.3i 10BASET |
LEDs Status |
System: power supply |
Power |
Maximum PoE power: 250W |

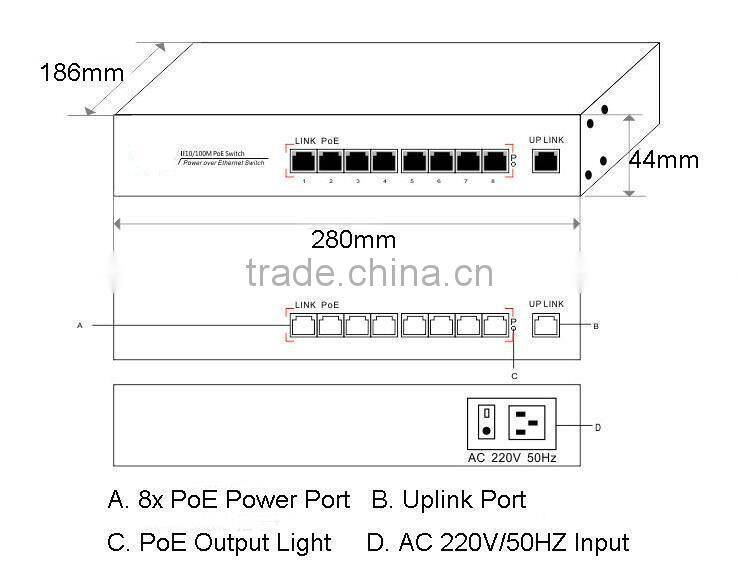

Dimensions/Weight |
Dimensions (LxWxH): 280 x 186 x 44mm 1.58kg |
Working Environment |
Operating Temperature: 0 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing |
Radiation |
CE mark, commercial |
Safety |
CE Mark ,commercial |
Warranty |
1 year warranty |
Packing Lists |
9-Port PoE Switch 25.5W (POE31008P-at) |
|
Power Cable |
|
User Guide |
|
Warranty Card |
Product Order Information
Product Model: POE31008P-at
Product Description: 9x 10/100M Ethernet ports with 8x PoE ports and 1x uplink port, and 1-8 ports support IEEE802.3at POE international standard, each port power is 25.5W, total power is 250W
Ordering Notes: PoE default power supply is end-span (1/2, 3/6 line pair), alternative PoE
Power supply is mid-span (4/5, 7/8 line pair)
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
Tel:+8613886951478
Skype:tommy900525
