Best quality High Power PoE Switch with 16 Ethernet Ports and 2 Gigabit Ports
- 40000 Piece / Pieces per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
- S5720-36C-EI-28S Combination Configuration (28 Gigabit SFPs, 4 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
- Huawei S5720-28X-SI-24S-AC (24 Gigabit SFPs, 8 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, AC powered, front maintenance)
- S5731-S24P4X 24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, PoE+
- S5720-56C-EI (48 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
- S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
- S5735-L32ST4X-A1 24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access
Product Details
Products Status: | Stock | Ports: | 16 | Transmission Rate: | 10/100/1000Mbps |
Function: | POE, SNMP, VLAN Support | Communication Mode: | Other, Full-Duplex & Half-Duplex | Certification: | CE,FCC,RoHS |
Switch Capacity: | 7.2Gbps | Brand Name: | ONV | Model Number: | ONV-POE31016PF-AT |
Place of Origin: | China |
Product Description
This POE31016PF-at switch provides a network point for power supply and data transmission. All the 16 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 155Mbps fiber interface, among which 1-16 ports can provide standard IEEE 802.3at power supply. Due the advanced self-sensing algorithm supply power for IEEE802at terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected.

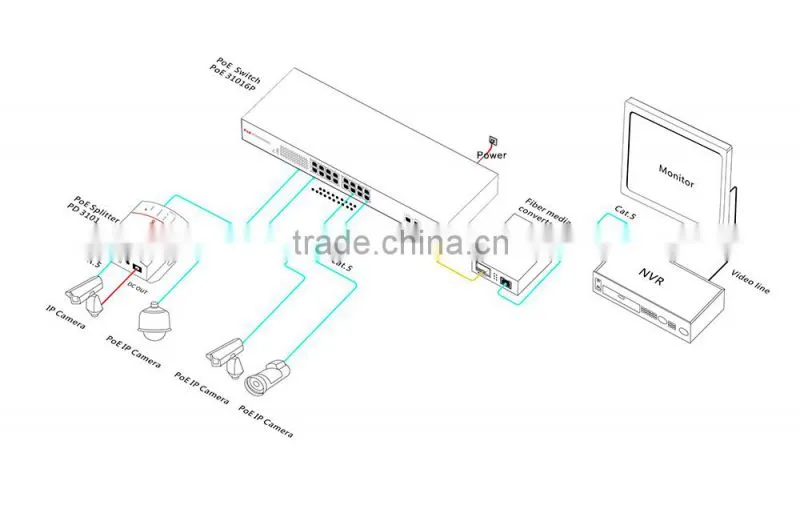

This cost-effective POE31016PF-at provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.
16-Port Power over Ethernet (PoE) Switch 10/100Mbps POE31016PF-at
To fulfill the demand of sufficient PoE power for network applications with 10/100Mbps wire speed transmission, ONV introduces a new member in the IEEE802.3at PoE Fast Ethernet Switch family , ONV-POE31016PF-at, the 16-Port 10/100Mbps IEEE802.3at Power over Ethernet Switch with 440 Watts PoE budget. The 16 Fast Ethernet ports integrated with IEEE802.3at PoE injector function are able to drive at least 16 x IEEE 802.3at 25.5 Watts Class 3 compliant powered devices.
Product features:
1. IEEE 802.3at power on up to 16 ports
2. Supply power to wireless access points and surveillance cameras over Cat-5 cabling
3. 16 10/100 Mbps Ports with AutoUplink™
4. Supports PoE power up to 25.5W for each PoE port
5. Supports PoE power up to 440W for all PoE ports
6. Supports PoE IEEE 802.3at compliant PDs
7. Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8. 8K entry MAC address table of the PoE Switch ONV-POE31016P-at with auto-learning and auto-aging
9. LED indicators for monitoring power, link, activity and speed
10. External power adapter supply
Target Industries:
1 HD monitor transmission and power supply
2 Wireless AP layout transmission and power supply
3 Network telephone transmission , intelligent house and home system
4 Intelligent transportation supervisory system (ITS)
5 High-speed Way supervisory/Tele-Communication System
6 Security protection system, TV medical treatment
7 Long-distance Muti-media Schooling, Campus monitoring
8 Long-distance broadcast television transmission system
9 High-building Security Protection, Military Tele-Com projects
Specifications:
Product Name | High Power PoE Switch with 16 PoE Ports and 2 Gigabit Combo Ports |
Product Model | POE31016PF-at |
Connector | 16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x gigabit electrical and SFP combo ports |
Transfer Mode | Store-And-Forward |
Network Medium | 10BASE-T: Cat3/4/5 UTP(≤100 meter) 100BASE-TX: 5 classes and more than 5 classes(≤100 meter) |
| Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative) |
Performance Specifications | Bandwidth: 3.2Gbps (non-blocking) |
Network Protocols and Standards | IEEE 802.3i 10BASET |
LEDs Status | System: power supply |
Power | Maximum PoE power: 440W |
Dimensions/Weight | Dimensions: 440x275x44.5mm |
Working Environment | Operating Temperature: 0 ° ~ 55 ° C Storage Altitude: 3,000 m (10,000 ft) |
Radiation | CE mark, commercial |
Safety | CE Mark ,commercial |
Warranty | 1 year warranty(2 yeas warranty for power adapter) |
packing
Shipping
Product Model: POE31016PF-at
Product Description:
16x 10/100M PoE ports + 2x gigabit electrical and SPF fiber combo ports PoE switch, and 1-16 ports supports IEEE802.3at POE international standard; each port power is 25.5W, total power is 440W.
Ordering Notes:
PoE default power supply is end-span (1/2, 3/6 line pair), mid-span (4/5, 7/8 line pair) PoE Power
supply can be customized
Product Packing Lists
Packing Lists | High Power PoE Switch with 16 PoE Ports and 2 Gigabit Combo Ports (POE31016PF-at) |
| Power Cable |
| User Guide |
| Warranty Card |
