Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > Openbox S10 HD Satellite Receiver Ali Solution DVB-S & DVB-S2 FTA With USB+CI+CA Working Worldwide

Openbox S10 HD Satellite Receiver Ali Solution DVB-S & DVB-S2 FTA With USB+CI+CA Working Worldwide

Name: Openbox S10 HD Satellite Receiver Ali Solution DVB-S & DVB-S2 FTA With USB+CI+CA Working Worldwide
Brand: Openbox
SKU: 105616663
Availability: InStock

Openbox S10 HD Satellite Receiver Ali Solution DVB-S & DVB-S2 FTA With USB+CI+CA Working Worldwide thumbnail-1

Openbox S10 HD Satellite Receiver Ali Solution DVB-S & DVB-S2 FTA With USB+CI+CA Working Worldwide photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Openbox

Model Number:

S10

Contact Supplier Request Quote Chat Now

Shenzhen Tenry Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Openbox

Model Number S10

FTA(Free To Air) Yes

Type Digital

High Definition Yes

Specifications

Openbox S10 HD satellite receiver ali solution
1. HD+ PVR +1CA+1CI
2. OpenBox S10 HD with Cccam,newcam,mgcam
3. DVB-S2

Openbox S10 HD satellite receiver ali solution DVB-S & DVB-S2 FTA with USB+CI+CA working worldwide

Main features

It is the cheapest HD receiver; Can be used around the world;
HD CPU;Available tuners: DVB-S2;
Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech, selectable--and Language can be increased in the future

General Specifications:

300 MHz MIPS Processor - Linux Operating System
Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-2 MP@HL & MP@ML;
Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
NIT search supported;
Support MHEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide(EPG) for 7 days;
Teletext and subtitle out through OSD;
Support multi-lingual DVB subtitle and teletext;
Automatic and manual channel scan options;
automatic service scan
channel-change time < 1 second
OSD in many languages and skin-support
Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech, selectable;
LED Display
Multiple display mode: 1080i/720p/570p/576i/480p;
MPEG-2 / H.264 Hardware decoding
Videotext Decoder
Analog audio output: stereo(L+R);
Digital audio output: S/PDIF by coaxial and optical;
S/PDIF Interface for digital bit stream out (AC-3)
YCbCr available;
2 x Scart (RGB, FBAS or S-Video)
Screen format:auto, 4:3, and 16:9;
Upgrade software through USB2.0 port;
Powerful program management function, parent lock;
CA 1x slot and CI 1xslot
10/100Mbit Ethernet Interface
directly bouquet-lists

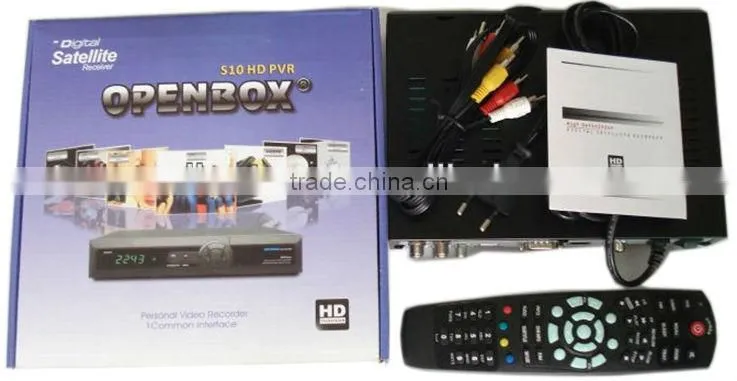

packing:

Git box:25*24*6CM

1x User Manual

1X box Openbox S10 HD PVR satellite receiver

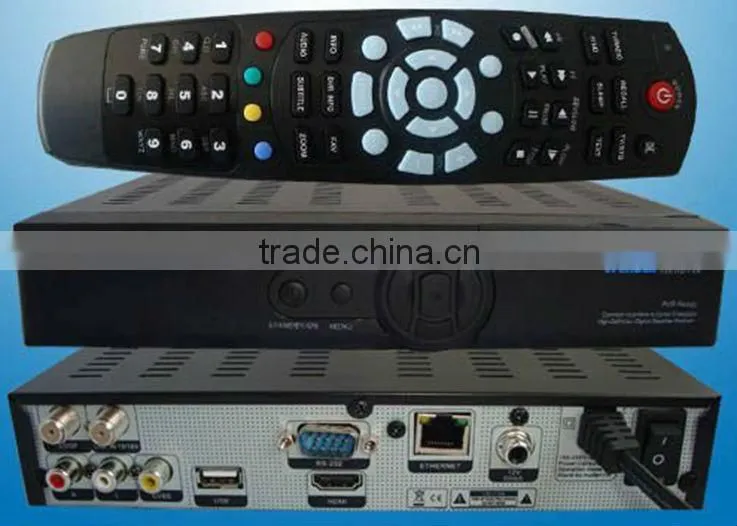

1X Remote Control

DVB-S2	Input Frequency:950~2150MHz Loop Out Frequency:950~2150MHz Input Level:-65~-25dBm Input Impedance:75¦¸ LNB Power: Auto/14v/18v/OFF, Imax = 500mA
Video decoder	Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device
Audio decoder	Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output digital	Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, Toslink
Video parameter	Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard
TV-Scart	Output: FBAS, RGB, S-Video
Serielle Interface RS 232	Typ RS232 bidirectional Bit rate 115, 2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware
Ethernet	10/100 MBit compatible interface Function: Update of Firmware
USB	1 x USB 2.0 Host ,PVR
LNB power and polarisation per tuner	LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position	DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control
External PSU	Input:110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0A
Physical specification	Ambient Temperature +15 °C...+35 °C Humidity < 80% Size (W x D x H): 2423.55CM Weight: 1.4 kg without HDD
Power	AC input range: 100-240VAC 50/60Hz Power Consumption (Standby): Max. 10W (<1 W)
