Linux dvb-s openbox s9 hd pvr openbox s10 openbox s11

Specifications

Openbox s11
HD+ PVR +1CA
Openbox S11 HD with Cccam,newcam,mgcam
MPEG4 H.264 Skybox S11
MPEH-5 Skybox s11

    Linux dvb-s openbox s9 hd pvr openbox s10 openbox s11



Openbox S11 the new model HD receiver out, cover all functions of S9, but most cost effective
-PVR
- HDMI
-ETHERNET PORT, can work with CCCAM, and sharing with dm box server
- MPEG4 H.264
-RS232 INTERFACE

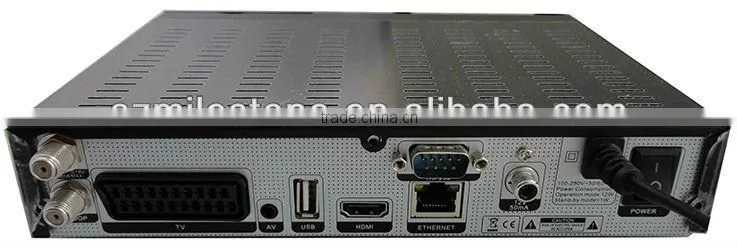

-SCART AND RCA PORTS
-CA
.............
Advantages over other receivers:
1/ BLIND SEARCH: not only blind searches signals in DVB-S, but also DVB-S2. The Blind Search feature is very fast.
2/ AC3 Digital Sound: Digital sound through HDMI output
3/ Recording: Using an optional external Flash USB drive or HD, you can record your favorite shows and setup timer to do the same while you are out of the house.

It is the cheapest HD receiver; Can be used around the world;
Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Portuguese, Turkish, Russian, Polish, Arabic, selectable--and Language can be increased in the future.

MAIN FEATURES
1/Receive Digital High Definition (HD) and Standard Definition (SD) Satellite Signal
2/Supports DVB-S, DVB-S2, MPEG-2 & MPEG-4
3/Digital Video Recorder through USB (external flash or hard drive are not included)
4/The most affordable FTA HD receiver on the market today.
5/Worldwide compatible
6/Hardware Blind Search DVB-S and DVB-S2 (fast search less than 2 Minutes on most satellites)
7/Linux MIPS Operating System
8/HD DVB-S2 SHARP 7306 Tuner

General Specifications:
300 MHz MIPS Processor - Linux Operating System
Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-2 MP@HL & MP@ML;
Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
NIT search supported;
Support MHEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide(EPG) for 7 days;
Teletext and subtitle out through OSD;
Support multi-lingual DVB subtitle and teletext;
Automatic and manual channel scan options;
automatic service scan
channel-change time < 1 second
OSD in many languages and skin-support
Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech, selectable;
LED Display
Multiple display mode: 1080i/720p/570p/576i/480p;
MPEG-2 / H.264 Hardware decoding
Videotext Decoder
Analog audio output: stereo(L+R);
YCbCr available;
Screen format:auto, 4:3, and 16:9;
Upgrade software through USB2.0 port;
Powerful program management function, parent lock;
CA 1x slot
10/100Mbit Ethernet Interface
directly bouquet-lists

DVB-S2
Input Frequency:950~2150MHz
Loop Out Frequency:950~2150MHz
Input Level:-65~-25dBm
Input Impedance:75¦¸
LNB Power: Auto/14v/18v/OFF, Imax = 500mA

Video decoder
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder
Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output digital
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz

Video parameter
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

Ethernet
10/100 MBit compatible interface
Function: Update of Firmware

USB
1 x USB 2.0 Host ,PVR
LNB power and polarisation per tuner
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position
DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
External PSU
Input:110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 3,0A

Physical specification
Ambient Temperature +15 °C...+35 °C
Humidity < 80%
Size (W x D x H): 240 mm x 240 mm x 50 mm
Weight: 0,8 kg without HDD

Power
AC input range:100-240VAC 50/60Hz
PowerConsumption (Standby): Max. 10W (<1 W)



Packing:
Git box:24*24*5CM
1x User Manual

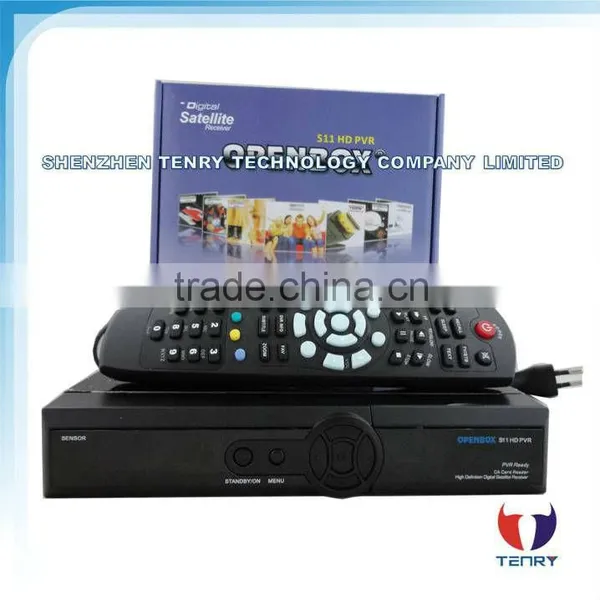

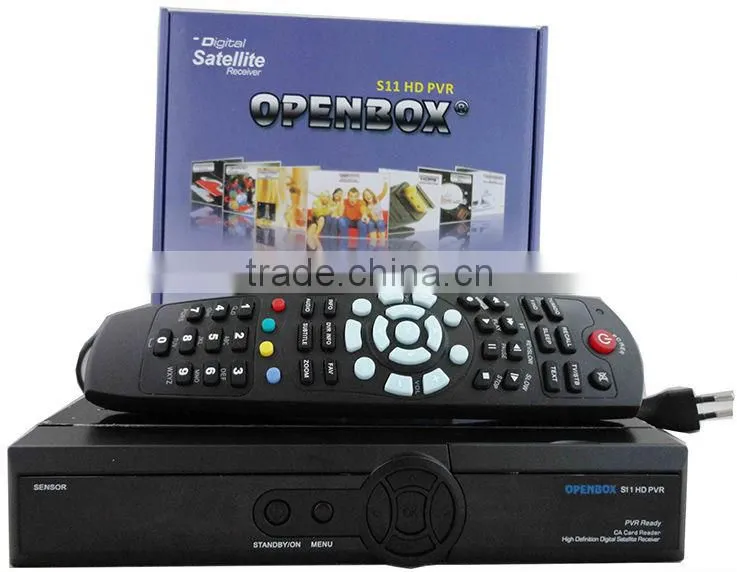

1X S11 HD PVR satellite receiver
1X Remote Control
