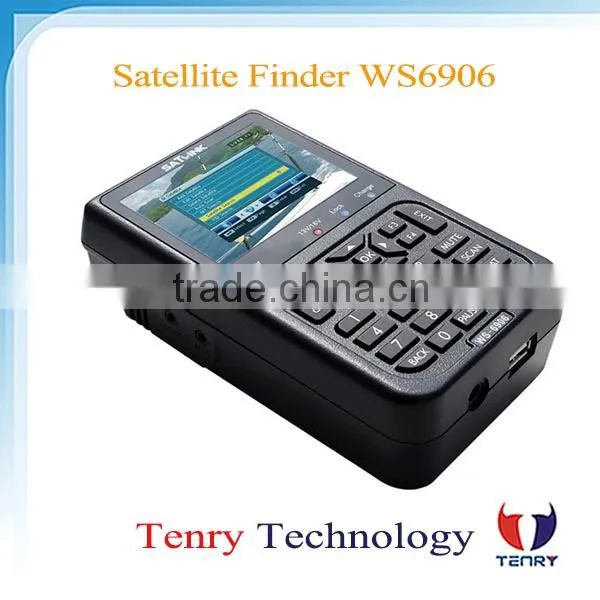

3.5" TFT Color LCD Handheld Digital Satellite Finder Signal Meter SATLINK WS6906

3.5" TFT Color LCD Handheld Digital Satellite Finder Signal Meter SATLINK WS6906 thumbnail-1
3.5" TFT Color LCD Handheld Digital Satellite Finder Signal Meter SATLINK WS6906 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SATLINK
Model Number:
WS6906
Contact Supplier Request Quote Chat Now
Shenzhen Tenry Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SATLINK
Model Number WS6906
FTA(Free To Air) Yes
Type Digital
High Definition Yes

Specifications

1. Signal meter satellite finder meter satlink ws6906
2. 3.5LCD screen
3. Strength and quality reading
4. both S/N and C/N

Original Satlink WS-6906 3.5" DVB-S FTA digital satellite  finder meter ws6906 satlink ws6906





Features:



  1. Color TFT LCD display with 3.5 "/ 8.9 inch
  2. Built-in speaker
  3. Display the signal strength in percent and as a bar
  4. Display of signal quality as a percentage and as a bar
  5. Acoustic signal when a transponder is locked
  6. Automatic Channel Search TV + Radio
  7. Reception and playback of DVB-S Free to Air TV programs
  8. Reception and playback of DVB-S Free to Air Radio Programs
  9. Using an adapter cable can be connected to the device to the TV set and satellite receiver are used as normal
  10. Firmware update via RS232 interface
  11. 7 Menu Languages: English, French, Russian, Arabic, Farsi, Portuguese, Turkish
  12. Built-in 8.4V / 3000mA / h Li-Ion battery for up to 6 hours operating time
  13. Charging time 4 hour



Specifications

System capabilities

Fully DVB compliant

Yes

LNB/Tuner input

Connector

F type,male

Frequency range

950MHz-2150MHz

Signal lever

-65dBm~-25dBm

LNB supply

13/18V,max400mA

LNB switch control

22KHz

DiSEqC

Ver 1.0

Demodulator

Front end

QPSK

Symbol rate

2Mbps~45Mbps

SCPC and MCPC Capable

Yes

Spectral inversion

Auto conversion

System resource

Processor

32bit processor (200MHz)



SDRAM

16Mbyte

FLASH

2Mbyte

EEPROM

8Kbyte

Video decoder

MPEG 2

Main Proflie@Main Level

Data Rate

up to 15M bits/s

Resolution

720*576,720*480

Video format

PAL/NTSC/SECAM

MPEG Audio

MPEG 1 layer 1&2



Type

Mono

Sampling rates

32,44.1 and 48KHz

Serial data interface

Connector

USB type

Power supply

Li-oN Battery

1950 mA



Supply voltage

12.6Volt



charger

90-240V

Panel connectors

Digital tuner input

F type, male

Physical Specification

Size

9.5x15.5x4.5 (cm)



Weight(Net)

0.5 Kg
