1.PoE Module - Special for IP Cameras
2.Compatible with IEEE 802.3at Power over Ethernet standard
3. PoE port power can be up to 25.5W

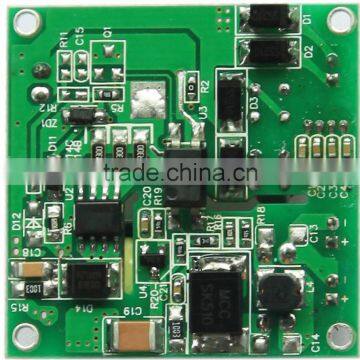

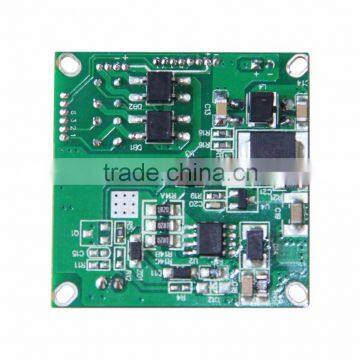

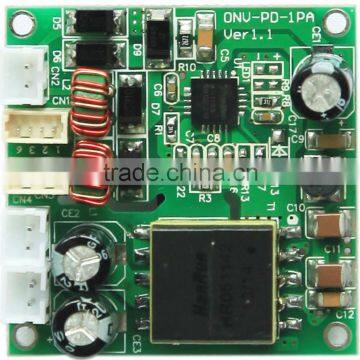

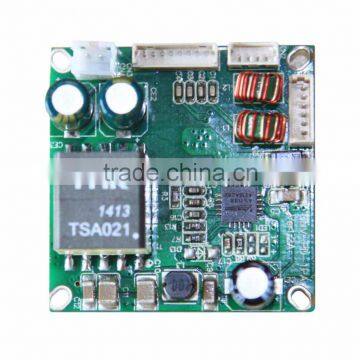

4.Standard modular design, embedded PCB design special for network camera
5. 2x 12V voltage output, can be customized 5V/9V/12VDC output
6. 1236 and 4578 compatible power supply
7. Low heat design, safe and reliable, high stability
Technical Specification
Product Name | 10/100M PoE Module 25.5W |
Product Model | PD3002-at |
Power Supply Type | Both 1/2(+),3/6(-) and 4/5(+),7/8(-) |
Performance | Special for IP camera, 100M bandwidth, 12V output, IEEE802.3at standard |
Connector | 6-Pin PoE input +4-Pin data output+2x 2-Pin 12V voltage output |
Protocol | IEEE 802.3 i 10 BASE-T |
IEEE 802.3 u 100 BASE-TX | |
IEEE 802.3 x Flow Control | |
IEEE 802.3 af Power over Ethernet | |
Rate | 10/100M |
LED Status | System working status |
Certifications | CE,FCC,ROHS |
Dimension | LxW: 38x38mm |
Weight | 0.016kg |
Working Temperature | Working temperature: 0°~ 55°C; Storage temperature: -20°~ 75°C; Working Humidity: 10%~90%, non-condensing |
Warranty | 1 Year Warranty |
Order information
Product Model: PD3002-at
Product Description: 10/100M PoE module, 12V/1A, IEEE 802.3af standard (15.4W)
Ordering Notes: The power supply type is end-span (1/2, 3/6 line pairs) and mid-span (4/5, 7/8 line pairs) can be customized.
Package list
Package List | 10/100M PoE Module 25.5W ( PD3002-at) |
User Guide | |
Warranty Card |
