10/100M EOC Ethernet Over Coax Converter With 1x BNC Port and POE

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ONV
Model Number	EOC1C1E

Product Description

10/100M EOC Ethernet over coax converter with 1x BNC Port and POE

Product features

1. Analog monitoring surveillance and HD network upgrading without replacing the coaxial cable
2. Long distance network extended and can be up to 1200 meters
3. Support multi-point access, one point to multi-point access
4. Plug and play, no need to set
5. Long distance centralized power supply.

6. 1 RJ45 ports support Power-over-Ethernet (PoE), meet PoE standard IEEE802.3af and IEEE802.3at, total PoE power is 60W

7. Transmission via coaxial cable, twisted pair, telephone line and other transmission media
8. There must be two or more transmissions, the same link(within the same physical coaxial or twisted pair) just set up the master device to support multiple devices work simultaneously

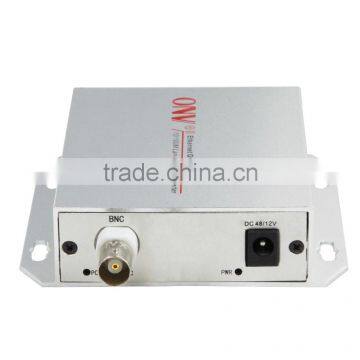

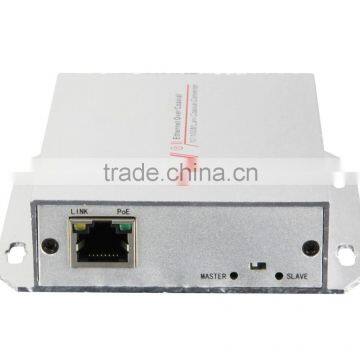

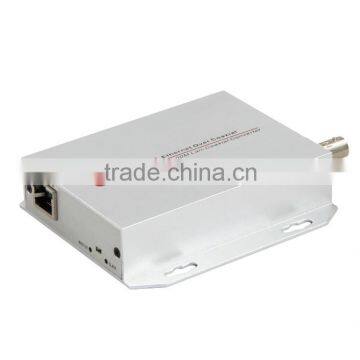

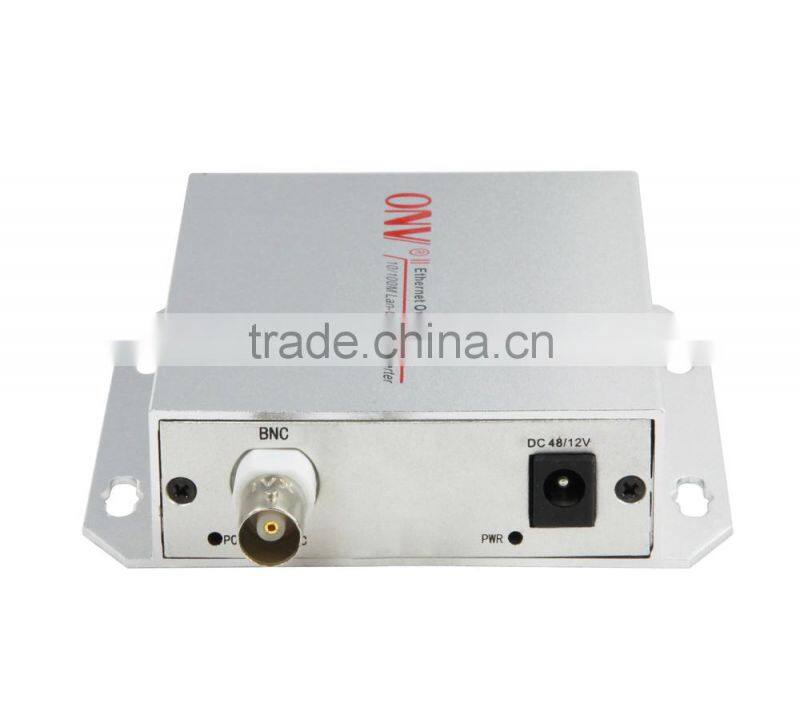

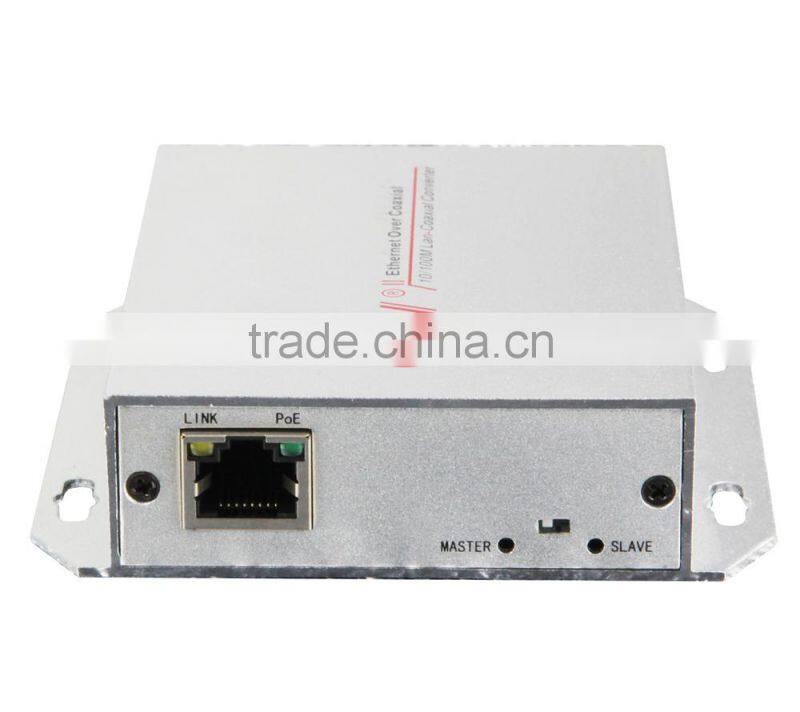

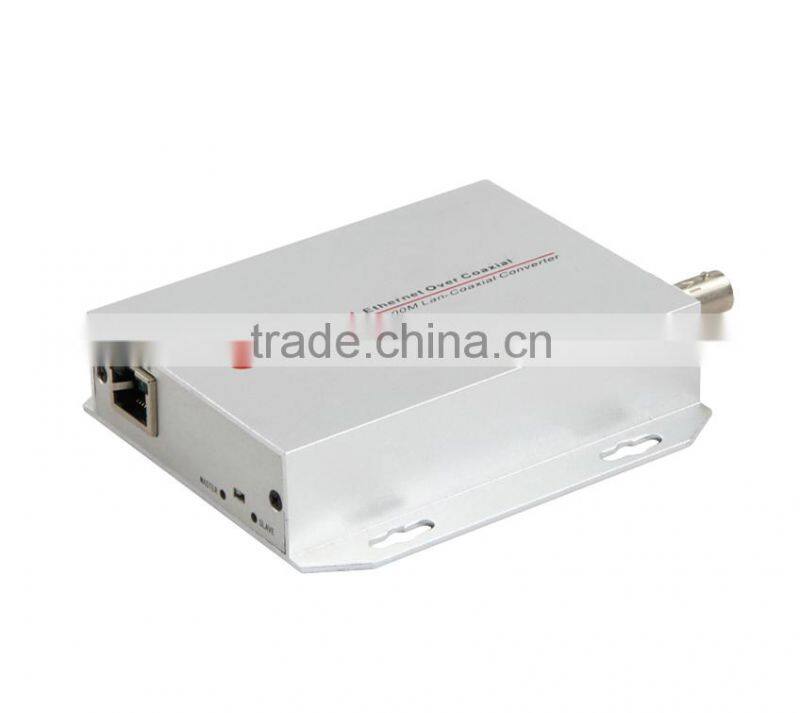

Detailed Images

Specification

Product Name	10/100M EOC Ethernet over coax converter with 1x BNC Port and POE
Product Model	EOC1C1E
Transmission Media	Coaxial Cable, Twisted Pair
Connector	1x BNC Port + 1x Ethernet Port(support PoE)
Transmission Range/Rate	Packing Lists 100Mbps EOC Converter (EOC1C1E) Power Adapter (Not included, need to order it separately) User Manual Warranty Card
Coaxial Input/Output	BNC port/ 75ohm
Led Indicator	Network cable connected– LED light is on; Video cable connected–LED light is flashing
Master/Slave Setting	Master mode solidified
Power Supply	48V DC,1.25A
Max Power	60W
Working Environment	Working Temperature:-20℃ ~40℃; Relative Humidity:5%~95%, no condensation
Dimension	87x117x26mm
Warranty	1 year
Others	1 PoE ports

Order Information

Product Model: EOC1C1E
Product Description: 100Mbps 1C1E Coaxial Cable EOC Converter, 1X 10/100M auto-sensing RJ45 port, 1X Coaxial Input/Output BNC port; Default transmission distance is 300 meters.

Accessories in the Package

Packing Lists	10/100M EOC Ethernet over coax converter with 1x BNC Port and POE EOC1C1E
	Power Adapter (Not included, need to order it separately)
	User Manual
	Guarantee Card

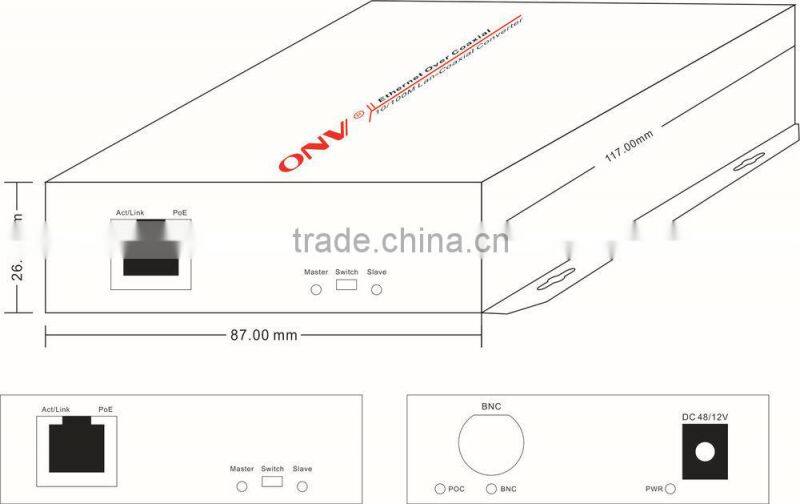

Dimension Display

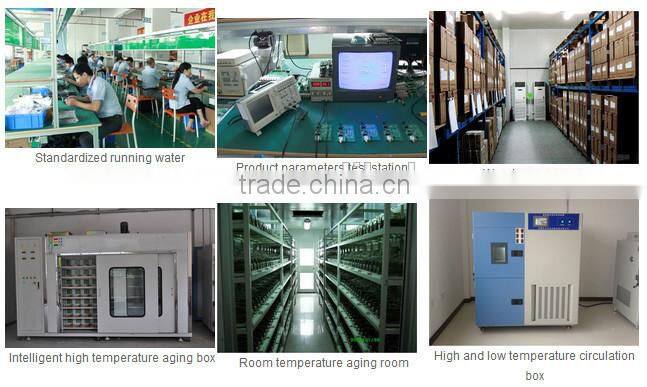

Factory and sale office

Shipment

Advantages

1. We have our own factory, and all our workers are very experienced ones.

2. Our products are with high quaity, and we have passe CE/FC/RoHS certificates.
3. We can offer very competitive price in the market.
4. We guarantee best after sales service
5. Our experts are always ready to help you when you met difficulties in actual application of our products.

More inforamtion, please feel free to contact us.

Contact: Joe Xie

Skype: onvsz01

Mobile : +86-13006653553
