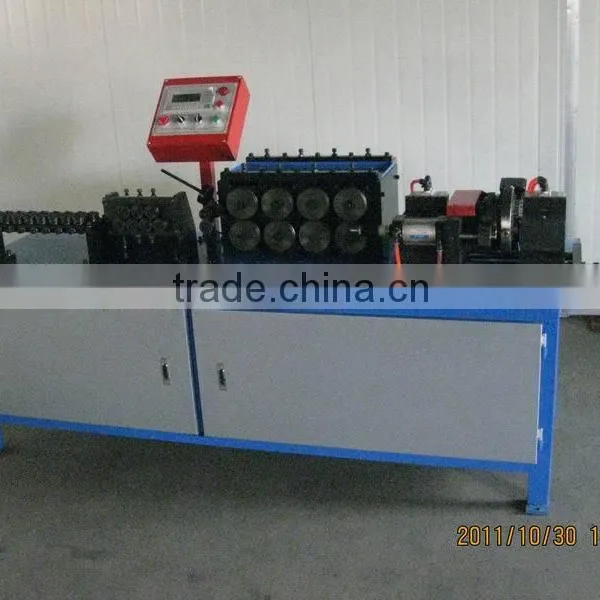

Welded Steel Pipe Striaightener and Cutter

Welded Steel Pipe Striaightener and Cutter photo-1
US$ 15000.00 - 20000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JSY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shaghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name JSY
Model Number BLXZBT-8
Voltage 380V
Rated Power 2.2kw
Dimension(L*W*H) 2300*1000*1350mm
Weight 520KG
Certification SGS
Warranty 1 Year Guarantee
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Welded steel pipe striaightener and cutter


Welded steel tube straightener machine
No.
Item
Detail
Memo
1
tube diameter range
OD 4.0—8.0mm
/
2
tube thickness range
0.50-0.80mm
/
3
tube straightening length range
100-50000mm
/
4
straightening working speed
>=45meter/minute
different as tube size
5
Material collection shelf
prepared by the user
/
6
length cutting tolerance
+/-1mm
/
7
power supply
380V/50Hz
3 phases 4 wires type
8
motor power
2.2KW, rev1440/rpm
Material feeding motor
0.75KW, rev1440/rpm
cutting motor
9
the pressure the air compressor
1MPa
/
10
dimension
2300X1000X1350mm
Not included the material collection shelf
11
weight
520KG
/
